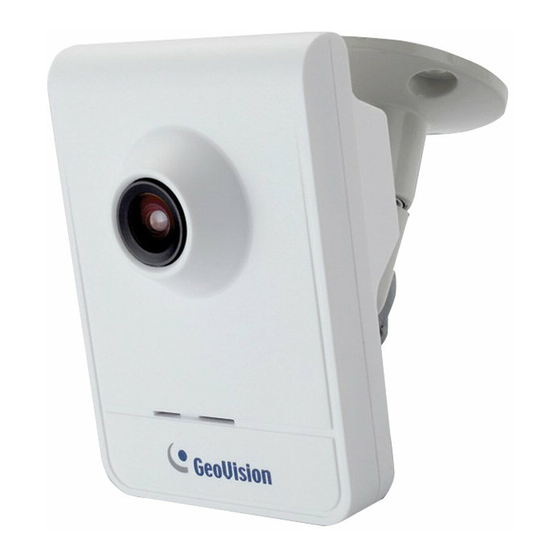

GeoVision GV-CBW120 Manual

Surveillance flexibility with wireless cube ip cameras
Hide thumbs Also See for GV-CBW120:
1
2
3
4
5

Advertisement

Table of Contents

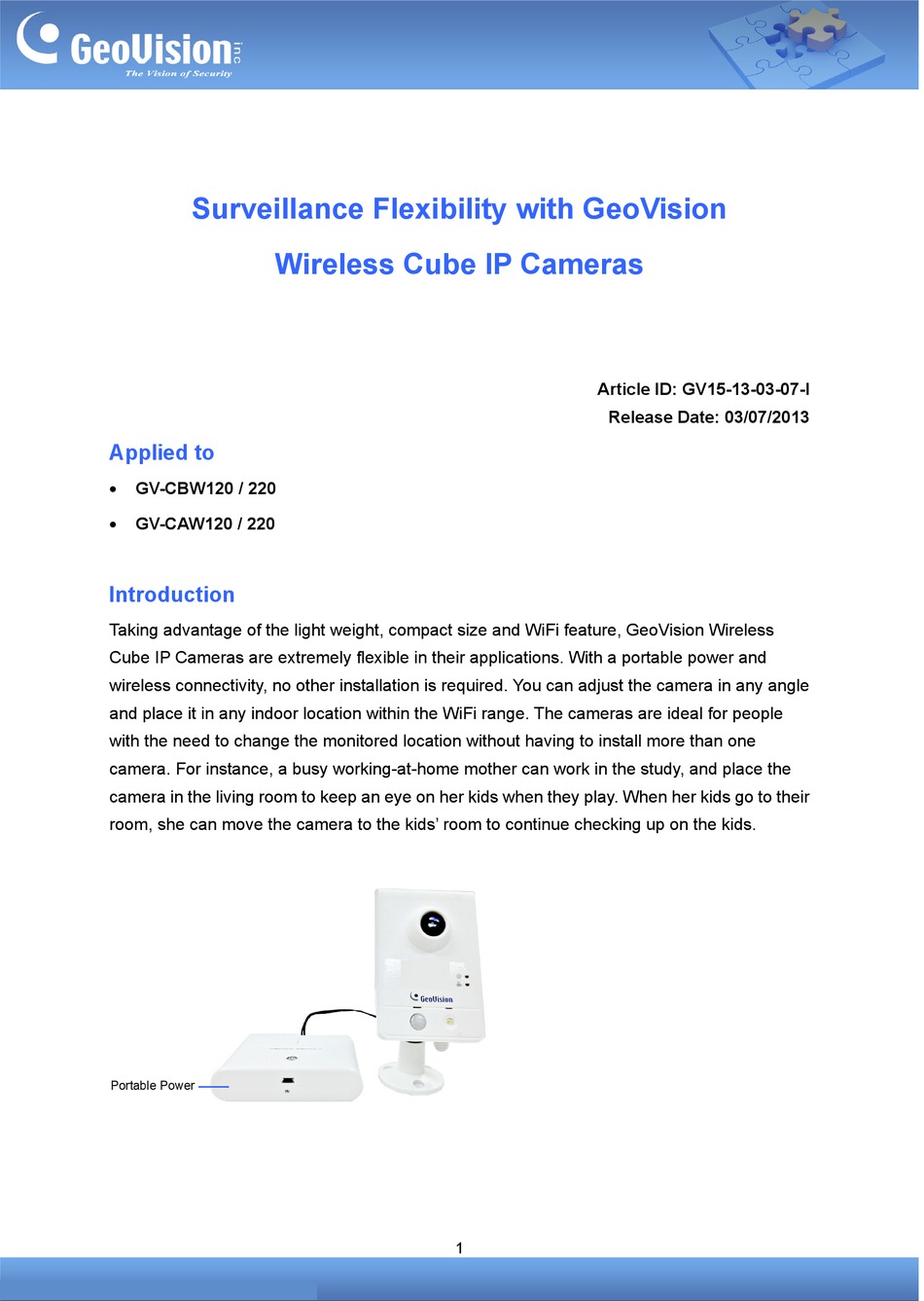

Surveillance Flexibility with GeoVision
Wireless Cube IP Cameras
Applied to
GV-CBW120 / 220
GV-CAW120 / 220

Introduction

Taking advantage of the light weight, compact size and WiFi feature, GeoVision Wireless
Cube IP Cameras are extremely flexible in their applications. With a portable power and
wireless connectivity, no other installation is required. You can adjust the camera in any angle
and place it in any indoor location within the WiFi range. The cameras are ideal for people
with the need to change the monitored location without having to install more than one
camera. For instance, a busy working-at-home mother can work in the study, and place the
camera in the living room to keep an eye on her kids when they play. When her kids go to their
room, she can move the camera to the kids' room to continue checking up on the kids.
Portable Power
Article ID: GV15-13-03-07-l
Release Date: 03/07/2013
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-CBW120 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GeoVision GV-CBW120

Summary of Contents for GeoVision GV-CBW120

  • Page 1 GV-CAW120 / 220 Introduction Taking advantage of the light weight, compact size and WiFi feature, GeoVision Wireless Cube IP Cameras are extremely flexible in their applications. With a portable power and wireless connectivity, no other installation is required. You can adjust the camera in any angle and place it in any indoor location within the WiFi range.
  • Page 2 Required Items  GV-CBW120 / 220, GV-CAW120 / 220  WiFi Router x 1 (not in standard package)  Standard network cable x 1 (not in standard package)  USB to 5 Volt DC Barrel Jack Power Cable x 1 (not in standard package) Power Cable should be outer 5.5 mm / inner 2.5 mm, as indicated below.

  • Page 3: Configuring The Wireless Connection

    1. To set up the wireless LAN for the first time, power on and connect a standard network cable to the camera. The status LED will be orange (GV-CBW120 / 220) or green (GV-CAW120 / 220) when the camera is ready for configuration.
  • Page 4 3. Configure the wireless settings. On the Web interface, select Network, select Wireless and Client Mode. This dialog box appears. Type the Network Name (SSID) or click the Access Point Survey button to search and select for the available Access Points/wireless stations. Select Ad-Hoc or Infrastructure for the Network type.
  • Page 5 4. Enable wireless LAN. A. On the Web interface, select Network and LAN. This page appears. B. Select Wireless for Optional Network Type. C. To use a dynamic IP address assigned by the DHCP server, select Dynamic IP address. To use a fixed IP address, select Static IP address and type the IP address information.

This manual is also suitable for:

Gv-cbw220Gv-caw220Gv-caw120
