Step 5: Connect the power
Connect the AC power cord to the rear of the VS-3232DN-EM, switch on its power and then switch on the power of connected
devices.
Safety Instructions
Caution: There are no operator serviceable parts inside the unit.
Warning: Use only the power cord that is supplied with the unit.
Warning:
Do not open the unit. High voltages can cause electrical shock! Servicing by qualified personnel only.
Warning: Disconnect the power and unplug the unit from the wall before installing.
See www.KramerAV.com for updated safety information.
Step 6: Set operation parameters
The VS-3232DN-EM does not have separate output and input
buttons. Instead, the front panel includes a numeric keypad.
When the unit is powered-on, the last matrix setup that was
used is loaded. Use either the setup recall (records a stored
configuration from a preset) or default setup recall (for quick
retrieval of a commonly used programmable default setup)
functions to retrieve other setups.
The LCD display can show only 13 out of the 32 available matrix
combinations at once. To view any of the matrix combinations
use the ◄ or the ► buttons on the front panel to shift the display
to the right or left.
Step 7: Operate via the front panel buttons, remote control, and via the:
RS-232 and Ethernet:
RS-232
Protocol 3000
Baud Rate:
Data Bits:
Stop Bits:
Parity:
Command Format:
P3000, to switch Input 4 to Output 2:
Ethernet
IP Address:
TCP Port #:
UDP Port #:
Concurrent TCP Connections:
Full Factory Reset
Front Panel:
EDID
EDID data is passed between Output 1 and Input 1

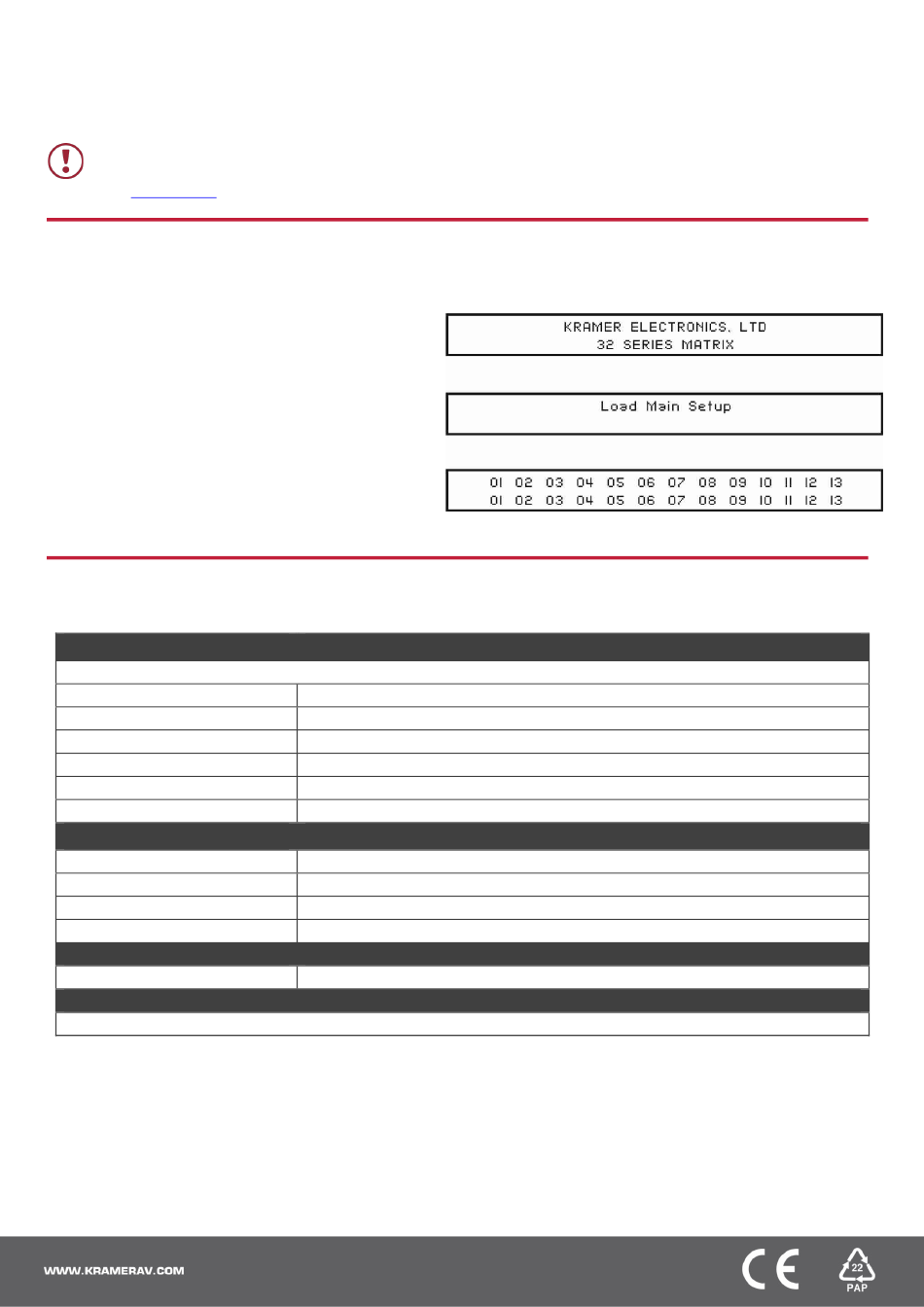

After switching on the power, the LCD display shows the following screens
in sequence:
9600
8
1
None
HEX
#AV 4>2
192.168.1.39
5000
50000
32
Press MENU twice. Select Total Matrix Reset > Factory default. Press TAKE twice.
