VS-1616DN-MD Quick Start Guide
This guide helps you install and use your VS-1616DN-MD for the first time.
Go to
Scan for full manual
firmware upgrades are available.
Step 1: Check what's in the box
VS-1616DN-MD 2x2 to 16x16 Modular Multi-
Format Digital Matrix Switcher
Kramer RC-IR3 infrared remote control transmitter
with batteries

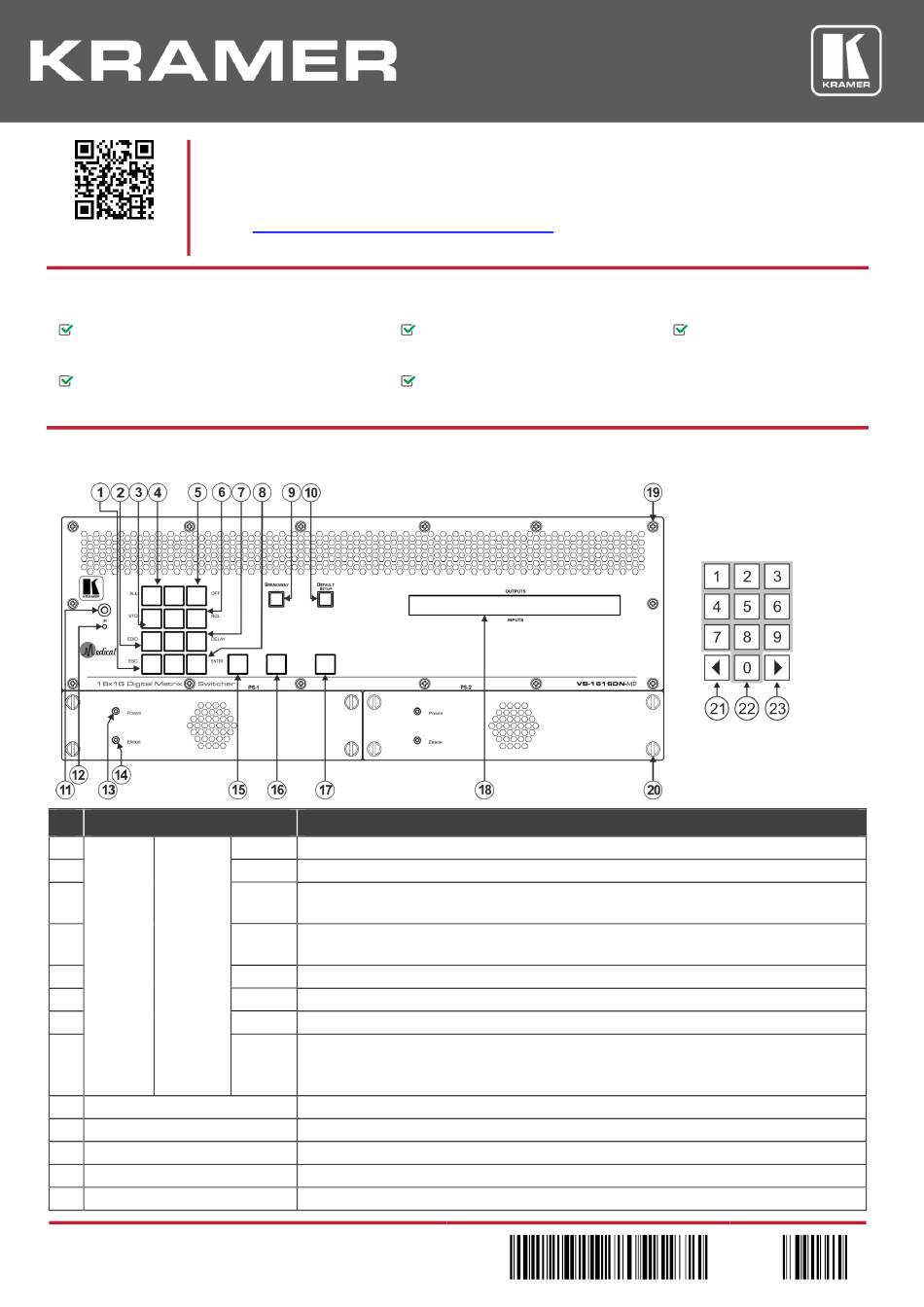

Step 2: Get to know your VS-1616DN-MD
# Feature
1
2
3
Double-
4
function Menu
Selector Button
5
Buttons Functions
6
Area
7
8
9 BREAKAWAY Button
10 DEFAULT SETUP Button
11 IR Receiver
12 IR LED
13 PS-1/PS-2 POWER LED
VS-1616DN-MD Quick Start (P/N: 2900-300662QS REV 1)
www.kramerav.com/downloads/VS-1616DN-MD
Function
ESC Press to exit the current operation.
EDID Press to assign EDID channels.
STO Press to store the current setup in a preset. After pressing the MENU button, this button lights
and is enabled.
ALL Press to connect an input to all outputs. After pressing the MENU button, this button lights and
is enabled.
OFF Press to turn off an output. After pressing the MENU button, this button lights and is enabled.
RCL Press to recall a preset. After pressing the MENU button, this button lights and is enabled.
DELAY Press to set the delay between confirming an action and the execution of the action.
ENTER Press to complete the input-output setup when using a one-digit number instead of two digits.
For example, to enter input 5, you can press either 05 or 5, ENTER.
Press to enter the options in a setup menu.
Press to exit a menu.
Press to recall the default setup.
Infrared remote control sensor.
Lights yellow when receiving commands from the IR remote control transmitter.
Lights green when power supply is active. Briefly remains lit after powering off the device.
to download the latest user manual and check if
1 Set of rack ears (attached)
2 Power cords
P/N:
2 9 0 0 - 3 0 0 6 6 2 QS
1 Quick start guide
Rev: 1
