Kramer VS-1616D User Manual

16x16 digital matrix switcher
Hide thumbs Also See for VS-1616D:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Kramer Electronics, Ltd.
USER MANUAL
Model:
VS-1616D
16x16 Digital Matrix Switcher

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS-1616D and is the answer not in the manual?

Questions and answers

Related Manuals for Kramer VS-1616D

Summary of Contents for Kramer VS-1616D

  • Page 1 Kramer Electronics, Ltd. USER MANUAL Model: VS-1616D 16x16 Digital Matrix Switcher...

  • Page 2: Table Of Contents

    About the Power Connect™ Feature About Fast Switching About HDBaseT™ Technology Recycling Kramer Products Defining the VS-1616D 16x16 Digital Matrix Switcher Using the IR Transmitter Installing the VS-1616D in a Rack Connecting the VS-1616D 16x16 Digital Matrix Switcher Port Numbering 6.1.1...
  • Page 3 10.4.1 Testing the Projector Output 10.4.2 Testing the Output Signal Path to the Projector 10.4.3 Testing the Input and Output Signal Path to the Projector I/O Card Hardware Installation Instructions Upgrading the VS-1616D Firmware Technical Specifications Default Communication Parameters Factory Default EDID 15.1...
  • Page 4 Figures Figure 1: VS-1616D 16x16 Digital Matrix Switcher Front Panel Figure 2: VS-1616D Front Panel Numeric Keypad Figure 3: VS-1616D 16x16 Digital Matrix Switcher Rear Panel Showing DVI cards Figure 4: Connecting the VS-1616D Figure 5: Sample Port Numbering Figure 6: EDID Numbering Assignment...

  • Page 5: Introduction

    Introduction Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded...

  • Page 6: Getting Started

     Unpack the equipment carefully and save the original box and packaging materials for possible future shipment  Review the contents of this user manual 2.1 Quick Start The following quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 7 Getting Started...

  • Page 8: Overview

    Overview Overview The Kramer VS-1616D is a high performance matrix switcher chassis that supports up to 16 x 16 ports for various signals (depending on the type of cards installed). It features a very high bandwidth of up to 3.2Gbps (for the chassis only, effective bandwidth of the system depends on the I/O cards) that ensures transparent performance even in the most critical applications.

  • Page 9: Recommendations For Best Performance

    1 The VS-1616D is a sophisticated device but has been designed to be as simple as possible to operate. Due to space limitations on the front panel 32 input/output selector buttons are instead substituted by a keypad. For details of how to route inputs to outputs, see...

  • Page 10: Shielded Twisted Pair/Unshielded Twisted Pair

    CAT 6 and CAT 7a cables. 3.2 About the Power Connect™ Feature The Power Connect™ feature here means that the VS-1616D can supply power to the TP transmitters and receivers (for example, the PT-573 and PT-574).

  • Page 11: Recycling Kramer Products

    Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

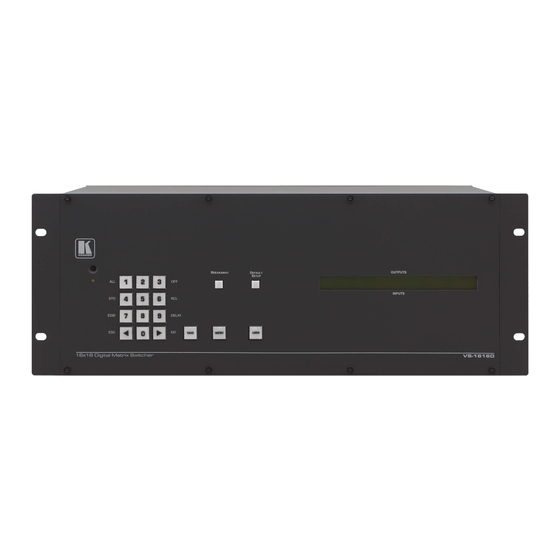

  • Page 12: Figure 1: Vs-1616D 16X16 Digital Matrix Switcher Front Panel

    Defining the VS-1616D 16x16 Digital Matrix Switcher Figure 1: VS-1616D 16x16 Digital Matrix Switcher Front Panel Note: Buttons 14, 15 and 16 function as the TAKE, MENU and LOCK buttons respectively KRAMER: SIMPLE CREATIVE TECHNOLOGY...

  • Page 13: Figure 2: Vs-1616D Front Panel Numeric Keypad

    Defining the VS-1616D 16x16 Digital Matrix Switcher Table 1: VS-1616D 16x16 Digital Matrix Switcher Front Panel Features Feature Function Press to exit the current operation EDID Press to assign EDID channels Press to store the current setup in a preset...

  • Page 14: Figure 3: Vs-1616D 16X16 Digital Matrix Switcher Rear Panel Showing Dvi Cards

    Defining the VS-1616D 16x16 Digital Matrix Switcher Figure 3 Table 3 define the rear panel of the VS-1616D showing DVI cards installed as an example. Figure 3: VS-1616D 16x16 Digital Matrix Switcher Rear Panel Showing DVI cards KRAMER: SIMPLE CREATIVE TECHNOLOGY...

  • Page 15: Using The Ir Transmitter

    Defining the VS-1616D 16x16 Digital Matrix Switcher Table 3: VS-1616D 16x16 Digital Matrix Switcher Rear Panel Features Feature Function AC Mains Power Module Fuse holder and power cord socket. Connect to the AC mains supply RS-232 9-pin D-sub Port Connects to the remote operation PC or remote controller Section ‎...

  • Page 16: Installing The Vs-1616D In A Rack

    Installing the VS-1616D in a Rack Installing the VS-1616D in a Rack This section provides instruction on rack mounting the VS-1616D. KRAMER: SIMPLE CREATIVE TECHNOLOGY...

  • Page 17: Connecting The Vs-1616D 16X16 Digital Matrix Switcher

    3. If required, connect a PC or remote controller to the RS-232 port (see Section 6.3) and/or the Ethernet port (see Section 6.4). 1 Switch off the power for each device before connecting it to your VS-1616D 2 In this example only two inputs and two outputs are connected...

  • Page 18: Port Numbering

    5. If necessary, review and set the system configuration using the Menu (see Section Note: Given an input signal that is HDCP encoded, the VS-1616D will output a signal only if the output port to which it is switched supports HDCP.

  • Page 19: Edid Numbering Examples

    From IN 8 None (error message displayed) Note: AV data flow is: source > VS-1616D > display. EDID information flow is: display > VS-1616D > source, which means that the EDID input is the display side and the EDID output is the AV source side. This is the reverse of the AV data flow direction.

  • Page 20: Connecting To The Vs-1616D Via

    To connect to the VS-1616D via RS-232:  Connect the RS-232 9-pin D-sub rear panel port on the VS-1616D unit via a 9-wire straight cable (only pin 2 to pin 2, pin 3 to pin 3, and pin 5 to pin 5 need to be connected) to the RS-232 9-pin D-sub port on your PC 6.4 Connecting to the VS-1616D via Ethernet...

  • Page 21: Figure 8: Local Area Connection Properties Window

    Connecting the VS-1616D 16x16 Digital Matrix Switcher 3. Highlight the network adapter you want to use to connect to the device and click Change settings of this connection. The Local Area Connection Properties window for the selected network adapter appears as shown in...

  • Page 22: Figure 9: Internet Protocol Version 4 Properties Window

    Connecting the VS-1616D 16x16 Digital Matrix Switcher Figure 9: Internet Protocol Version 4 Properties Window Figure 10: Internet Protocol Version 6 Properties Window KRAMER: SIMPLE CREATIVE TECHNOLOGY...

  • Page 23: Connecting The Ethernet Port Via A Network Hub Or Switch

    7. Click OK. 8. Click Close. 6.4.2 Connecting the Ethernet Port via a Network Hub or Switch You can connect the Ethernet port of the VS-1616D to the Ethernet port on a network hub or using a straight-through cable with RJ-45 connectors.

  • Page 24: Operating Your Video Matrix Switcher

    Figure 12: Default Startup Status Display Sequence The VS-1616D does not have separate output and input buttons. Instead, the front panel includes a numeric keypad within the Selector Buttons area . This numeric keypad lets you enter both the output and input numbers as well as various numeric configuration values.

  • Page 25: Viewing The Display

    7.2 Using the Selector Buttons For numbers between 1 and 9, the VS-1616D can handle two digit numbers as well as single digit numbers. When entering a single digit number (for example 5), you can either press 0 followed by 5, or 5 followed by ENT.

  • Page 26: Confirming Actions

    2. Press the flashing TAKE button to confirm the action. The action is confirmed and the TAKE button lights. 1 For all actions except storing/recalling 2 Failure to press the TAKE button within a few seconds results in the action timing out automatically KRAMER: SIMPLE CREATIVE TECHNOLOGY...

  • Page 27: Switching Actions

    Operating Your Video Matrix Switcher 7.4 Switching Actions This section describes how to:  Switch one input to one output (see Section 7.4.1)  Switch several inputs to several outputs (see Section 7.4.2)  Turn off several outputs (see Section 7.4.3) 7.4.1 Switching one Input to one Output To switch one input to one output:...

  • Page 28: Turning An Output Off

    1 In this example, input 9 is set to switch to output 6 and input 5 is set to switch to output 7 KRAMER: SIMPLE CREATIVE TECHNOLOGY...

  • Page 29: Locking The Front Panel Buttons

    The front panel buttons are unlocked Using the Configuration Menus The configuration menus let you configure the VS-1616D to best suit your needs. There are two configuration menus:  Setup Menu—those that are accessed on a regular basis (for example, storing setups and setting the delay), see Section 8.1...

  • Page 30: Figure 13: Menu Tree

     At any point in the Menu, only buttons that are active light or flash  All of the procedures in this section assume that you are starting the procedure from the standard, operational output/input display KRAMER: SIMPLE CREATIVE TECHNOLOGY...

  • Page 31: Using The Setup Menu

    Using the Configuration Menus 8.1 Using the Setup Menu The Setup Menu provides access to settings that are regularly changed and comprises the following options:  1: inXX=>ALL, switching one input to all outputs (see Section 8.1.1)  3: outXX=OFF, turning off an output (see Section 8.1.2) ...

  • Page 32: Setup Menu-7: Edid, Assignment To An Input

    8.1.3 Setup Menu—7: EDID, Assignment to an Input This option assigns an EDID to between one and eight inputs in non-volatile storage. More than eight EDID assignments must be assigned in multiple batches. Each input on the VS-1616D has a factory default EDID loaded (see Section 15).

  • Page 33: Setup Menu-9: Delay, Setting For An Output

    Using the Configuration Menus To view the EDID assignments: 1. Press MENU. The Setup Menu options are displayed. 2. Press 7 (EDID) on the numeric keypad (see Figure The following is displayed: SETUP EDID ENTER to View EDID and Set EDID 3.

  • Page 34: Setup Menu-6: Recall Setup Xx, Recalling A Preset

    Wait ….. After a few seconds, the following is displayed on the right hand side: CONFIRM RECALL <= 02 The TAKE button flashes. 4. Press TAKE. The preset is recalled. The display reverts to the output/input display. KRAMER: SIMPLE CREATIVE TECHNOLOGY...

  • Page 35: Using The Config Menu

    Using the Configuration Menus 8.2 Using the Config Menu The Config Menu provides access to configuration settings that are not regularly changed and comprises the following options:  Input signal detection display (Section 8.2.1)  Input port parameter setting (Section 8.2.4) ...

  • Page 36: Config Menu-Input Signal Detection Display

    MENU to view setup ENT to change them 2. Press MENU until a display is shown similar to the following: 01 02 03 04 05 06 07 08 09 10 11 SET: X KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 37 Using the Configuration Menus X indicates that there are no modifiable parameters for the associated port and 0 indicates that there are modifiable parameters for the associated port. 3. Press TAKE to enter the list of ports. The cursor flashes on a selected port. 4.
  • Page 38 Enables range extender. Off for distances of up to 100m at 1080p @60Hz @36bpp; On for distances of up to 150m at 1080p @60Hz @24bpp *0:ON, 1:OFF Note: Using Kramer high quality cables such as the BC-HDKat6a can increase the range by approximately 30% HDBT Lite plus IR and RS-232 Input Card...
  • Page 39 Using the Configuration Menus HDMI plus S/PDIF Audio Input Card Parameter Description Default Reset Input Re-power: power cycles the port Re-power Factory: performs a factory reset to default values of the port HDCP Turn HDCP on and off *0=EN, 1=DIS Audio Select Auto: audio signal selection is controlled by the presence or absence of a Auto...

  • Page 40: Config Menu-Output Load Detection Display

    To set parameters for a port: 1. Press MENU twice. The following message is displayed: start configuration menu MENU to view setup ENT to change them KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 41 Using the Configuration Menus 2. Press MENU until a display is shown similar to the following: OUT: 01 02 03 04 05 06 07 08 09 10 11 SET: X indicates that there are no modifiable parameters for the associated port and 0 indicates that there are modifiable parameters for the associated port.
  • Page 42 8 bit—Limit the color depth to 8 bits Switch Speed When switching between different sources the switching time can be Normal reduced by setting the fast switch level (Ex-fast Switch, Fast Switch or Switch Normal Switch) by reducing color depth to 8-bits KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 43 @60Hz @36bpp; On for distances of up to 150m at 1080p @60Hz @24bpp *0:ON, 1:OFF Note: Using Kramer high quality cables such as the BC-HDKat6a can increase the range by approximately 30% HDBT Lite plus IR and RS-232 Output Card...
  • Page 44 MUTE: mutes the audio output Non-MUTE Non-MUTE: unmutes the audio output Audio Mix-Mode Close: Downscales the audio channels from 7.1 to 2 to the 3.5mm mini Close jack analog audio output Open: Audio channels are not modified KRAMER: SIMPLE CREATIVE TECHNOLOGY...

  • Page 45: Config Menu-Interface Configuration

    Using the Configuration Menus HDMI plus S/PDIF Audio Output Card Parameter Description Default Reset Output Re-power: power cycle the port Re-power Factory default: perform a factory reset to default values of the port HDMI Sets the output signal format (Follow input, HDMI, DVI). Follow Display—the output is set automatically based on the EDID of the connected display.

  • Page 46: Config Menu-Interface Reply Configuration

    A message is displayed indicating the new status of the Reply configuration. After a few seconds the next option on the Config Menu is displayed. 8.2.7 Config Menu—Protocol Switching The VS-1616D supports Kramer Protocol 3000 and Protocol 2000. To switch from Protocol 3000 (default) to Protocol 2000: 1. Press MENU twice.

  • Page 47: Config Menu-Store Default Setup

    1:KRAMER-2000 2:KRAMER-3000 4. Press 1 to switch to Protocol 2000. The following is displayed: Set PROTOCOL to KRAMER-2000? press TAKE to confirm 5. Press TAKE to confirm the action. A message is displayed indicating the new Protocol status. After a few seconds the next option on the Config Menu is displayed.

  • Page 48: Config Menu-Total Matrix Reset

    4. Press 1 to turn off all outputs or 2 to perform a factory reset of all options. Caution: Selecting option 2 to perform a factory default reset clears all setups, options and configuration. 5. Press TAKE and wait a few seconds. The following is displayed: KRAMER: SIMPLE CREATIVE TECHNOLOGY...

  • Page 49: Config Menu-Display Firmware Versions

    Configuring the Number of Installed Input and Output Ports After installing or removing a module you need to set the number of input and output ports so that the VS-1616D recognizes the new configuration. Refer to Section 6.1 for an explanation of port numbering before setting the number of input and output ports.

  • Page 50: Installing And Using The Test Module To Troubleshoot Video Problems

    10 Installing and Using the Test Module to Troubleshoot Video Problems The VS-1616D includes a test module which can act as a video signal generator and can be used to diagnose video issues in an operating environment. The test module must be installed in the configuration before it can be used. When installing the test module, the number of configured inputs and outputs must be increased by one.

  • Page 51: Setting The Resolution Of The Generated Video

    Installing and Using the Test Module to Troubleshoot Video Problems 5. Increase the number of configured inputs and outputs by one (see Section 6. Power cycle the device. The test module is now installed and may be used. 10.2 Setting the Resolution of the Generated Video The test module generates a range of both PC and HD resolutions which are selected by a combination of DIP-switches and an on-board jumper (labeled B3).

  • Page 52: Setting The Pattern Of The Generated Video

    The test module may be used in various ways to isolate video problems. The following examples are based on the signal paths shown in Figure 15 and a VS-1616D device installed as follows:  16 inputs and 16 outputs  The test module is installed and configured (see Section 10.1)

  • Page 53: Testing The Output Signal Path To The Projector

    7. Verify that the projector output is as expected. 11 I/O Card Hardware Installation Instructions The VS-1616D I/O cards mount in one of the 16 slots on the rear of the VS-1616D chassis. Slots are numbered from left to right and must be filled consecutively from left to right, without leaving empty slots.

  • Page 54: Figure 16: Inserting The Card Into A Slot

    Figure 16: Inserting the Card into a Slot To install an I/O card as shown in Figure 1. Power off the VS-1616D and all devices connected to it. 2. Using a Phillips screwdriver, loosen the screws at the top and bottom of the blanking plate (see Figure 17).

  • Page 55: Upgrading The Vs-1616D Firmware

    8. Using a Phillips screwdriver, tighten the retaining screws at the top and bottom of the card to secure it to the chassis. 9. Power on the VS-1616D and follow the procedure to configure the new card (see Section 10.

  • Page 56: Technical Specifications

    Technical Specifications 13 Technical Specifications Table 8 lists the technical specifications of the VS-1616D. Table 8: Technical Specifications of the 16x16 Digital Matrix Switcher BANDWIDTH: Supports up to 3.2Gbps bandwidth per channel (limited by the card installed) MAX RESOLUTION: Up to UXGA; 1080p, 1920x1200...

  • Page 57: Table 9: Technical Specifications Of Vs-1616D Compatible Cards

    10-pin terminal block 2 VGA on 15-pin HD connectors 1 Multi-mode glass fiber cables with LC connections must be used, such as the Kramer C-4LC/4LC 2 Multi-mode glass fiber cables with SC connections must be used, such as the Kramer C-SC/SC/OM3...

  • Page 58: Default Communication Parameters

    Default Communication Parameters 14 Default Communication Parameters Table 10 lists the default communication parameters for the VS-1616D. Table 10: Default Communication Parameters for the VS-1616D EDID EDID data is passed between Output 1 and Input 1 RS-232 Protocol 2000/3000 Baud Rate:...

  • Page 59: Hdcp Input Card

    Factory Default EDID Preferred timing..Yes Native/preferred timing.. 1280x768p at 60Hz (4:3) Modeline...."1280x768" 79.500 1280 1344 1472 1664 768 771 778 798 +hsync +vsync Detailed timing #1..1920x1200p at 60Hz (16:10) Modeline...."1920x1200" 154.000 1920 1968 2000 2080 1200 1203 1209 1235 +hsync -vsync Standard timings supported 720 x 400p at 70Hz - IBM VGA 720 x 400p at 88Hz - IBM XGA2...
  • Page 60 NB: NTSC refresh rate = (Hz*1000)/1001 CE audio data (formats supported) LPCM 3-channel, 24-bits at 44/48 kHz CE speaker allocation data Channel configuration..3.0 Front left/right..Yes Front LFE....No Front center..... Yes Rear left/right..No Rear center....No KRAMER: SIMPLE CREATIVE TECHNOLOGY...

  • Page 61: Hdmi Input Card

    Factory Default EDID Front left/right center.. No Rear left/right center... No Rear LFE....No CE vendor specific data (VSDB) IEEE registration number. 0x000C03 CEC physical address..1.0.0.0 Maximum TMDS clock..165MHz Raw data 00,FF,FF,FF,FF,FF,FF,00,2E,4D,00,02,01,00,00,00,18,14,01,03,81,46,27,78,0A,D5,7C,A3,57,49,9C,25, 11,48,4B,FF,FF,80,81,C0,81,00,95,00,81,40,81,80,90,40,B3,00,A9,40,02,3A,80,18,71,38,2D,40,58,2C, 45,00,C4,8E,21,00,00,1E,28,3C,80,A0,70,B0,23,40,30,20,36,00,06,44,21,00,00,1A,00,00,00,FC,00,56, 53,2D,33,32,48,44,43,50,0A,20,20,20,00,00,00,FD,00,32,55,1F,5E,11,00,0A,20,20,20,20,20,20,01,F9, 02,03,1A,41,47,11,13,05,14,84,10,1F,23,0A,06,04,83,05,00,00,65,03,0C,00,10,00,8C,0A,D0,8A,20,E0, 2D,10,10,3E,96,00,58,C2,21,00,00,18,01,1D,80,18,71,1C,16,20,58,2C,25,00,C4,8E,21,00,00,9E,01,1D, 80,D0,72,1C,16,20,10,2C,25,80,C4,8E,21,00,00,9E,01,1D,00,72,51,D0,1E,20,6E,28,55,00,C4,8E,21,00, 00,1E,01,1D,00,BC,52,D0,1E,20,B8,28,55,40,C4,8E,21,00,00,1E,00,00,00,00,00,00,00,00,00,00,00,C0 15.3 HDMI Input Card Monitor...
  • Page 62 Rear left/right center... No Rear LFE....No CE vendor specific data (VSDB) IEEE registration number. 0x000C03 CEC physical address..1.0.0.0 Maximum TMDS clock..165MHz Raw data 00,FF,FF,FF,FF,FF,FF,00,2E,4D,00,02,01,00,00,00,0C,10,01,03,81,46,27,78,0A,D5,7C,A3,57,49,9C,25, 11,48,4B,FF,FF,80,8B,C0,81,00,95,00,81,40,81,80,90,40,B3,00,A9,40,0E,1F,00,80,51,00,1E,30,40,80, 37,00,6F,13,11,00,00,1E,28,3C,80,A0,70,B0,23,40,30,20,36,00,06,44,21,00,00,1A,00,00,00,FC,00,56, 53,2D,31,36,48,44,43,50,0A,20,20,20,00,00,00,FD,00,32,55,1F,5E,11,00,0A,20,20,20,20,20,20,01,4D, 02,03,1A,41,47,11,13,05,14,84,10,1F,23,0A,06,04,83,05,00,00,65,03,0C,00,10,00,8C,0A,D0,8A,20,E0, 2D,10,10,3E,96,00,58,C2,21,00,00,18,01,1D,80,18,71,1C,16,20,58,2C,25,00,C4,8E,21,00,00,9E,01,1D, 80,D0,72,1C,16,20,10,2C,25,80,C4,8E,21,00,00,9E,01,1D,00,72,51,D0,1E,20,6E,28,55,00,C4,8E,21,00, 00,1E,01,1D,00,BC,52,D0,1E,20,B8,28,55,40,C4,8E,21,00,00,1E,00,00,00,00,00,00,00,00,00,00,00,C0 Model name....VS-16HDCP Manufacturer..... KRM KRAMER: SIMPLE CREATIVE TECHNOLOGY...

  • Page 63: Hdmi Plus Audio Input Card

    Factory Default EDID Plug and Play ID..KRM0200 Serial number.... 1 Manufacture date..2010, ISO week 24 15.4 HDMI plus Audio Input Card Monitor Model name....VS-16H+AUD Manufacturer..... KMR Plug and Play ID..KMR0200 Serial number.... 1 Manufacture date..2012, ISO week 12 Filter driver....
  • Page 64 IEEE registration number. 0x000C03 CEC physical address..1.0.0.0 Maximum TMDS clock..165MHz Report information Date generated... 11/10/2013 Software revision..2.60.0.972 Data source....Real-time 0x0051 Operating system..5.1.2600.2.Service Pack 3 Raw data 00,FF,FF,FF,FF,FF,FF,00,2E,4D,00,02,01,00,00,00,0C,16,01,03,81,46,27,78,0A,D5,7C,A3,57,49,9C,25, 11,48,4B,FF,FF,80,8B,C0,81,00,95,00,81,40,81,80,90,40,B3,00,A9,40,01,1D,00,72,51,D0,1A,20,6E,28, 55,00,6F,13,11,00,00,1E,02,3A,80,18,71,38,2D,40,58,2C,45,00,06,44,21,00,00,1A,00,00,00,FC,00,56, 53,2D,31,36,48,2B,41,55,44,0A,20,20,00,00,00,FD,00,32,55,1F,5E,11,00,0A,20,20,20,20,20,20,01,80, 02,03,1A,71,47,11,13,05,14,84,10,1F,23,0A,06,04,83,05,00,00,65,03,0C,00,10,00,8C,0A,D0,8A,20,E0, 2D,10,10,3E,96,00,58,C2,21,00,00,18,01,1D,80,18,71,1C,16,20,58,2C,25,00,C4,8E,21,00,00,9E,01,1D, 80,D0,72,1C,16,20,10,2C,25,80,C4,8E,21,00,00,9E,01,1D,00,72,51,D0,1E,20,6E,28,55,00,C4,8E,21,00, 00,1E,01,1D,00,BC,52,D0,1E,20,B8,28,55,40,C4,8E,21,00,00,1E,00,00,00,00,00,00,00,00,00,00,00,90 KRAMER: SIMPLE CREATIVE TECHNOLOGY...

  • Page 65: Dvi Dual Channel Input Card

    Factory Default EDID 15.5 DVI Dual Channel Input Card Monitor Model name....VS-16DUAL Manufacturer..... KMR Plug and Play ID..KMR0200 Serial number.... 1 Manufacture date..2006, ISO week 12 Filter driver.... None ------------------------- EDID revision.... 1.3 Input signal type..Digital (DVI) Color bit depth..

  • Page 66: Dgkat Input Card

    Filter driver.... None ------------------------- EDID revision.... 1.3 Input signal type..Digital (DVI) Color bit depth..Undefined Display type..... RGB color Screen size....700 x 390 mm (31.5 in) Power management..Not supported Extension blocs..1 (CEA-EXT) ------------------------- KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 67 Factory Default EDID DDC/CI....n/a Color characteristics Default color space..Non-sRGB Display gamma.... 2.20 Red chromaticity..Rx 0.640 - Ry 0.341 Green chromaticity..Gx 0.286 - Gy 0.610 Blue chromaticity..Bx 0.146 - By 0.069 White point (default)..Wx 0.284 - Wy 0.293 Additional descriptors...

  • Page 68: Hdbaset Input Card

    White point (default)..Wx 0.284 - Wy 0.293 Additional descriptors... None Timing characteristics Horizontal scan range..31-94kHz Vertical scan range..50-85Hz Video bandwidth..170MHz CVT standard..... Not supported GTF standard..... Not supported Additional descriptors... None Preferred timing..Yes KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 69 Factory Default EDID Native/preferred timing.. 1280x720p at 60Hz Modeline...."1280x720" 74.250 1280 1390 1430 1650 720 725 730 746 +hsync -vsync Detailed timing #1..1920x1200p at 60Hz (16:10) Modeline...."1920x1200" 154.000 1920 1968 2000 2080 1200 1203 1209 1235 +hsync -vsync Standard timings supported 720 x 400p at 70Hz - IBM VGA 720 x 400p at 88Hz - IBM XGA2...

  • Page 70: Vga Input Card

    640 x 480p at 67Hz - Apple Mac II 640 x 480p at 72Hz - VESA 640 x 480p at 75Hz - VESA 800 x 600p at 56Hz - VESA 800 x 600p at 60Hz - VESA KRAMER: SIMPLE CREATIVE TECHNOLOGY...

  • Page 71: Communication Protocols

    11,48,4B,FF,FF,80,31,40,45,40,61,40,71,4F,81,8F,81,40,81,80,8B,C0,D6,09,80,A0,20,E0,2D,10,10,60, A2,00,04,03,00,00,00,18,02,3A,80,18,71,38,2D,40,58,2C,45,00,10,09,00,00,00,1E,00,00,00,FC,00,56, 47,41,2D,49,4E,32,2D,46,31,36,0A,20,48,3F,40,30,62,B0,32,40,40,C0,13,00,6F,13,11,00,00,1E,00,0C 16 Communication Protocols 16.1 Protocol 3000 The VS-1616D can be operated using serial commands from a PC, remote controller or touch screen using the Kramer Protocol 3000. This section describes the:  Section ‎ 1 Kramer Protocol 3000 syntax (see 6.1.1)

  • Page 72: Device Message Format

    Query sign '?' follows some commands to define a query request. Message closing character CR – For host messages; carriage return (ASCII 13) CRLF – For device messages; carriage return (ASCII 13) + line-feed (ASCII 10) KRAMER: SIMPLE CREATIVE TECHNOLOGY...

  • Page 73: Entering Commands

    You can directly enter all commands using a terminal with ASCII communications software, such as HyperTerminal, Hercules, etc. Connect the terminal to the serial or Ethernet port on the Kramer device. To enter CR press the Enter key. ( LF is also sent but is ignored by command parser).

  • Page 74: Table Of Protocol 3000 Commands

    Read video connections from saved preset RESET Reset device SIGNAL Valid / Invalid input Read device serial number VERSION? Read device firmware version Switch Video only Note: Not every command listed by the Help command is relevant to every matrix configuration. KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 75 Communication Protocols Command - Command Type - System-mandatory Command Name Permission Transparency Set: End User Public Get: Description Syntax Set: Protocol handshaking #␍ Get: Response ~nn@␠OK␍␊ Parameters Response Triggers Notes Use to validate the Protocol 3000 connection and get the machine number Command - BUILD-DATE Command Type - System-mandatory...
  • Page 76 Get command list or help for specific Get: 1. #HELP␍ command 2. #HELP␠command_name␍ Response 1. Multi-line: ~nn@Device available protocol 3000 commands:␍␊command,␠command…␍␊ To get help for command use: HELP (COMMAND_NAME)␍␊ 2. Multi-line: ~nn@HELP␠command:␍␊description␍␊USAGE:usage ␍␊ Parameters Response Triggers Notes KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 77 Communication Protocols Command - MODEL? Command Type - System-mandatory Command Name Permission Transparency Set: MODEL? Get: End User Public Description Syntax Set: Get: Get device model #MODEL?␍ Response ~nn@MODEL␠model_name␍␊ Parameters model_name - String of up to 19 printable ASCII chars Response Triggers Notes Command -...
  • Page 78 Description Syntax Set: Get: Get device serial number #SN?␍ Response ~nn@SN␠serial_number␍␊ Parameters serial_number - 11 decimal digits, factory assigned Response Triggers Notes For new products with 14 digit serial numbers, use only the last 11 digits KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 79 Communication Protocols Command - VERSION? Command Type - System-mandatory Command Name Permission Transparency Set: VERSION? Get: End User Public Description Syntax Set: Get: Get firmware version number #VERSION?␍ Response ~nn@VERSION␠firmware_version␍␊ Parameters firmware_version - XX.XX.XXXX where the digit groups are: major.minor.build version Response Triggers Notes Command -...
  • Page 80 - String of printable ASCII chars (up to 19 chars) Response Triggers Notes Used where a single firmware file is adaptable for many devices, but the user needs to know (by protocol) which specific model is used KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 81 Communication Protocols Command - FCT-SN Command Type - System-mandatory (Secret) Command Name Permission Transparency FCT-SN Set: Factory Internal Get: Description Syntax Set: Set serial number #FCT-SN␠serial_number␍ Get: Response ~nn@FCT-SN␠serial_number␠OK␍␊ Parameters serial_number - 11 decimal digits Response Triggers Notes For new products with 14 digit serial numbers, use only the last 11 digits Command - GEDID Command Type - System...
  • Page 82 INFO-IO? End User Public Description Syntax Set: Get: Get in/out count #INFO-IO?␍ Response ~nn@INFO-IO?␠IN␠ inputs_count, OUT␠outputs_count␍␊ Parameters inputs_count - number of inputs in the unit outputs_count - number of outputs in the unit Response Triggers Notes KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 83 Communication Protocols Command - INFO-PRST? Command Type - System Command Name Permission Transparency Set: INFO-PRST? Get: End User Public Description Syntax Set: Get: Get maximum preset count #INFO-PRST?␍ Response ~nn@INFO-PRST?␠VID␠preset_video_count, AUD␠preset_audio_count␍␊ Parameters preset_video_count - maximum number of video presets in the unit preset_audio_count - maximum number of audio presets in the unit Response Triggers Notes...
  • Page 84 ~nn@LDEDID␠ERR01␍␊ and returns to the regular protocol mode. If the unit received data that is not a correct packet, it sends the corresponding error and returns to the regular protocol mode. KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 85 Communication Protocols Command - LDFW System - Packets Command Name Permission Transparency LDFW Set: Internal SW Public Get: Description Syntax Step 1: #LDFW␠size␍ Set: Load new firmware file Step 2: If ready was received, send FIRMWARE_DATA Get: Response Response 1: ~nn@LDFW␠size␠READY␍␊ or ~nn@LDFW␠ERRnn␍␊ Response 2: ~nn@LDFW␠size␠OK␍␊...
  • Page 86 Set: Switch to protocol 2000 #P2000␍ Get: Response ~nn@P2000␠OK␍␊ Parameters Response Triggers Notes Available only for devices that support Protocol 2000 Protocol 2000 has a command to switch back to an ASCII protocol like Protocol 3000 KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 87 Communication Protocols Command - PRST-LST? Command Type - System Command Name Permission Transparency Set: Get: PRST-LST? End User Public Description Syntax Set: Get: Get saved preset list #PRST-LST?␍ Response ~nn@PRST-LST␠ preset, preset, … ␍␊ Parameters preset - preset number Response Triggers Notes In most units, video and audio presets with the same number are stored and recalled together by commands #PRST-STO and #PRST-RCL...
  • Page 88 Get: Response ~nn@PRST-STO␠ preset␍␊ Parameters preset - preset number Response Triggers Notes In most units, video and audio presets with the same number are stored and recalled together by commands #PRST-STO and #PRST-RCL KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 89 Communication Protocols Command - PRST-VID? Command Type - System Command Name Permission Transparency Set: PRST-VID? Get: End User Public Description Syntax Set: #PRST-VID?␠preset, out␍ Get video connections from saved Get: preset #PRST-VID?␠preset, * ␍ Response ~nn@PRST-VID␠preset, in>out ␍␊ ~nn@PRST-VID␠preset, in>1, in>2, in>3,‎…‎␍␊ Parameters preset - preset number n - input number or '0' if output disconnected...
  • Page 90 Response Triggers After execution, a response is sent to the com port from which the Get was received Response is sent after every change in input signal status ON to OFF, or OFF to ON Notes KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 91 Communication Protocols Command - Command Type - Switch Command Name Permission Transparency Set: End User Public VID? Get: End User Public Description Syntax Set: Set video switch state #VID␠in>out, in>out,…␍ #VID?␠out␍ Get: Get video switch state #VID?␠ * ␍ Response Set: ~nn@VID␠in>out ␍␊...

  • Page 92: Parameters

    16.1.9 Parameters 16.1.9.1 On/Off Number Value 16.1.9.2 Color Space Number Value YCbCr 4:2:2 YCbCr 4:4:4 16.1.9.3 Stage Number Value Input Output (Reserved) (Reserved) 16.1.9.4 Signal Type Number Value No signal HDMI DisplayPort HDBaseT Follow output DGKat KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 93 Communication Protocols 16.1.9.5 Video Resolutions VIC Number Resolution No Signal (for input) / Native - EDID (for output) 640x480p @59.94Hz/60Hz 720x480p @59.94Hz/60Hz 720x480p @59.94Hz/60Hz 1280x720p @59.94Hz/60Hz 1920x1080i @59.94Hz/60Hz 720(1440)x480i @59.94Hz/60Hz 720(1440)x480i @59.94Hz/60Hz 720(1440)x240p @59.94Hz/60Hz 720(1440)x240p @59.94Hz/60Hz 2880x480i @59.94Hz/60Hz 2880x480i @59.94Hz/60Hz 2880x240p @59.94Hz/60Hz 2880x240p @59.94Hz/60Hz 1440x480p @59.94Hz/60Hz...
  • Page 94 1280x720p @25Hz 1280x720p @29.97Hz/30Hz 1920x1080p @119.88/120Hz 1920x1080p @100Hz 65-100 (Reserved) Custom resolution 1 Custom resolution 2 Custom resolution 3 Custom resolution 4 Custom resolution 5 104-254 (Reserved) 16.1.9.6 Genlock Types Number Value Free run Digital Analog KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 95 Communication Protocols 16.1.9.7 Custom Resolution Parameters Number Value Width Height HTotal VTotal HSync width HSync back porch VSync width VSync back porch Frame rate Interlaced (0)/Progressive (1) 16.1.9.8 Audio Signal Types Number Value No info AC-3 MPEG1 MPEG2 AAC LC ATRAC E-AC-3 DTS-HD...
  • Page 96 Number Value Signal or sink is not valid Signal or sink is valid Sink and EDID is valid 16.1.9.14 Ethernet Port Types Number Value 16.1.9.15 HDCP Types Number Value HDCP Off HDCP On Follow input Mirror‎output‎(“MAC‎mode”) KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 97 Communication Protocols 16.1.9.16 Parity Types Number Value Even Mark Space 16.1.9.17 Serial Types Number Value...

  • Page 98: Protocol 2000

    IN 1 IN 2 IN 3 IN 4 IN 5 IN 6 IN 7 IN 8 IN 9 IN 10 IN 11 IN 12 IN 13 1 Full details are available on our Web site at http://www.kramerelectronics.com KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 99 Communication Protocols IN 14 IN 15 IN 16...
  • Page 101 For the latest information on our products and a list of Kramer distributors visit www.kramerelectronics.com where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
