HDMI® or Component Standalone Capture Device | 1080p Actual product may vary from photos User Manual SKU#: USB2HDCAPS For the latest information and specifications visit www.startech.com/USB2HDCAPS Manual Revision: 04/16/2019... -
Page 2: Safety Statements
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual... - Page 3 • Montering av kabelavslutningar får inte göras när produkten och/eller elledningarna är strömförda. • Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 4: Table Of Contents
Application Operation ..........................11 Network Streaming Operation.............14 Hardware setup ............................14 ShareView Software installation ......................15 Configure the ShareView software for streaming operation ............ 15 LED Indicators ..................17 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 5: Product Diagram

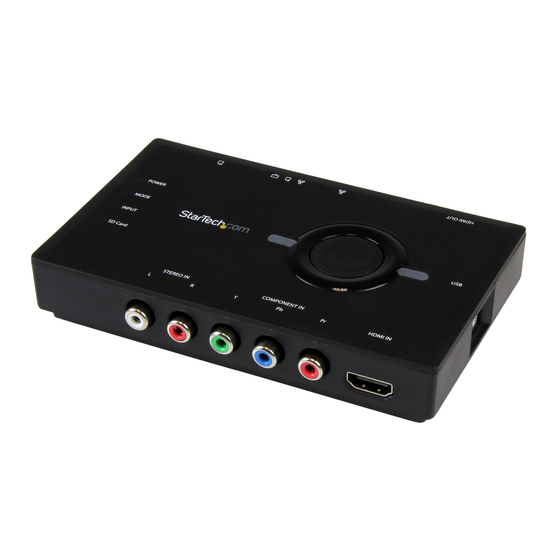

Product Diagram Front View RCA Audio Input Ports (x 2) Component Video Input Ports (x 3) HDMI In Port USB 2.0 Port To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 6: Rear View
Rear View Record Button HDMI Out Port RJ45 Port Mode Switch SD Card Slot To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 7: Introduction
Network infrastructure that supports DHCP and a minimum • of 10base T. Notes: Static IP addresses cannot be set using this device. The Capture Device will not record digitally encrypted content. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 8: Standalone Operation
To stop recording press the Record Button a second time. Once the recording process has completed, each video clip will be saved on your SD card in M2TS format. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 9: Pc Operation
Cables depending on the Audio/Video source. (Optional) To view what is being captured, connect an HDMI Cable (not included) from the HDMI In Port on the Capture Device to an HDMI Display. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 10: Software Installation
OK button. Follow the prompts to complete the VivaStation installation. When prompted to, click the Finish button. Note: You will be required to restart your computer. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 11: Software Operation
These adjustments are outlined below: Record To record video to your computer, click the red Record • button. Record Button Note: To stop recording, click the red Record button again. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 12 To adjust the volume, click the Volume buttons. • Volume Down, Volume Up and Mute Buttons Playback To access files saved on your computer, click the Playback • button. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 13 Video Source To change the input, click the Video Source button and • select the type of device that you are capturing (HDMI, Component, etc.). Video Source Button To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 14: Network Streaming Operation
HDMI audio/video output port on the to an HDMI display. Using a network cable (not included), connect the LAN Port on the Capture Device to an available LAN port on your To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 15: Shareview Software Installation
Select the Live Stream Settings tab from the top of the settings page. In the fields, enter the streaming credentials for your stream service provider, then click the Save button. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 16 Clicking the x button in the top left hand corner to return to the ShareView home screen. Press the Live button on the ShareView screen. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 17: Led Indicators
PC. Solid Blue: Indicates that the Capture Device is receiving • Power and has successfully completed the boot up process. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 18 Flashing Blue: Indicates that the Capture Device is recording • or streaming. Solid Purple: HDMI input signal is HDCP protected. The • Capture Device will not record or stream. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
