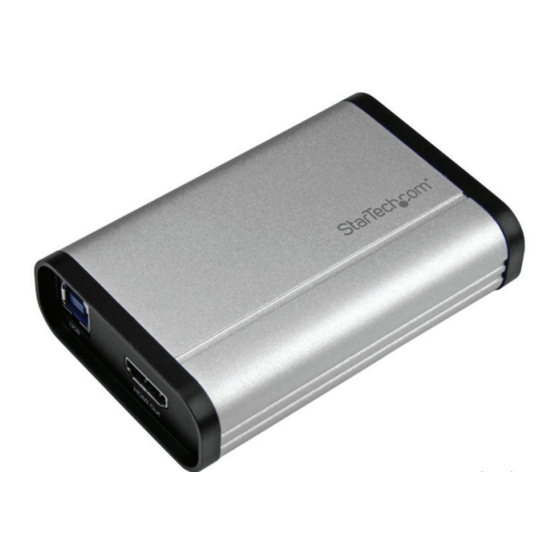

USB-C Capture Device for HDMI Video -
1080p - Windows and Mac
UVCHDCAP
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
JP: 取扱説明書 - jp.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/UVCHDCAP
Instruction Manual revision: 04/24/2018
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com UVCHDCAP
Summary of Contents for StarTech.com UVCHDCAP
- Page 1 USB-C Capture Device for HDMI Video - 1080p - Windows and Mac UVCHDCAP *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product diagram ....................1 Front view ..............................1 Back view..............................1 Package contents ....................2 Requirements ...................... 2 Specifications ...................... 3 Install the capture device ................3 (Optional) Install and use StreamCatcher........... 4 Basic StreamCatcher operation ......................4 (Optional) Configure the capture device for use with third-party capture software .................... -
Page 4: Product Diagram
Product diagram Front view HDMI In Audio In port port Back view HDMI Out port port Instruction Manual... -
Page 5: Package Contents
Operating system: Windows® 10, 8 / 8.1, 7 macOS 10.13, 10.12, 10.11 Linux® Note: Your Linux distribution must support UVC (USB Video Class). • Operating system requirements are subject to change. For the latest requirements, please visit www.StarTech.com/UVCHDCAP. Instruction Manual... -
Page 6: Specifications
Specifications UVC Output Resolution 1920×1200p@60/50/30/25/24fps 1920×1080p@60/50/30/25/24fps 1280×1024p@60/50/30/25/24fps 1280×720p@60/50/30/25/24fps USB 3.0 1024×768p@60/50/30/25/24fps 800×600p@60/50/30/25/24fps 640×480p@60/50/30/25/24fps 720×576p@60/50/30/25/24fps 720×480p@60/50/30/25/24fps Install the capture device 1. Connect an HDMI cable (included) to the output port on your video source device and to the HDMI In port on the capture device. 2. -
Page 7: (Optional) Install And Use Streamcatcher
• You will be prompted to restart your computer during installation, ensure any unsaved material is saved before you begin installation. 1. Download the latest software from the StarTech.com website: http://www.StarTech.com/UVCHDCAP 2. The software is compressed in a .zip folder. Extract the contents of the folder to a location on your computer that’s easy to access, such as your Desktop or... - Page 8 Menu Video preview window * screenshots are for reference only Record/Stop Snapshot Volume button button control 3. Use the Recording controls at the bottom of the window, as necessary. Configure StreamCatcher for an HDMI source Although the capture device features an HDMI In port, the StreamCatcher software can support multiple sources.
-
Page 9: (Optional) Configure The Capture Device For Use With Third-Party Capture Software
UVC utility. Install the UVC Utility 1. Use a web browser to navigate to www.StarTech.com/UVCHDCAP. 2. Click the Support tab. 3. Under the Drivers & Downloads selection, click UVC Utility from the software sub- section, to download the software. -
Page 10: Configure The Capture Device Using The Uvc Utility
Configure the capture device using the UVC Utility Each of the following settings can be set to your desired configuration from within the UVC Utility. Once these configurations are set, they’ll remain as they’re left until manually changed. To change the parameters of these settings, the UVC Utility can be launched again and the setting reconfigured. - Page 11 • Isochronous - Digitizes your audio/video signal by modulating the data stream into a lower data rate, for more efficient video that’s ideal for real-time video capture applications. • Bulk - Digitizes your audio/video signal by capturing at a high data rate, for lossless audio/video that’s ideal for high-quality video recordings.
-
Page 12: Technical Support
Limitation of liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
