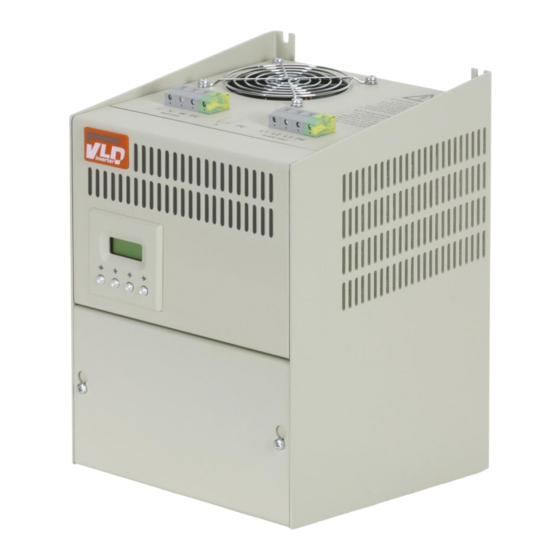

- Page 1 H - I - J frequency converters instruction manual Since 1984...
-
Page 3: Table Of Contents
H - I - J 0,55 ÷ 200 kW FREQUENCY CONVERTERS INSTRUCTION MANUAL TABLE OF CONTENTS APPLICATION ................................4 GENERAL FEATURES ............................... 4 FUNCTIONING ................................5 DECLARATION OF CONFORMITY ..........................5 MECHANICAL INSTALLATION ..........................5 TEST RUN ................................... 6 Cables and fuses ................................ -
Page 4: Application
FREQUENCY CONVERTERS INSTRUCTION MANUAL Dear Customer! Thank you for having decided in favour of PROCON Ltd’s frequency converter. This Instruction Manual contains all information necessary for starting up and operating the frequency converter. Read this manual before installing the frequency converter. -
Page 5: Functioning
H - I - J 0,55 ÷ 200 kW FREQUENCY CONVERTERS INSTRUCTION MANUAL FUNCTIONING The alternating voltage from the power line is rectified by a line diode bridge, then electrolytic capacitors smooth out the pulsating voltage. The intelligent IGBT end stage, driven with sinusoidal modulated pulses, delivers to the motor a voltage of variable amplitude and frequency. -
Page 6: Test Run
H - I - J 0,55 ÷ 200 kW FREQUENCY CONVERTERS INSTRUCTION MANUAL TEST RUN In the course of the installation and test run the manufacturer’s attached wiring instructions and the instructions of the effective standards must be complied with. CAUTION Test run, maintenance, repair and component replacement in the frequency converter are allowed to be performed by authorized specialist only! -
Page 7: Cables And Fuses
H - I - J 0,55 ÷ 200 kW FREQUENCY CONVERTERS INSTRUCTION MANUAL CAUTION EQUIPMENT HAZARD Negligence of this warning could cause total damage to the device. The device is not waterproof! Prevent the interior of the appliance from the penetration of water! Take care that no external object (e.g. -
Page 8: Main And Control Circuit Wiring
H - I - J 0,55 ÷ 200 kW FREQUENCY CONVERTERS INSTRUCTION MANUAL • Main and Control Circuit Wiring • Connecting the power line At connecting the power line comply with following safety measures: ▪ Use only circuit breakers that have been designed specifically for frequency converters. ▪... -
Page 9: Putting In Operaton The Frequency Converter For The First Time
H - I - J 0,55 ÷ 200 kW FREQUENCY CONVERTERS INSTRUCTION MANUAL PUTTING IN OPERATON THE FREQUENCY CONVERTER FOR THE FIRST TIME CAUTION Prior to put in operation the frequency converter read through thoroughly the description below! Follow all safety measures, warnings and instructions described in this manual! Heed the safety messages in this manual. -
Page 10: Assignment And Connection Of The V3D Terminal Block
H - I - J 0,55 ÷ 200 kW FREQUENCY CONVERTERS INSTRUCTION MANUAL ASSIGNMENT AND CONNECTION OF THE V3D TERMINAL BLOCK 3 x 400VAC MOTOR R BRAKE LINE +24V/D GND/D CST CSR 2-10K 0÷10V (0)4÷ 0 2 mA Three-colour LED (green: On, yellow: Operate, red: Error) SA1 +10 V potentiometer driving output (max. -
Page 11: Jumper Settings
H - I - J 0,55 ÷ 200 kW FREQUENCY CONVERTERS INSTRUCTION MANUAL • Jumper settings V3D frequency converter factory settings 0÷10 V Setting the analogue output 1 (option) (0) 4÷20 mA 0÷10 V Setting the analogue output 2 (option) (0) 4÷20 mA 0÷10 V Setting the analogue input 1... -
Page 12: Connecting The Brake Resistor
H - I - J 0,55 ÷ 200 kW FREQUENCY CONVERTERS INSTRUCTION MANUAL • Connecting the brake resistor (optional, in case of built-in brake chopper) 3 x 400VAC MOTOR LINE R BRAKE V3D frequency converter The power on the brake resistor (Pnominal / 50 ÷ Pnominal) depends on the braking time and the duty factor. Selection guide on page 20. -
Page 13: Assignment And Connection Of The Vld / Vhd Terminal Block
H - I - J 0,55 ÷ 200 kW FREQUENCY CONVERTERS INSTRUCTION MANUAL ASSIGNMENT AND CONNECTION OF THE VLD / VHD TERMINAL BLOCK 3 x 400VAC 3 x 400VAC MOTOR LINE R BRAKE +24V/D GND/D CST CSR 2-10K 0÷10V (0)4÷... -
Page 14: Jumper Settings
H - I - J 0,55 ÷ 200 kW FREQUENCY CONVERTERS INSTRUCTION MANUAL • Jumper settings VLD / VHD frequency converter 2 3 4 5 6 7 8 2 3 4 5 6 3 4 5 6 7 factory settings 0÷10V A1P, A1N Setting the analogue input 1 (0)4÷20mA... -
Page 15: Connections Of The Incremental Rotation Speed Encoder (Ire) And Thermal Protection Of The Motor
H - I - J 0,55 ÷ 200 kW FREQUENCY CONVERTERS INSTRUCTION MANUAL • Connections of the incremental rotation speed encoder (IRE) (optional) and thermal protection of the motor VLD / VHD frequency converter CST CSR PTC or thermal contact The signal device can be NPN open collector type, TTL push-pull type or an output with an output voltage of 5 to 24 V. -
Page 16: Connecting A Two-Wire (4÷20 Ma) Remote Transmitter
H - I - J 0,55 ÷ 200 kW FREQUENCY CONVERTERS INSTRUCTION MANUAL • Connecting a two-wire (4 ÷ 20 mA) remote transmitter VLD / VHD frequency converter CST CSR 3 4 5 6 7 8 2 3 4 5 6 2 3 4 5 6 7 A1P, A1N jumpers on the lower two pins... -
Page 17: Operating The Converter
The ProContact program beyond handling the frequency converter permits reading out, modifying and archiving the actual parameter set as well as reading out and archiving the event- and error log. Both programs are available on CD as attachment of the adapter (interface) unit or can be downloaded from www.procon.hu. - 17 -... -
Page 18: Operating Terminal
H - I - J 0,55 ÷ 200 kW FREQUENCY CONVERTERS INSTRUCTION MANUAL • Operating terminal ▪ This terminal allows programming the parameters of the quick menu, displaying 2 parameters and generating reference signal. ▪ Includes a 2x16 character display, 4 push buttons and displays for error state and operation state. -
Page 19: Programming (Operating And Controlling Terminal)
H - I - J 0,55 ÷ 200 kW FREQUENCY CONVERTERS INSTRUCTION MANUAL PROGRAMMING (operating and controlling terminal) • Programming procedure ▪ Changing from display mode to programming mode (Escape) ▪ Moving between the menu items ▪... -
Page 20: Potentiometer
H - I - J 0,55 ÷ 200 kW FREQUENCY CONVERTERS INSTRUCTION MANUAL • Potentiometer (2 ÷ 10 kΩ, linear) Wiring: Frequency conv. Potentio- terminal blocks meter SA 1 SA 2 1 2 3 SA 3 • Selection of the brake resistors at dynamic braking The power on the brake resistor depends on the braking time and the duty factor. -
Page 21: Frequency Converter Selection Guide
H - I - J 0,55 ÷ 200 kW FREQUENCY CONVERTERS INSTRUCTION MANUAL FREQUENCY CONVERTER SELECTION GUIDE Output Nominal Peak Mass Physical dimensions [mm] Fastening TYPE power current current screws Width Length Height Fastening [kW] [kg] Three phase, 3 x 380 ÷ 440 V AC input V3D 0.55 0.55 90 x 200... -
Page 22: Peripheral Equipment Selection Guide
