Replace a power supply unit (PSU)
Lenovo ThinkAgile HX Series appliances use two power supply units. Those power supplies are redundant
when using 208 - 230V input power, allowing one power supply to meet the needs of the node. Losing one
power supply may not impact node operation, however, replace a failed power supply unit as soon as possible
to restore redundancy.
A failed power supply unit is indicated by:
•
Amber warning LED on node front panel is on
•
XCC shows a power supply alert
•
Nutanix Prism web console shows a power supply alert
•
If using VMware ESXi, the vSphere client Hardware Status tab shows a power supply alert.
Table 4. Power supply options
ThinkSystem 550W(230V/115V) Platinum Hot-Swap Power Supply
ThinkSystem 750W(230/115V) Platinum Hot-Swap Power Supply
ThinkSystem 750W (230V) Titanium Hot-Swap Power Supply
ThinkSystem 1100W (230V/115V) Platinum Hot-Swap Power Supply
Replace a power supply:
1. Lenovo ThinkAgile HX Series appliances contain two power supplies. Identify the failed power supply by
checking in Prism, XCC or by the indicator lights on the power supply units.
2. Disconnect the power supply power cable carefully. Do not dislodge the other power cable.
3. Remove the power supply as described in the
ThinkSystem Information
4. Replace the power supply as described in the
ThinkSystem Information
5. Reconnect the power cable.
6. Verify the power supply is successfully replaced:
•
Amber warning light on the server front panel is off
•
Green indicator light on each power supply is on
•
No error shown in XCC
•
No error shown in Prism
6
Lenovo Converged HX Series Hardware Replacement Guide

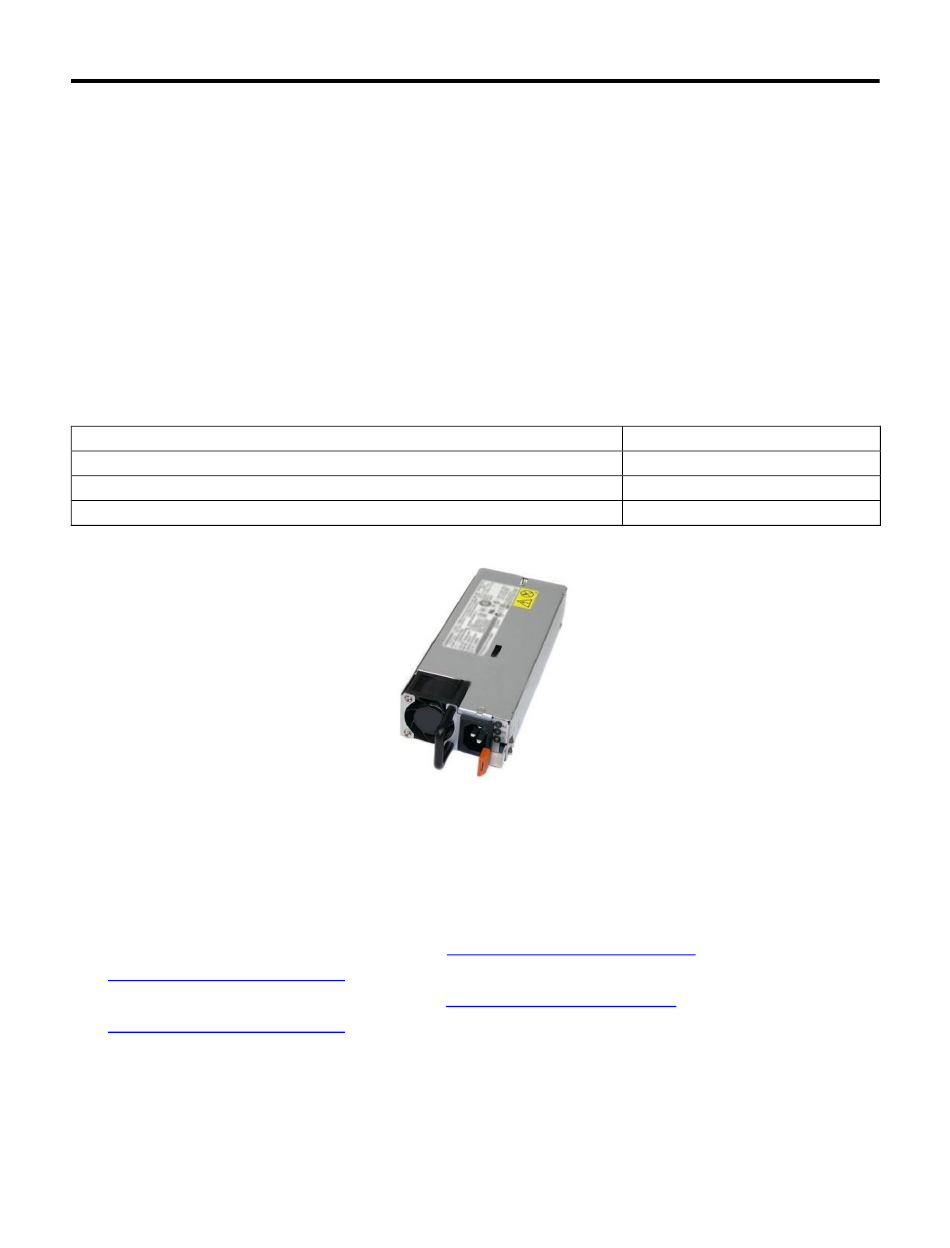

Figure 5. Hot-swap power supply
Remove a hot-swap power supply
Center.
Install a hot-swap power supply
Center.
HX1320, HX2320-E
HX1320, HX2320-E, HX3320
HX 1320, HX2320-E, HX3320
HX3320
procedure in the
procedure in the
© Copyright Lenovo 2017
