ThinkSTaTion® ProducT overview
our value ProP
More reliable
• According to a Workstation Warranty Repair Rate Study by Technology Business Review, ThinkStations
are up to 24% more reliable than its top competitors
• More efficient thermal design
• Industry leading stability and mechanical strength
innovaTion ThaT MaTTerS
• Lenovo® ThinkStation C30 is the smallest dual workstation available

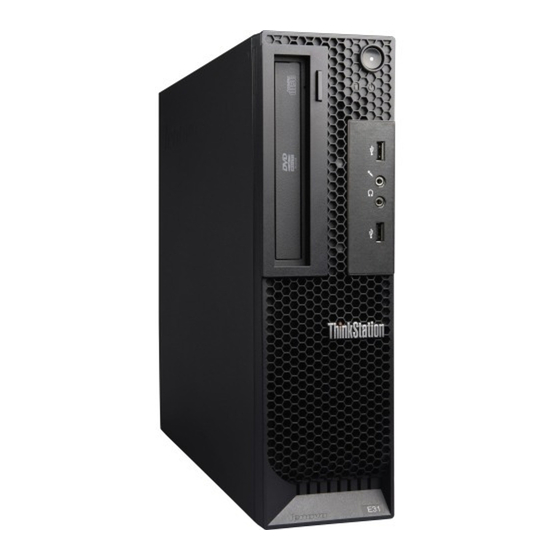

• Lenovo ThinkStation E31 Small Form Factor is the smallest workstation among major vendors
ThoughTful deSign
• Easier to perform upgrades
• More intuitive cable routing
• Takes less time to change components
environMenTally friendly
• Only ThinkStation has Greenguard® certification
• Up to 80 Plus Platinum, 92% efficient power supplies
iSv cerTified
• Rest assured, ThinkStation is fully certified to run your applications and deliver the performance
you need
Advertisement
Related Manuals for Lenovo ThinkSTaTion series
Summary of Contents for Lenovo ThinkSTaTion series
- Page 1 ThinkSTaTion® ProducT overview our value ProP More reliable • According to a Workstation Warranty Repair Rate Study by Technology Business Review, ThinkStations are up to 24% more reliable than its top competitors • More efficient thermal design • Industry leading stability and mechanical strength innovaTion ThaT MaTTerS • Lenovo® ThinkStation C30 is the smallest dual workstation available • Lenovo ThinkStation E31 Small Form Factor is the smallest workstation among major vendors ThoughTful deSign • Easier to perform upgrades • More intuitive cable routing • Takes less time to change components environMenTally friendly • Only ThinkStation has Greenguard® certification • Up to 80 Plus Platinum, 92% efficient power supplies iSv cerTified • Rest assured, ThinkStation is fully certified to run your applications and deliver the performance you need...
-
Page 2: Vertical Coverage
• ThinkStation C30 supports one more 3.5” HDD than the Dell T5600 • mSATA support, an inexpensive way to increase storage capacity, or improve OS performance. NO COMPROMISE DUAL SOCKET • High-end Simulation, Analysis and Rendering, High-end Digital Content Creation, Special Effects and Animation, Life Science Research and Development • Fewer Fans, Better Results D Series » ThinkStation D30 uses 5 fans, Dell T7600 uses 8, HP Z820 uses 11 » ThinkStation is more reliable according to TBR’s Warranty Repair Rate Study • ThinkStation D30 routes cables directly to components rather than behind the motherboard • mSATA Support, an inexpensive way to increase storage capacity, or improve OS performance coMPeTiTive coMPare lenovo® ThinkSTaTion® hP Z SerieS dell PreciSion full-Size dual Socket Xeon® Z820 T7600 compact dual Socket Xeon® Z620 T5600 Single Socket Xeon® Z420 T3600... - Page 3 iSv cerTificaTion ThinkStation Graphics design and Manufacturing Altair HyperWorks ANSYS ...
-
Page 4: Graphics Support
graPhicS SuPPorT SySTeM naTive connecTor SuPPorTed by adaPTer – – – – – – Intel® HD Graphics P4000 – – – – NVIDIA® Quadro® NVS 300 x16 – – – – NVIDIA® Quadro® NVS 300 x1 ... - Page 5 SerieS SuMMary ThinkSTaTion® ThinkSTaTion ProducT line ThinkSTaTion S30 ThinkSTaTion c30 ThinkSTaTion d30 e31 Sff e31 Tower Chassis Format Tower Tower Tower Tower 99.7mm D x 337mm W x 430mm D x 175mm W 483mm D x 175mm W 444mm D x 130mm W 602mm D x 210mm W Chassis Dimension 369mm H x 425mm H x 478mm H x 427mm H x 485mm H Size Rackable Handles None Recessed/Integrated Handle Fixed PSU Fixed PSU Power Supply 240W 85% Efficient 285W 85% Efficient 610W 90% Efficient...
- Page 6 ThinkSTaTion® ThinkSTaTion ProducT line ThinkSTaTion S30 ThinkSTaTion c30 ThinkSTaTion d30 e31 Sff e31 Tower Maximus support Yes (up to Q2000) Yes (up to Q2000) Yes (up to Q6000) Remote Graphics Teradici® 2240 Teradici® 2240 Teradici® 2240 Audio Realtek® ALC662-VD HD 5.1 Realtek® ALC662-VD HD 5.1 Realtek® HD ALC662 Realtek® HD ALC662 Realtek® HD ALC662 On-board Ethernet 1 Port (GbE) 1 Port (GbE) 1 Port (GbE) 1 Port (GbE) 2 Ports (GbE) Serial 1 (optional) Parallel Optional Optional PS/2 Optional Optional Optional...
-
Page 7: Options Compatibility Matrix
MaTriX non-ecc udiMM Memory Lenovo® 2GB PC3-10600 DDR3-1333 UDIMM Desktop Memory 57Y4390 Lenovo 4GB PC3-10600 DDR3-1333 UDIMM Desktop Memory 0A36527 Lenovo 2GB PC3-10600 DDR3-1333 UDIMM Desktop Memory (25- 57Y4420 pack) Lenovo 2GB PC3-12800 DDR3-1600 UDIMM Desktop Memory 0A65728 Lenovo 4GB PC3-12800 DDR3-1600 UDIMM Desktop Memory 0A65729 Lenovo 8GB PC3-12800 DDR3-1600 UDIMM Desktop Memory 0A65730 ecc udiMM Memory Lenovo 2GB PC3-10600 DDR3-1333 ECC UDIMM Workstation Memory 43R2033 Lenovo 4GB PC3-10600 DDR3-1333 ECC UDIMM Workstation Memory 57Y4138 Lenovo 8GB PC3-10600 DDR3-1333 ECC UDIMM Workstation Memory 0A65718 Lenovo 2GB PC3-12800 DDR3-1600 ECC UDIMM Workstation Memory 0B47376 Lenovo 4GB PC3-12800 DDR3-1600 ECC UDIMM Workstation Memory 0B47377 Lenovo 8GB PC3-12800 DDR3-1600 ECC UDIMM Workstation Memory 0B47378 rdiMM Memory Lenovo 2GB PC3-10600 DDR3-1333 ECC RDIMM Workstation Memory 57Y4425 Lenovo 4GB PC3-10600 DDR3-1333 ECC RDIMM Workstation Memory 57Y4426... - Page 8 NVIDIA® SLI Connector 55Y8963 NVIDIA® NVS 300 Dual-DVI, Dual-VGA Graphics Car 0B47390 Monitor cables Lenovo DisplayPort™ to Single-Link DVI-D Monitor Cable 45J7915 Lenovo DisplayPort™ to DisplayPort™ Monitor Cable 0A36537 Monitor adapter Lenovo USB 3.0 to DVI/VGA Monitor Adapter 0B47072 headsets, headPhones, Speakers ThinkPad In-Ear Headphones with microphone (1.2 meter cable) 57Y4488 Lenovo Mini Speakers M220 55Y2033 Lenovo Headphone P550 55Y2065 keyboardS and Mice keyboard and Mouse combination Lenovo Ultraslim Plus Wireless Keyboard and Mouse - U.S. English 0A34032 Lenovo Ultraslim Plus Wireless Keyboard and Mouse 0A340xx (part number varies by language) ThinkPad USB Keyboard with TrackPoint - U.S. English 55Y9003 ThinkPad USB Keyboard with TrackPoint 55Y90xx (part Number varies by language) Lenovo Mini Wireless Keyboard N5901 - U.S. English...
- Page 9 41N3040 footnotes 1. ThinkStation models offer two PCI-e x16 graphic slots allowing two graphic cards to be installed. 2. Supports attachment of flat panel monitors with a 75mm or 100mm VESA mount. Weighs less than 10.9 kg (24.0 lbs) when desk mounted or 7 .98 kg (17 .6 lb) when wall mounted 3. Memory operating speed is dependent lowest installed speed, processor and the DDR3-1333 configuration. For more information on memory configuration, operation and limitations, go to: www.lenovo.com/support/thinkstationaccessories 4. Mixing UDIMM and RDIMM is not allowed. Memory operating speed is dependent lowest installed speed, processor and the DDR3-1333 configuration. For more information on memory configuration, operation and limitations, go to: www.lenovo.com/support/thinkstationaccessories 5. Mixing UDIMM and RDIMM is not allowed. Memory operating speed is dependent lowest installed speed, processor and the DDR3-1066 configuration. For more information on memory configuration, operation and limitations, go to: www.lenovo.com/support/thinkstationaccessories 6. Mixing ECC (Error Correcting Code) and non-ECC is not allowed. Mixing of memory speeds is allowed, however, the system operates at the lowest installed speed. 7 . For ThinkStation S10, D10, E20, S20, D20, E30, S30, D30 attaching the cable lock not only secures the ThinkStation to the work area, but it also prevents users from opening the chassis itself. For ThinkStation C20, C20x, C30 attaching the cable lock only secures the ThinkStation to the work area. 8. Mixing of Serial ATA and SAS Hard Drives is not recommended. Most S10 models are configured with Serial ATA Hard Drives, and most D10 models are configured with SAS Hard Drives. 9. If a 2nd processor is installed, the 2nd processor must match (matched pairs) existing installed Intel® Xeon processor. 10. Mixing ECC (Error Correcting Code) and non-ECC is not allowed. 11. Compatible with: LT2452p, LT2252p, LT1952p, L2440p, L2440x, L2321x, L2261, L2060, L2251x, L2251p, L2250p, L1951p, L1900p, L1711p, L215p, L215, D195, D185 monitors 12. Attaches to DisplayPort™ graphics cards. For more information, go to: www.lenovo.com/support/graphiccards or www.lenovo.com/support/monitoraccessories 13. "Fn" and "Hotkey" operations vary by system, for operation information go to: www.lenovo.com/support/keyboards 14. USB-only attach. 15. Requires the Lenovo-installed, system specific PS2 adapter. For more information, refer to the systems Hardware Maintenance Manual. 16. S20, C20 are SATA-based. SAS hard drives require the Lenovo-installed SAS controller adapter on S20. 17 . 13. Attaches to systems DisplayPort, or the installed DisplayPort™ graphics card. For more information, go to: www.lenovo.com/support/graphiccards or www.lenovo.com/support/ monitoraccessories 55. Lenovo ThinkVision monitor does not include a DisplayPort™ cable. To attach using monitors DisplayPort™ monitor port to the systems DisplayPort™ monitor port, the Lenovo DisplayPort™ to DisplayPort™ Monitor Cable (0A36537) is required. 56. Lenovo ThinkVision monitor does not include a DisplayPort™ cable. To attach using monitors DisplayPort™ monitor port to the systems, or an installed graphics card with DisplayPort™, the Lenovo DisplayPort™ to DisplayPort™ Monitor Cable (0A36537) is required. 57 . Lenovo ThinkVision monitor does not include a DisplayPort™ cable. To attach using monitors DisplayPort™ monitor port to an installed graphics card with DisplayPort™, the Lenovo Lenovo DisplayPort™ to DisplayPort™ Monitor Cable (0A36537) is required. 58. Mixing UDIMM and RDIMM is not supported. Mixing of memory speeds is allowed, however, the system operates at the lowest installed speed.
