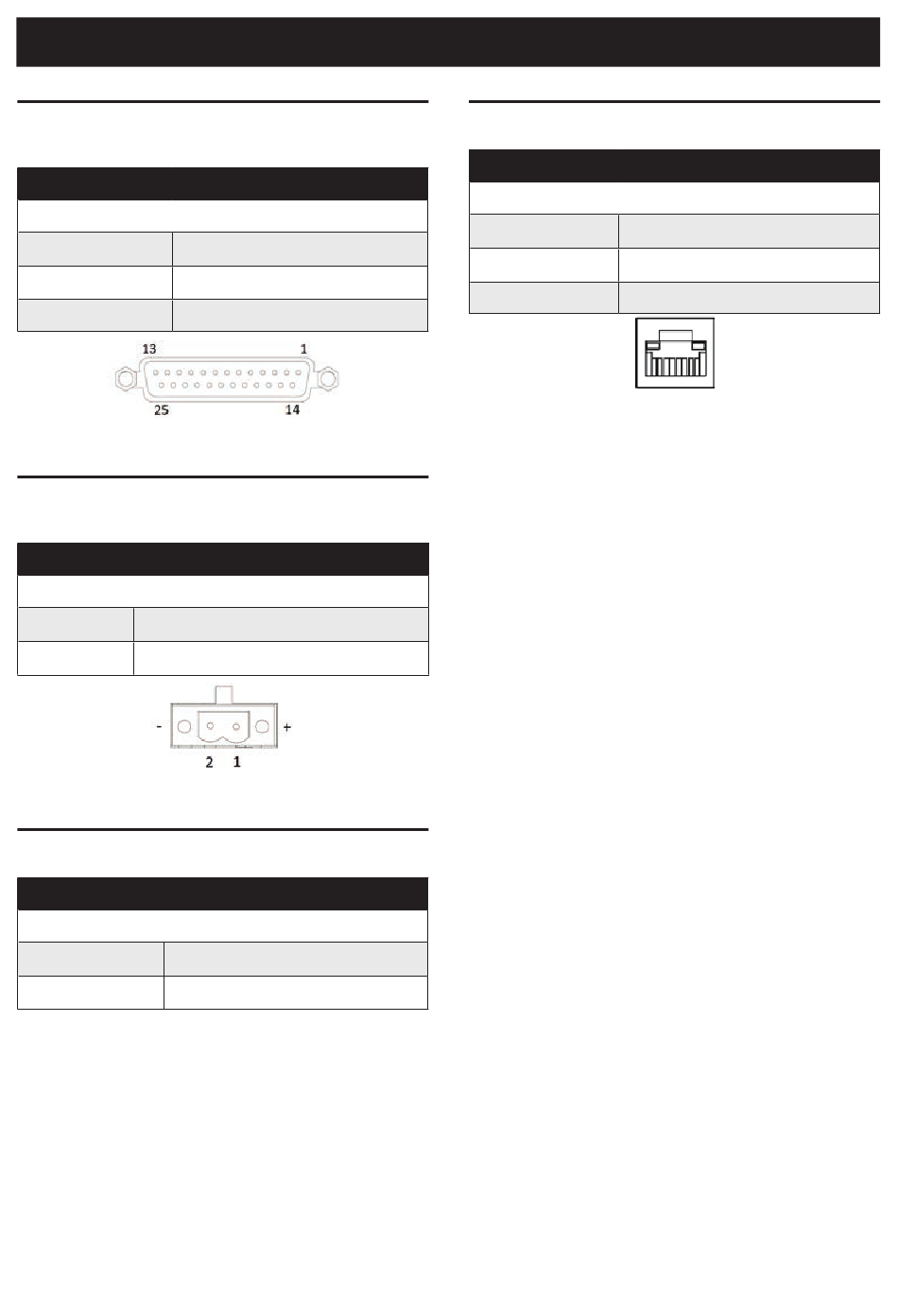

Connector Definition
DIO Connector Definition
The IPC has a DB25 DIO connector, which provides a
12-channel digital input connector and a 12-channel digital
output connector. The definition is as follow:
DIO
Pin Definition
Pin 1 - Pin 12
Digital input (Input)
Pin 13
GND
Pin 14 - Pin 25
Digital output (Output)
DIO Connector
Power Connector Definition
The IPC has a 2-channel Phoenix power input connec-
tor, which provides 9 ~ 36 V DC voltage to the board. The
definition is as follow:
Phoenix Connecor DC Input
Pin Definition
Pin 1
Positive
Pin 2
GND
DC Power Input Connector
LED Definition
At the top right corner on the rear side, there are 3 LEDs
indicating the operating status.
LED Status
LED Status
Storage LED
Orange
Power/Alarm LED
Green/Red
On the front side, there are also 2 LEDs indicating the
operating status.
Ethernet LED Definition
The IPC has 2 RJ45 Ethernet connector, with LEDs show-
ing network status.
LAN1 ~ LAN2
LED Status
1000 MB
Green (top left LED)
100 MB
Orange (top left LED)
Connection Status
Green filckering (top right LED)
RJ45 Connector
ITA-1711 Startup Manual 3
