BLADEZ POWERMILL BF-6730 HRP Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

INTRODUCTION
C
ongratulations for selecting POWERMILL BF-6730 HRP as your primarily source
of fitness. Bladez's treadmill offers many exercise programs that benefit users of all
levels and ages. The treadmill is designed to make your workouts more effective and
enjoyable.
Please read this manual carefully before using BF-6730 HRP POWERMILL. This
will allow you to get a full understanding of all the features Bladez treadmill
provides. If you have a question or concerns, please contact BLADEZ Corporation or
any authorized BLADEZ FITNESS distributors in your area.
BLADEZ Corporation
20155 Ellipse
Foothill Ranch, CA 92610
Phone: 949-206-0330
Fax: 919-206-0350
Email:
www.customerservice@ebladez.com

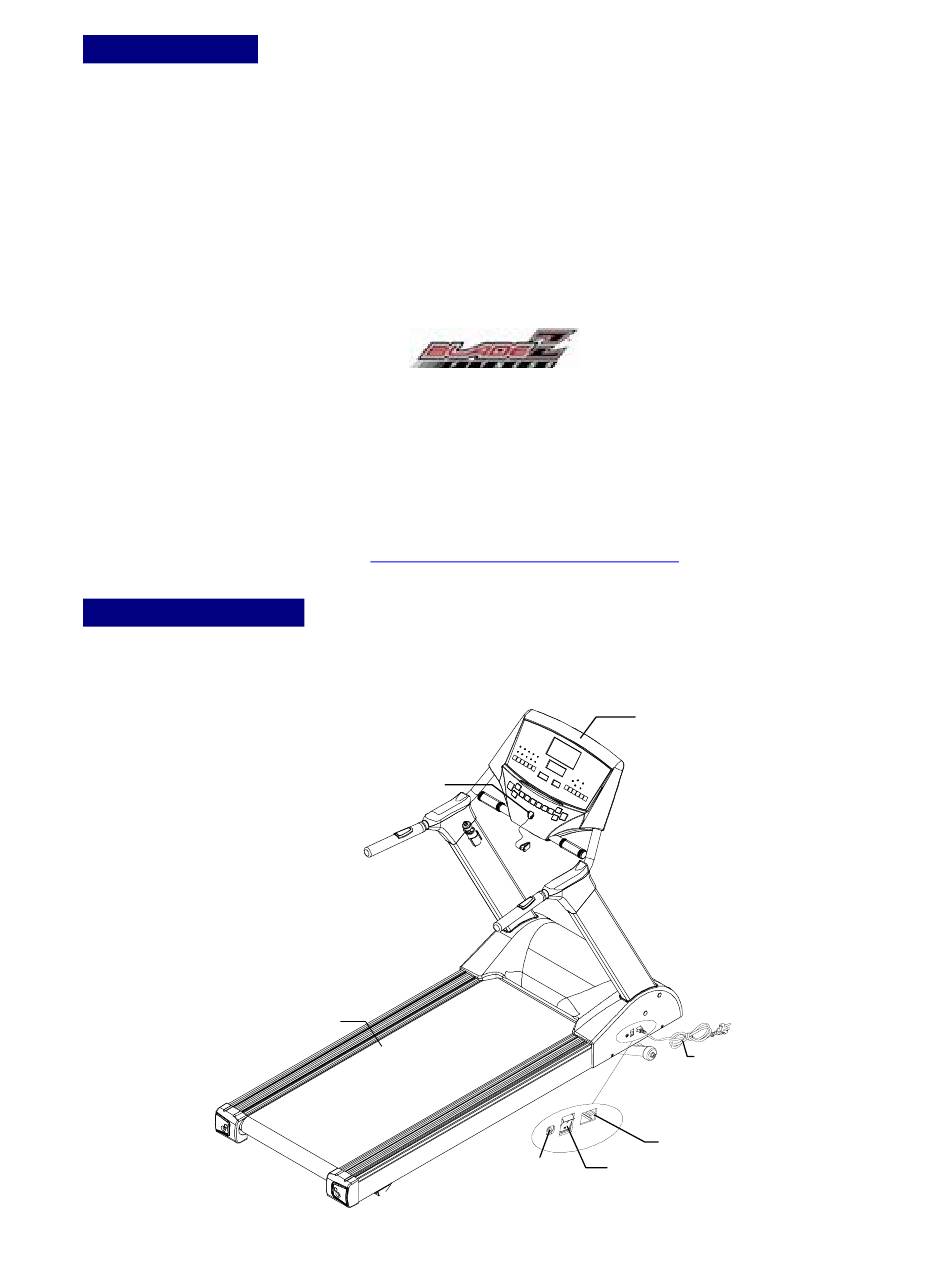

BEFORE YOU BEGIN
It is very important to get yourself familiar with the frequently used components of
your POWERMILL.
Computer
Safety Key/Clip
Frame
Power Cord
Power Cord
Socket
Circuit Breaker
Power Switch
