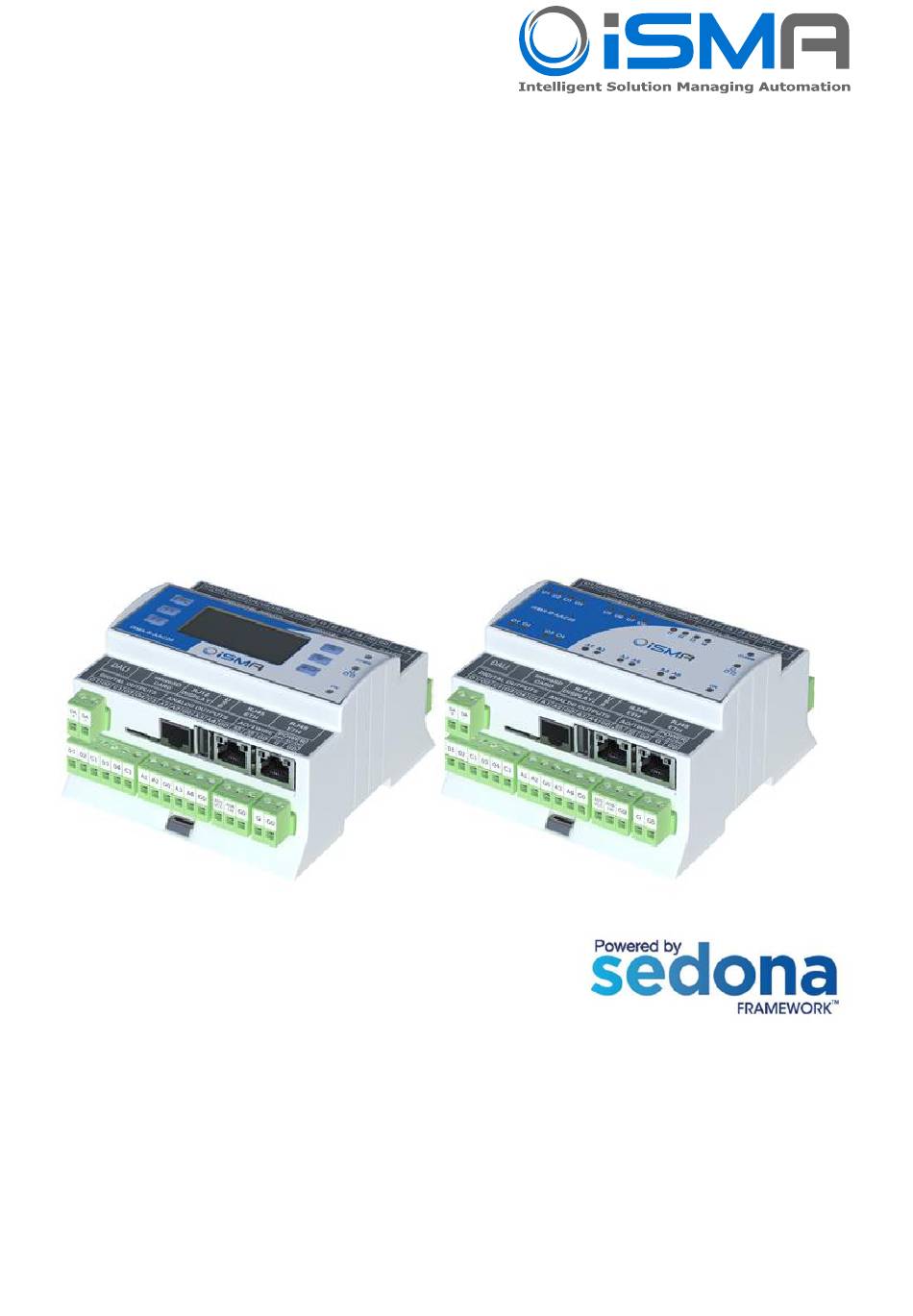

- Page 1 User Manual DALI Network Global Control 5 Sp. z o.o. Warsaw, Poland www.gc5.pl...
-
Page 2: Table Of Contents
Revision history......................3 Installing iSMA DALI kit ......................4 Install kit on iSMA-B-AAC20 device ................5 Remove DALI kit from iSMA-B-AAC20 device ............6 DALI Network kit ........................7 DALI license and limitation ..................7 DALI Network component .................... 8 DALI Network actions- Device Discover and New Initialization .... -
Page 3: Sedona Dali
DALI manual 1 Sedona DALI What DALI is? DALI is an abbreviation for Digital Addressable Lighting Interface. DALI is a protocol, in which DALI devices communicate with each other. In other words, Dali is the language in which DALI – devices talk to each other. -
Page 4: Installing Isma Dali Kit
DALI manual 2 Installing iSMA DALI kit AAC20-D controller has one independent DALI kit. To install Sedona DALI kit, import the kit to the WorkPlace software (possibly as part of the package of various kits in a zip file). To do this, use an application from the Tools menu ->... -
Page 5: Install Kit On Isma-B-Aac20 Device
DALI manual 2.1 Install kit on iSMA-B-AAC20 device After successful import all packages, upload the files to your device using the Kit Manager Application from the Sedona Tools. To install selected kit: Step 1: Open Work Place, expand Sedona Application, then Sedona Tools and then choose double click Kit Manager;... -
Page 6: Remove Dali Kit From Isma-B-Aac20 Device
DALI manual 2.2 Remove DALI kit from iSMA-B-AAC20 device To remove selected kit: Step 1: Open Work Place, expand Sedona Application, next Sedona Tools and then choose double click Kit Manager; Step 2: In the Kit Manager, you can manage your kits on the Sedona device;... -
Page 7: Dali Network Kit
This section provides a collection of procedures to use the iSMA-B-AAC20 DALI Network kit to build network of devices with DALI points. The iSMA-B-AAC20 device has one DALI interface which can be used to communicate with up to 64 DALI devices. -
Page 8: Dali Network Component
DALI manual configuration) of 130mA which can be used to power up, up to 64 standard DALI ballasts (64 * 2mA = 128mA only ballasts). Even though if you want to connect devices where rated of total power consumption exceeds 130 mA (some DALI sensors use more then 2mA), then you must switch off internal power supply and you need connect external power adapter. -
Page 9: Dali Network Actions- Device Discover And New Initialization
DALI manual therefore, depending on the DALI communication speed set, the integrator must allow a certain time to execute the command and start the next command after that time. DALI Network actions- Device Discover and New Initialization DALI Network component has two actions (under right mouse button). -
Page 10: Dali Device
DALI manual 4 DALI Device DALI Device is a component which is responsible for servicing physical device connected to DALI network. Each device is represented by a DALI device, and has a unique DALI address (0 to 63). DALI Device component has the following actions: •... - Page 11 DALI manual Figure 7 – Sedona DALI Device Device Component has the following data points: • Scene (0-15) - These registers are where the brightness values for the individual scenes are stored, • Max Level - Maximum brightness value – this value cannot be exceeded when fading up, •...
-
Page 12: Dali Scenes And Groups
DALI manual Figure 8 – Sedona DALI Device 4.1 DALI Scenes and Groups DALI Scenes (Figure 8 above) With DALI device it is possible to store 16 different lighting scenarios in each DALI device so that predefined lighting moods can be called up for a room (for example the "presentation"... -
Page 13: Dali Light Control Components
DALI manual 5 DALI light control components 5.1 DALI Command Defining the function, further parameters can be set to select the destination address for which the function is intended (group or individual address) and the type of Sedona DALI command to be performed. -
Page 14: Dali On Off
• Send On – This action will send to DALI device/devices command “On” • Send Off – This action will send to DALI device/devices command “Off” Figure 10 – iSMA DALI On Off The component has the following slots: • Status – Component current status, •... -
Page 15: Dali On Off Dimming 2 Switch
• Send Short Press – This action will toggle between On and Off command and send it to DALI device/devices Figure 11 – iSMA DALI On Off Dimming 1 Switch The component has the following slots: • Status – Component current status, •... - Page 16 • Send Short Press Off – This action will send Off command and to DALI device/devices Figure 12 - iSMA DALI On Off Dimming 2 Switch The component has the following slots: • Status – Component current status, • Description – User description up to 32 characters, •...
-
Page 17: Dali On Off Preset Value
• Send Value Off – This action will send to DALI device/devices direct level value assign to Off trigger Figure 13 - iSMA DALI On Off Preset Value The component has the following slots: • Status – Component current status, •... -
Page 18: Dali On Off Recall Scene
• Send Scene Off – This action will send to DALI device/devices recall scene number assign to Off trigger Figure 14 - iSMA DALI On Off Recall Scene The component has the following slots: • Status – Component current status, •... -
Page 19: Dali Scene Setter
• Save Scene – This action sends a command to the DALI device / devices to save the actual level for ballast to the scene number indicated by the Scene Number slot. Figure 15 - iSMA DALI Scene Setter The component has the following slots: • Status – Component current status, •...
