Summary of Contents for Ergomotion quest 2.0

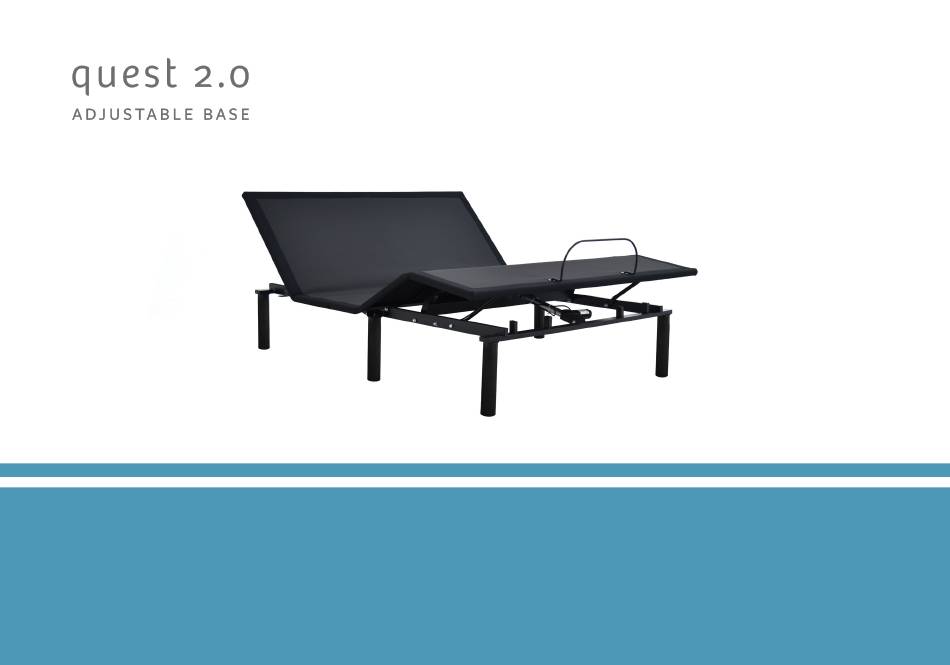

- Page 1 OWNER'S MANUAL OWNER’S MANUAL Actual product appearance and functionality may vary from photographs, illustrations and descriptions included in this manual.
-
Page 2: Table Of Contents
table of contents Safety Precautions and Usage Statements ................1-3 Parts List . -
Page 3: Safety Precautions And Usage Statements
safety precautions and usage statements Attention: Important Safety Disclaimers Read the following information before using this product. Failure to use a surge protection device could compromise safety or cause product malfunction and could void the electrical portion of your warranty. TO REDUCE THE RISK OF SHOCK, BURNS, FIRE OR INJURY: Immediately dispose of all packing materials as it may pose a smothering risk to For optimal safety and operation, plug bed base into a surge protector (not... - Page 4 All Ergomotion adjustable foundations, depending on make and model, are designed and manufactured to perform and function within designated quality control parameters. Bases are subject to meticulous and rigorous inspections during the quality control process to ensure bases will operate within these standards during normal operating use.
- Page 5 safety precautions and usage statements WEAR AND TEAR: Wear and tear is damage that naturally and inevitably occurs as a result of normal use or aging. FABRIC CARE: To prolong the life of your fabric, protect from direct sunlight whenever possible.
-
Page 6: Parts List
parts list Before discarding the packing materials - ensure all the parts are accounted for. All electronics and components that need to be installed are located in boxes under the base or attached to the frame. Wireless Remote Control (1) Mattress Retainer Bar (1)* Legs (6) Power Cord (1) -
Page 7: Base And Remote Overview
base and remote overview Head Motor Head up Flat Preset Foot Down Control Foot Up Zero-G® Preset Memory Preset #2 Head Down Remote Flashlight Memory Preset #1 Foot Motor... -
Page 8: Quick Reference Guide
quick reference guide Not to scale. For illustration purposes only. Read all instructions before beginning installation. ELECTRONICS OVERVIEW Remote Emergency Battery Head Motor Backup Strap Foot Motor Control Power Cord Input Cord Power Supply If installing a split unit, see page 13. -
Page 9: Installation Guide
Do not over tighten. • Insert the Power Cord into the Power Supply. • Plug the Power Cord into a power outlet. A surge protector is recommended. For customer support, visit www.ergomotion.com or call: 1-888-550-3746... - Page 10 • Quickly test remote functions to verify proper setup and return the base to a flat position before placing the mattress on top. Setup is now complete! For customer support, visit www.ergomotion.com or call: 1-888-550-3746...
-
Page 11: Remote Control
remote control REMOTE OVERVIEW BUTTON FUNCTIONS The HEAD arrows lift and lower the head section of the base. The FOOT arrows lift and lower the foot section of the base. One touch FLAT preset position. Turn the remote flashlight On/Off. One touch ZERO-G preset position. -
Page 12: Remote Control Preset Programming
remote control preset programming MEMORY PRESETS Memory Preset Position 1 Memory Preset Position 2 TO PROGRAM THE PRESET POSITIONS: Articulate the head and foot to your desired position. Next, press and hold one of the preset buttons [MEMORY 1/2] for 7 seconds. The position is now saved. -
Page 13: Pairing The Remote
Perform Step 2 within 10 seconds, while adjustable base movements, please repeat the process again or call the control box light is flashing. Ergomotion customer service: 1-888-550-3746 Power Supply Power Cord Hold the... -
Page 14: Connecting Strap
connecting strap If a split setup is being installed, a plastic connecting straps can be used to help secure the bases together. A connecting strap is only included with Twin Long and Cal King Split bases. With the bases in their desired Re-tighten legs. -
Page 15: Syncing Two Bases
syncing two bases (optional) A Sync Cord is included with the base. Not available on Queen, Full or Full-Long size bases. The Sync Cord connects the two control boxes to a single remote for the synchronization of two bases. This process is most commonly used for syncing two connected TXL bases. Unplug bases from power source. -
Page 16: Headboard Brackets
headboard bracket installation guide (optional) Headboard Brackets are an optional accessory and are not included. A hex key is included with the accessory kit to complete installation. Measure the distance between the mounting holes on the Align the hole in the bracket to the brass sleeve into which the leg headboard and install the T-Bracket to accommodate the threads. -
Page 17: Emergency Battery Backup Strap
battery backup strap (optional) For emergency use only, in case of a power outage. Batteries are not to be used for normal operation of the bed. Disconnect the Power Supply from the input power cord. Connect the end of the Battery Backup Strap to the input cord that is attached to the control box. -
Page 18: Troubleshooting
Plug bed base into a different electrical outlet, or test current outlet with another working appliance (a grounded, electrical surge protector is recommended). If issue is not resolved by following the instructions above, locate serial number on warranty card or back of remote and call Ergomotion Customer Service: US 1-888-550-3746... -
Page 19: Notes
notes... - Page 20 Nationwide Customer Service ©2021 Ergomotion Inc V003_11/2022 Phone 1.888.550.3746 1.805.979.9399 Email info@ergomotion.com www.ergomotion.com Serial Number:...
