Tenda HD series User Manual

Tenda HD series User Manual

V1.1
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Tenda HD series

Summary of Contents for Tenda HD series

  • Page 2 All photos and product specifications mentioned in this manual are for references only. Upgrades of software and hardware may occur; Tenda reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes.

  • Page 3: Table Of Contents

    2.1.3.Hardware Connection ....................9 2.1.3.1.PTZ Camera ......................9 2.1.3.2.Cube IP Camera ....................10 3. Setup Wizard ..........................11 4. HD series Web Configuration（For C50/C5） ..............15 4.1.View video .......................... 15 4.2. Running status ........................17 4.3. Video setting........................18 4.3.1. Video parameter ...................... 18 4.3.2.
  • Page 4 4.7.1. User management ....................28 4.7.2. Time settings ......................28 4.7.3. Reboot IP camera ....................28 4.7.4. Restore factory default .................... 29 4.7.5. Backup/Restore settings ..................29 4.7.6. Upgrade ........................29 4.7.7. System Log ......................29 5. SD series Web configuration (for C30/C3) ................... 29 5.1.

  • Page 5: Product Overview

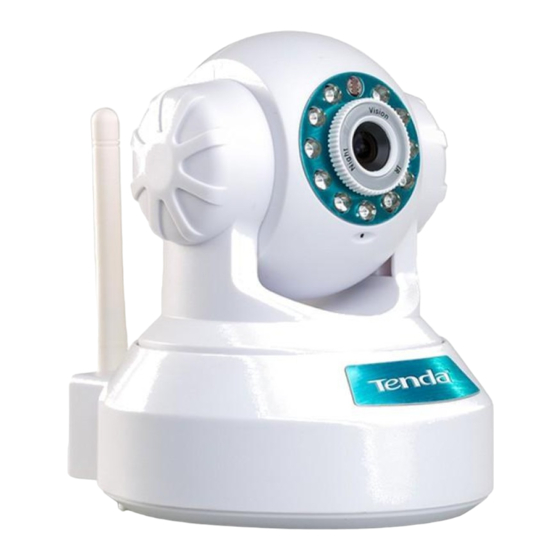

    Internet Explorer6.0 or above, or compatible browser, Firefox etc. 1.3.Introduction HD series IP Camera(C50,C5) provides a professional home or small business surveillance solution . Up to 720p HD video quality, rich detail and crisp image quality. With IRCUT to ensure that the images are real colour.

  • Page 6: Hardware Overview

    6、WI-FI Connect：WI-FI easily connect to a wireless router. You can easily get rid of the trouble of deployment the Ethernet cable. 7、Two-way audio ：Not just screen monitor, you can also voice intercom. When you find the abnormal situation, you can be reminded by voice intercom, to ensure safety. 1.5.Hardware overview HD series IP camera（C50、C5）...
  • Page 7 SD series IP camera (C30, C3) If the camera image is not clear, you can rotate the lens to improve...

  • Page 8: Installation

    2. Installation 2.1.Hardware installation 2.1.1.Table install 2.1.1.1.Cube IP Camera ③ ① ② Figure1.Take out the bracket ,turn the screw on the camera base counter-clock wise to loosen it. Figure2.Camera connect to camera base, turn the collar on the camera base clockwise to tighten it.

  • Page 9: Wall Install

    Figure5.Attach antenna to the antenna connector on the back of the camera, and fix it. 2.1.2.Wall install According to your needs, refer to the figure to install。 2.1.2.1. Cube IP Camera ① ② Figure 1:Take out the bracket,then fix the bracket to the wall using screws.

  • Page 10: 2.Cube Ip Camera

    ② ③ ① Note: If your Router Figure1.Connect an Ethernet cable to the LAN port on your router. connected to a MODEM.The camera is unable to connect to the port of the MODEM. Figure2.Connect the other end of the Ethernet cable to the network interface of the camera.

  • Page 11: Setup Wizard

    Step 1: Insert the included CD into your computer's CD drive, enter CD driver and then click " " to run the Setup Wizard utility. This wizard will guide you connect Tenda super easy IP camera series to your network.
  • Page 12 Step 4: Follow instructions on the setup wizard screen below to connect hardware (Make sure power adapter is plugged properly into device power receptacle. Some users may mistakenly plug the power connector to device's audio interface) and then click "...
  • Page 13 Step 6: Setup wizard will automatically complete Active-X detection and install (If your firewall asks whether to block the Active-X during installation, select allow installation to ensure successfully installation.) Step 7: Follow instructions on the setup wizard screen below to complete basic configurations for the camera and then click "...
  • Page 14 1．Click " ".（If your firewall asks whether to block the utility, select don't block or directly disable firewall before you start searching.) Note: If it‟s fail to search the camera , please enter the CD driver: \FAQ\FAQ-en, refer to Question 1 for detail.

  • Page 15: Hd Series Web Configuration（For C50/C5

    . 4. HD series Web Configuration（For C50/C5） " ，enter You can follow the setup wizard, in the last step of the wizard, Click" “admin” in both user name and password text boxes on the appearing login window, and then click “OK”...
  • Page 16 D:\Record and D:\Snap ); 5. Talk button : Click this button to hear what the person at the side of computer talks. Click it again, it will stop playing; 6. Audio monitor button : Click this button to hear what people talking about at the side...

  • Page 17: Running Status

    4.2. Running status You can check some information of the device, example of software version, web version, Mac address, TF/SD card status. Also can operate the functions for “Get Wan IP Address”,“View the Contents of the TF/SD card”, “Format the TF/SD card”, “Stop the TF/SD card”.

  • Page 18: Video Setting

    4.3. Video setting 4.3.1. Video parameter Note: When you modify the parameters, you need to click Apply to save your settings.

  • Page 19: Audio Parameter

    4.3.2. Audio parameter The camera supports G.711 and G.726 audio encoding format. The sound of the G.711 is better, but it occupies more bandwidth. If you click “On” of the audio capture, so it will transmit audio in corresponding video stream. Please open the audio here, should you hear the sound when clicking audio play button in 4.1.1.

  • Page 20: Network Setting

    4.4. Network setting 4.4.1. LAN settings You can choose one of the way to change the IP address of the camera. Method One: Set IP address of the camera automatically by select "Dynamic IP Address "in" IP Configuration Type" item. Note,this need your Router‟s DHCP Server function on.

  • Page 21: Remote Access Setting

    Select „On‟ and click „Search‟, and then select wireless Router in pop up menu, click „OK‟ and enter its password, click „apply‟ to save the wireless settings. And you can click „check‟ to check if the wireless setting is successful. After setting successfully, please pull out network cable, then you can use the wireless function.

  • Page 22: Onvif Settings

    4.4.4. ONVIF settings The camera supports ONVIF protocol, so it can be interconnected with NVR that support ONVIF. Supported ONVIF version: 2.0.1 Note: When you modify the parameters, you need to click Apply to save your settings. 4.5. Alarm setting 4.5.1.

  • Page 23: Sound Detection Setting

    The area for motion detection area, if the alarm set success, when change the region will trigger the alarm Move the cursor to here, when the arrows into a two-way arrow, press the mouse left key drag can zoom in on the rectangular frame size Please click “apply”...

  • Page 24: Scheduled Time Setting

    About Email Setting, you can enter CD Driver: \ FAQ\FAQ-en, please refer to the FAQ-en question 4 for detai. Note: When you modify the parameters, you need to click Apply to save your settings.

  • Page 25: Record To Tf/Sd

    If you check “Save Images to the TF/SD card”, the snap pictures will be stored into SD card during the setting time. If you check ”Save Images To an FTP Server” ,the snap pictures will be stored into FTP server during the setting time.

  • Page 26: Ftp Setting

    “Test” to check if the setting is successful. The SMTP server name: It is mailbox server, for example of SOHU mailbox, it is “smtp.sohu.com”. Please fill all blanks which we filled above. Otherwise, the settings will fail.

  • Page 27: Ptz Protocol Setting

    2) FTP storage space and the authority 3) Create sub-category to store the video or pictures. Note: The password should not be special character, otherwise the camera can‟t identify it. 4.6.5. PTZ Protocol setting PTZ Protocol Setting, set the cruise laps, PTZ speed, self-inspection location, Close alarm when PTZ movement.

  • Page 28: System Setting

    4.7. System setting 4.7.1. User management There are 3 levels of user authorization in it.  Administrator: “admin” has the highest authority. It can do any settings. The factory default password: admin. Note: It is recommended you set the administrator account user name is “ admin ” . Set your own password.

  • Page 29: Restore Factory Default

    4.7.4. Restore factory default Restore factory default 4.7.5. Backup/Restore settings If you click “Confirm” of Backup setting data, the camera will create a file, you can store it to your computer, and you can directly call this file to restore the settings. The function helps to manage the cameras and no need to do all the settings again.

  • Page 30: View Video

    5.1. View video 1) Operation interface Language selection: support Simplified Chinese and English Resolution selection button：VGA/QVGA/QQVGA（640*480/320*240/160*120） PTZ control button：up/down/left/right/center Vertical Patrol/Horizontal Patrol/Set preset/Call preset/Listen/Talk/Snapshot/Record 2) System settings Click “System settings” button to enter system setting web page, you can configure your camera.

  • Page 31: Video Setting

    5.3. Video setting 5.3.1. Video parameters setting OSD/IR LED control/flip/mirror 5.4. Network setting 5.4.1. LAN setting If you want to change ip address of the camera, except for changing it in setup wizard, also you can change it in “LAN setting” of network setting.

  • Page 32: Wifi Setting

    5.4.2. WiFi setting Enter the Wireless LAN Setting, click the “Scan” button, it will show you all the wireless networks detected in the Wireless Network list column. Select one of them and tick “Using Wireless LAN”, then the relevant data of the selected wireless network will be shown in the following blanks.

  • Page 33: Alarm Setting

    5.5. Alarm setting 5.5.1. Alarm setting If user needs to monitor a fixed area, it will detect the motion and trigger the alarm when there is any motion in the area. In the motion detect sensibility, the smaller the value, the more sensitivity.

  • Page 34: E-Mail Setting

    5.6.3. E-mail setting When it detects alarming, it can send email to your appointed email box, but you need to set email service parameters correctly. As shown below, click “Submit” to save these parameters, and then you can click “Test” to check if the setting is successful.

  • Page 35: System Settings

    5.7. System settings 5.7.1. User setting 5.7.2. Device date and time settings You can enable “Sync with NTP Server” when the device was connected to WAN, but need to select correct time zone where the camera is located, otherwise need to select“ Sync with PC time”.

  • Page 36: Upgrade System Firmware

    5.7.7. Upgrade system firmware There are two kinds of firmware run in the camera, one is system firmware, another one is Web UI, you can upgrade them respectively.

This manual is also suitable for:

Sd seriesC50C30C3C5
