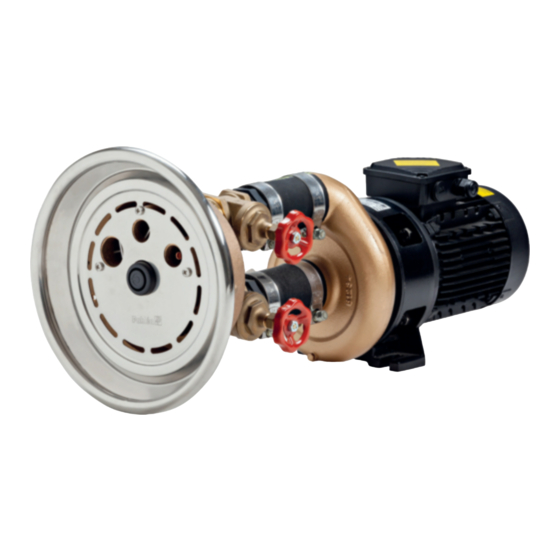

Jet Swim 1200

Product Description

Jet Swim is an apparatus used for training, exercise and recreation. It features an adjustable jet stream for personal
customisation of the water flow and air admixture.
Jet Swim 1200 consists of four parts:
Base kit 1301200
Assembly kit 1301210 Liner, 1301220 Concrete/liner or 1301230 Concrete
Pump kit 1301280 (50Hz), 1301280HZ (60Hz)
Control box 1301290 400V, 130129NO 230V Norway only
The pump section is installed on a stable surface in a dry area. Make sure that the area is well ventilated and is equipped with
a drain in order to prevent flooding.
All installation of stainless steel parts shall be done using tools solely intended for such material in order to maintain its corrosion-
resistance.

Technical Data

Motor
Volage
Current
Pump capacity
Enclosed protection class
150-200
Dimensions
150-200
181
181
200
918 (721)
200
918 (721)
290 (93)
622 (425)
290 (93)
622 (425)
230/400V 50Hz 3N~
8.0 / 4.6 A
46 m /h
3
1000
1000
Ø13 (2x)
C-C 130
Ø13 (2x)
C-C 130
Dimensions put in brackets refer to item no.1301210 for liner pools with walls made of wood, sheet or
plastic.
2.2 kW
265/460V 60Hz 3N~
6.8 / 3.9 A
43 m /h
3
IP55
Recommended water quality values for this
product:
Outside these values the product warranty does
not apply.
Total chlorine content:
Chloride (salt) content:
pH-value:
Alkalinity
Calcium hardness:
:
Iron
:
Copper
Manganese
Phosphorus:
Drain Nitrate:
6
ENGLISH
Ø340
Ø340
max 3.5 mg/liter*
max 250 mg/liter
7.2–7.6
60–120 mg/liter (ppm)
100–300 mg/liter (ppm)
max 0.1 mg/liter*
max 0.2 mg/liter*
: max 0.05 mg/liter*
max 0.01 mg/liter*
max 50 mg/liter*
*According to EN16713-3 2016
Dwg.no: M10
2017-06-29 A
Dwg.no: M10
2017-06-29 A
