Summary of Contents for Infant Optics DXR-6

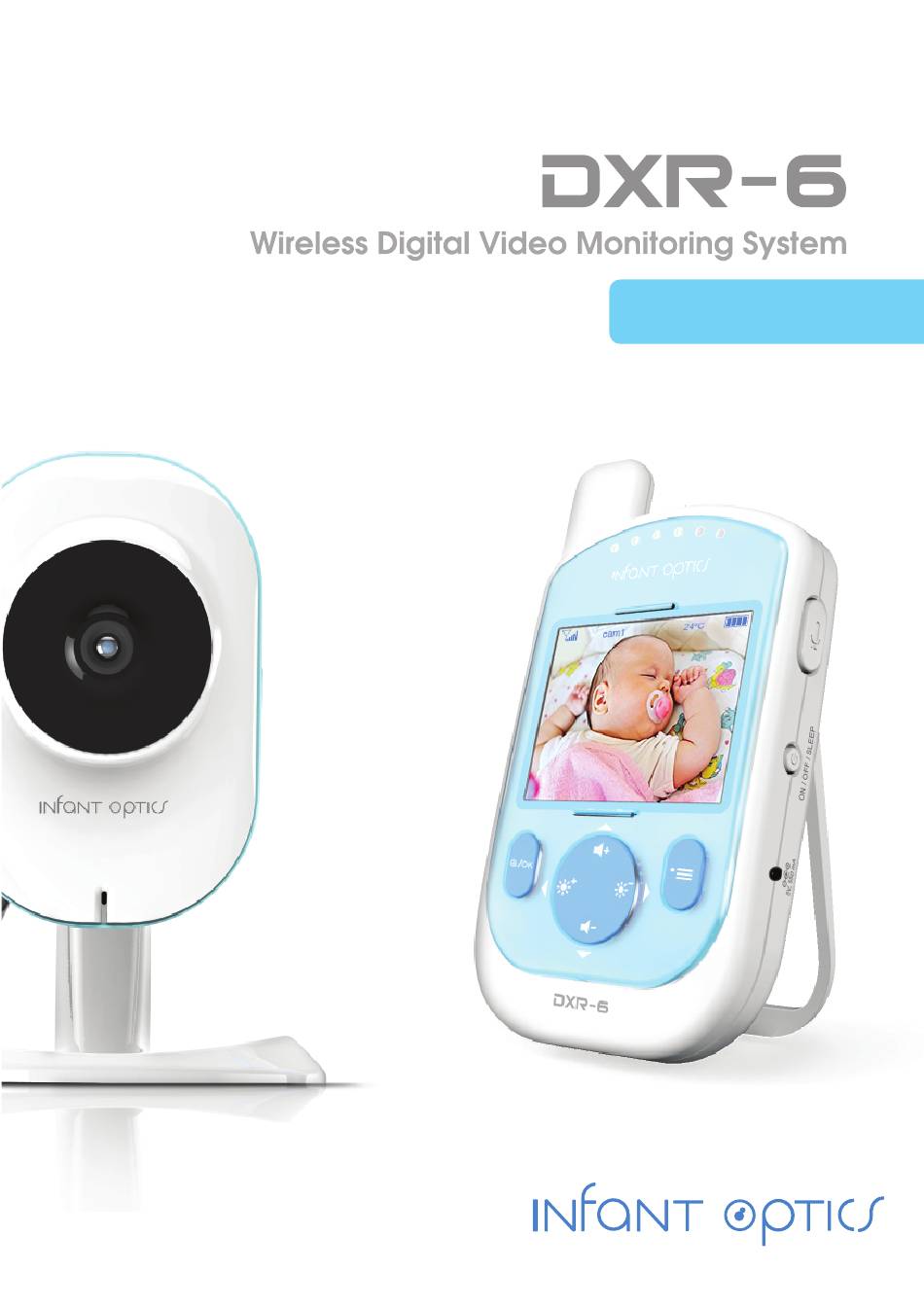

- Page 1 User Manual...
-
Page 2: Table Of Contents
3.2 Wall Mounting Camera Unit................ 6-7 3.3 Monitor Unit Battery Installation..............7 3.4 Charging and Powering the Monitor Unit............7-8 3.5 Registration (Pairing)..................8-9 4. Using the Infant Optics DXR-6 Monitor..............10 4.1 Set Up......................10 4.2 Night Vision Mode..................10 4.3 Talk Mode....................10 4.4 Sleep Mode (Video OFF with Audio ON).............10 4.5 Digital Zoom Mode..................10... -
Page 3: Safety Instructions
1. Safety Instructions WARNING: • STRANGULATION HAZARD – Keep the cord out of baby's reach.To prevent entanglement, DO NOT place the camera or its adapter cord within reach of your baby. • NEVER PLACE THE CAMERA OR CORD IN OR NEAR CRIB OR PLAYPEN. Secure the cord at least three feet away from crib or playpen. -
Page 4: Overview
2. Overview 2.1 What's Included Camera Unit Monitor Unit 1 x Monitor Power Adapter 1 x Camera Power Adapter 1x Rechargeable Lithium Ion Battery (5.0V, 550mA) (5.9V, 550mA) User Manual Quick Start Guide Screws and Anchors... -
Page 5: Product Overview
2.2 Product Overview 1. Power ON/OFF/SLEEP Button 10. TALK Button 2. MENU Button 11. Microphone 3. + Volume Button (UP Button in Menu) 12. Sound Level LED Bar Indicator 4. + Brightness Button (LEFT Button in Menu) 13. Antenna 5. - Volume Button (DOWN Button in Menu) 14. -
Page 6: Menu Options
2.3 Menu Options Status Indication Overview (Upper Screen Bar) Icon Description Options Signal Strength Indicator 5 levels cam 1/ cam 2/ cam 3/ cam 4 Camera Selected cam1 / cam2 / cam3 / cam4 / scan(x) Night Vision (on / off) Alarm Setting (on / off) Talk-back... -
Page 7: Getting Started
3. Getting Started 3.1 Powering Camera Unit 1. Connect the Camera Power Adapter to the Camera Unit. 2. Slide the ON/OFF Switch to the On position. The Power LED light on the Camera Unit will illuminate green. 3. Position your Camera Unit no less than 3 feet away from your baby’s crib. Ensure the power cord is not within reach of your baby. -
Page 8: Monitor Unit Battery Installation
5. Locate the hole on the bottom of the Camera Unit and slide the hole over the screw sticking out of the wall. 6. Check to see that the Camera Unit is secure. If it is loose, you may need to tighten the screw more. -
Page 9: Registration (Pairing)
1. Connect the Monitor Power Adapter to the Monitor Unit. 2. Press and hold the POWER ON/OFF/SLEEP button for 2 seconds to turn ON the Monitor Unit. The POWER LED indicator will illuminate green to indicate the unit is ON. 3. - Page 10 4. Press the UP button or DOWN button to select the desired CAM and press the OK button to start searching for a Camera Unit. 5. Press and hold the PAIR key on the right side of the Camera Unit for at least 3 seconds. The Power LED light (green LED light, located directly below the camera lens aperture) should flash green to indicate the Camera Unit is in pairing mode.
-
Page 11: Using The Infant Optics Dxr-6 Monitor
4. Using the Infant Optics DXR-6 Monitor 4.1 Set Up Place the Camera Unit in a convenient location (e.g. on a table or a shelf) and point the camera lens toward the area you want to monitor. NOTE Do not place the Monitor Unit within baby's reach. If there is interference with the picture or sound, try moving the units to different locations, and ensure they are not close to other electrical equipment. -
Page 12: Dxr-6 Monitor Unit Menu Options
5. DXR-6 Monitor Unit Menu Options 5.1 Volume 1. Press the button or the button to adjust volume. 2. Volume can also be adjusted in the menu bar under the option. 2.1 press the MENU button and the menu bar will pop up. -
Page 13: Toggle ºc/ºf
5.4 Toggle ºC / ºF 1. Press the MENU button and the menu bar will pop up. 2. Press the LEFT button or RIGHT button until Temperature icon is highlighted. 3. Press UP button or DOWN button to select ºC or ºF. ( Default Setting is ºF ) 5.5 Alarm 1. -
Page 14: Add (Pair) A Camera
5.6.2 Add (pair) a camera 1. Press the MENU button and the menu bar will pop up. 2. Press the (icon) LEFT button or (icon) RIGHT button until Cam icon is highlighted, and the del/add/view/scan menu will pop up. 3. Press the (icon) UP button or (icon) DOWN button to select (icon) icon, and press the OK button to confirm. -
Page 15: Scan Camera
TIP: Quick method to cycle through CAM channels Quick method to view desired camera instead of entering into the menu bar: directly press OK button to cycle through paired cameras: cam 1 / cam 2 / cam 3 / cam 4 / scan(x). 5.6.4 Scan camera This function automatically cycles through your paired camera channels to display each camera for 10 seconds. -
Page 16: Troubleshooting
6. Troubleshooting * Check that you are pressing and holding the power button long enough to Product does force unit to switch on. not switch on * The battery may be depleted; recharge or replace battery. * Confirm that power adapters are properly connected. Reception * The Camera and Monitor Unit may be too far apart. - Page 17 Make sure that the Camera Unit is within range of the monitor. Confirm that the Camera and Monitor Unit are paired. Adjust the monitor antenna to vertical position. No sound from Volume setting may be too low. Adjust to a higher setting. Monitor Unit Night vision LED may be ON.
-
Page 18: Troubleshooting
The monitor power adapter may not be properly connected. The rechargeable battery will not Remove battery pack from the Monitor Unit and let it cool down for 5 charge or no minutes. This will reset the system logic of the battery. Replace battery charge light back into Monitor Unit. -
Page 19: Specifications
8. Specifications Systems General RF Frequency: 2400 Mhz ~ 2483.5 Mhz Type of Modulation: GFSK Type of Spread Spectrum: FHSS Selectable Camera Channels: Data Rate: 3 Mbps Channel Bandwidth: 3.375 MHz Transmission Range: up to 700 feet (line of sight, no obstruction) Camera Unit Input Voltage: 100-240VAC @ 50/60Hz... -
Page 20: Fcc Regulations
9. FCC Regulations This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment gener- ates, uses, and can radiate radio frequency energy and, if not installed and used in accor- dance with the instructions, may cause harmful interference to radio communications. -
Page 21: Warranty Information
1-800-291-0195 DEDICATED CUSTOMER SUPPORT EMAIL info@infantoptics.com We will respond to all within 24 hours. This warranty gives you specific legal rights, and you may have other legal rights that vary from state to state. 2017 Infant Optics All rights reserved. - Page 22 2017 Infant Optics...
