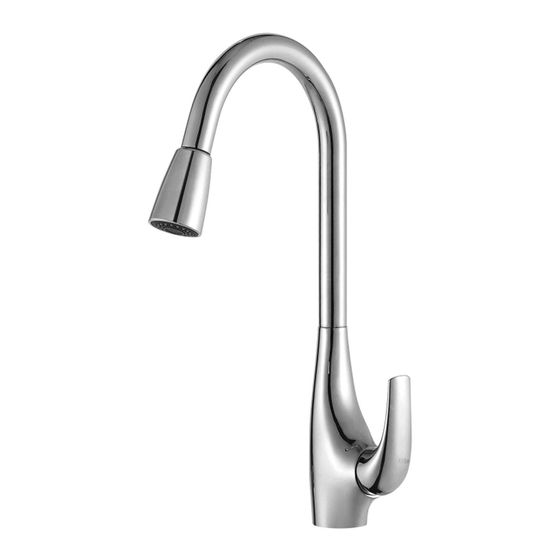

Kraus KPF-1621 Installation Manual
Single lever pull-out kitchen faucet
Hide thumbs
Also See for KPF-1621:
- Installation manual (16 pages) ,
- Installation instruction (3 pages)
Subscribe to Our Youtube Channel
Related Manuals for Kraus KPF-1621
Summary of Contents for Kraus KPF-1621
- Page 1 INSTALLATION GUIDE Single Lever Pull-Out Kitchen Faucet KPF-1621 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2017 Kraus USA Inc. I REV. October 25, 2017...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep teh box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product: DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
Prior to Installation • Make sure that cold and hot water lines are turned off • Wrap all threaded connections with Teflon tape. Always wrap in a clockwise direction • Cover your drain to avoid losing parts • Do not disassemble the main faucet body, as it has been installed & commissioned correctly &... -
Page 4: Included Parts
KPF-1621 Diagram and Parts List Included Parts: 1. Faucet Body 2. Base O-Ring 3. Rubber Washer 4. Metal Washer 5. Mounting Nut 6. Mounting Screws (2) 7. Weight 8. Spray Head 9. Spray Hose 10. Hot and Cold Waterlines (2) 11. - Page 5 Dimension Drawings 20° 9 3/32” Ø35~Ø38 Ø3/8”~Ø1 1/2” Cold Water Water Safety Tips • If soldering the water connections when installing the faucet, remove the O-rings, cartridges, and washers before applying any heat • Protect your eyes with safety glasses when cutting or soldering...
- Page 6 Dimension Drawings Cold Water Safety Tips • Do not overtighten fixing screws/nuts. Tighten finger-tight, then use a wrench/screwdriver to tighten the fixing screw/nut until snug...
-
Page 7: Installation Method
Faucet Installation Methods Installation Method 1 The minimum distance between the faucet hole and the wall should be 3.5” Installation Method 2 If the distance between the faucet hole and the wall is less than 3.5”, position the faucet lever 30 degrees to 90 degrees off of the wall to allow for full operation... - Page 8 Faucet Installation Steps Step 1 Remove mounting screws (6), mounting nut (5), metal washer (4), and rubber washer (3) from the faucet body (1) Step 2 Connect spray head (8) to spray hose (9) and tighten firmly. Insert the faucet body (1) into the hole on the deck with the base o-ring (2), and then install the rubber washer (3), metal washer (4), mounting nut (5) and mounting screws (6) from underneath the sink...
- Page 9 Step 3 After adjusting the direction of the faucet body(1), tighten the mounting nut (5) until snug and tighten the mounting screws (6) to the nut with a Philips head screwdriver Step 4 Connect the spray hose (9) to the supply line and tighten with a wrench until snug, then install the weight (7) at the lowest point (horizontally) on the spray hose (9)
- Page 10 Step 5 Connect hot and cold waterlines (10) to the angle stops and tighten with a wrench until snug, then unscrew spray head (8), hold the tip of the spray hose (9) and turn on the faucet to flush any debris...
- Page 11 Usage join hose How to Operate the Handle Cold Water Water 1. Pull the lever to the right to turn on the water. Push to the left to turn off 2. Pull the lever forward to increase hot water flow and push the lever back to increase the cold water flow...
-
Page 12: Troubleshooting
Trouble - Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: P R O B L E M C A U S E A C T I O N Leakage under the Locking nut has Remove the index button... - Page 13 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 14 International shipping fees are not included. COMMERCIAL WARRANTY Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial, commercial, and business use. All incidental or consequential damages are specifically excluded. No additional warranties, express or implied, are given, including but not limited to any implied warranty of merchantability or fitness for a particular purpose.
- Page 16 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
