Hanna Instruments HI5321 Instruction Manual

Hanna Instruments HI5321 Instruction Manual

Conductivity/resistivity/tds/salinity/temperature bench meter
Hide thumbs Also See for HI5321:

Advertisement

Table of Contents

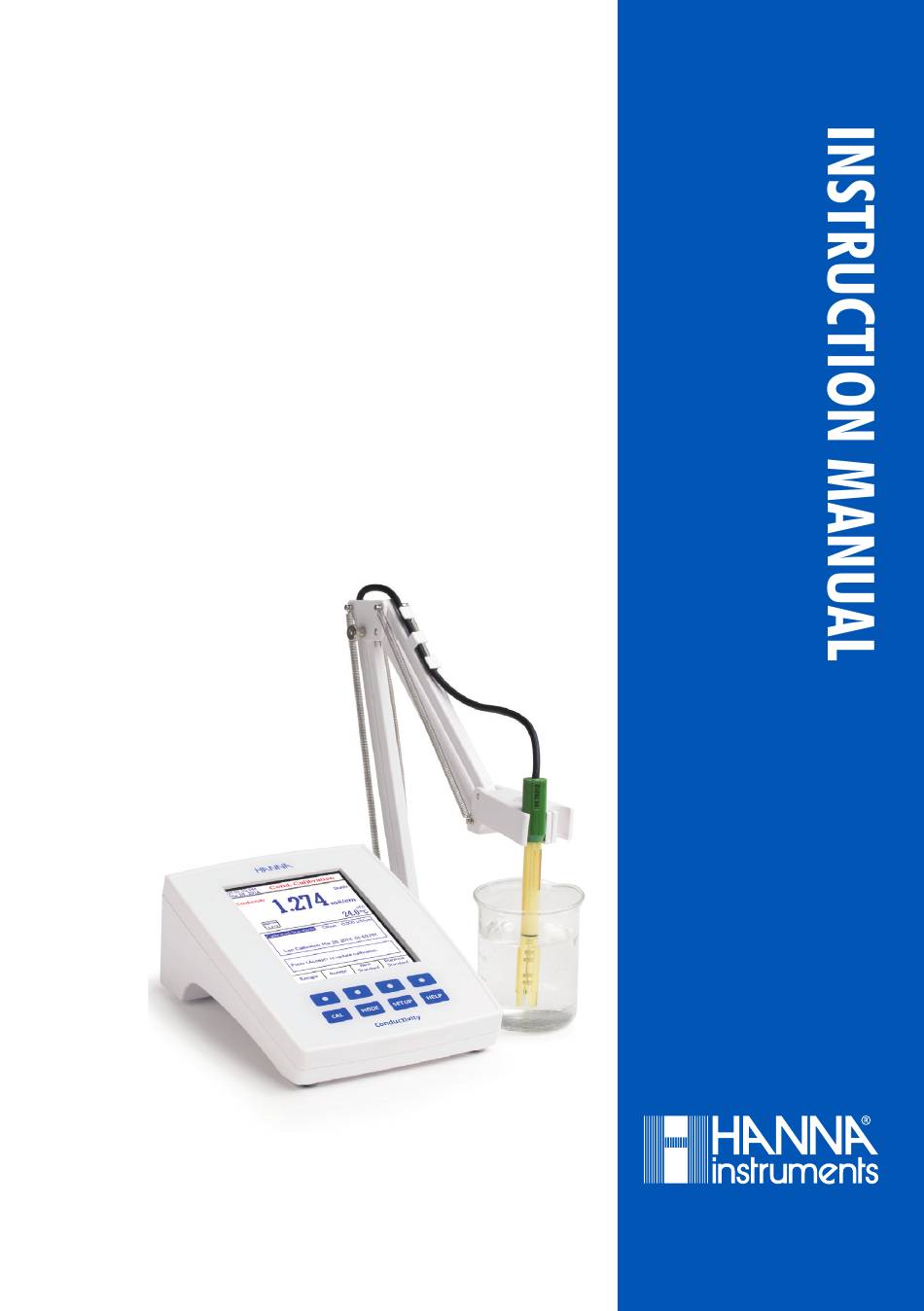

HI5321
Conductivity/Resistivity/TDS/
Salinity/Temperature
Bench Meter
1
sale@ponpe.com
www.ponpe.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HI5321 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hanna Instruments HI5321

Summary of Contents for Hanna Instruments HI5321

  • Page 1 HI5321 Conductivity/Resistivity/TDS/ Salinity/Temperature Bench Meter sale@ponpe.com www.ponpe.com...
  • Page 2 All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895, USA. sale@ponpe.com www.ponpe.com...

  • Page 3: Table Of Contents

    PRELIMINARY EXAMINATION ....................GENERAL DESCRIPTION ....................... FUNCTIONAL DESCRIPTION ....................SPECIFICATIONS ......................... OPERATIONAL GUIDE ......................DISPLAYING MODES ......................SYSTEM SETUP ........................CONDUCTIVITY SETUP ......................RESISTIVITY SETUP ......................TDS SETUP ......................... SALINITY SETUP ........................CONDUCTIVITY CALIBRATION ....................CONDUCTIVITY MEASUREMENT .................... USP EVALUATION ....................... RESISTIVITY MEASUREMENT ....................
  • Page 4 • Conductivity Calibration Solutions Kit • 12 Vdc Power Adapter • Instruction Manual and Quick Reference Guide • Certificate HI5321‑01 is supplied with 12 Vdc/120 Vac adapter. HI5321‑02 is supplied with 12 Vdc/230 Vac adapter. Note: Save all packing material until you are sure that the instrument works properly. Any defective item must be returned in the original packing with the supplied accessories.
  • Page 5 HI5321 is a professional bench meter with color graphic LCD, conductivity, resistivity, TDS, salinity and temperature measurements. The display may be viewed with: Basic information only, GLP information, Graph and Log History. The main features of the instruments are: • Single input channel;...
  • Page 6 HI5321 DESCRIPTION FRONT PANEL Con du ct iv it y REAR PANEL 1) Liquid Crystal Display (LCD) 2) Capacitive touch keypad 3) ON/OFF switch 4) Power adapter socket 5) Conductivity probe connector 6) USB connector sale@ponpe.com www.ponpe.com...

  • Page 7: General Description

    KEYBOARD DESCRIPTION FUNCTION KEYS To enter/exit calibration mode; To select the desired measurement mode: Conductivity, Resistivity, TDS, Salinity; To enter Setup (System Setup, Conductivity Setup, Resistivity Setup, TDS Setup or Salinity Setup) and to access Log Recall function; To obtain general information about the selected option / operation. VIRTUAL KEYS The upper row keys are assigned to the virtual keys placed on the bottom of the LCD, which allow you to perform the displayed function, depending on the current menu (e.g.
  • Page 8 0.000 to 9.999 µS/cm 10.00 to 99.99 µS/cm 100.0 to 999.9 µS/cm Range 1.000 to 9.999 mS/cm 10.00 to 99.99 mS/cm 100.0 to 1000.0 mS/cm 0.001 µS/cm 0.01 µS/cm 0.1 µS/cm Resolution 0.001 mS/cm 0.01 mS/cm 0.1 mS/cm Accuracy ±1% of reading (±0.01 µS/cm) Conductivity Cell constant 0.0500 to 200.00 /cm...
  • Page 9 0.000 to 9.999 ppm 10.00 to 99.99 ppm 100.0 to 999.9 ppm Range 1.000 to 9.999 ppt 10.00 to 99.99 ppt 100.0 to 400.0 ppt actual TDS (with 1.00 factor) 0.001 ppm 0.01 ppm Resolution 0.1 ppm 0.001 ppt 0.01 ppt 0.1 ppt Accuracy ±1% of reading (±0.01 ppm)
  • Page 10 Keyboard 8 keys capacitive touch Power Supply 12 Vdc adapter Dimensions 160 x 231 x 94 mm (6.3 x 9.1 x 3.7”) Weight 1.2 Kg (2.6 lbs) POWER CONNECTION Plug the 12 Vdc adapter into the power supply socket. Note: This instrument use non volatile memory to retain the meter settings, even when unplugged.
  • Page 11 For measurement mode’s the following display configurations are available: Basic, Graph and Log History. A GLP display is available for Conductivity and Salinity Percent scale. Basic The main measured value and it’s units are displayed on the LCD, along with the temperature value, temperature probe status and basic calibration information (when available).
  • Page 12 Graph The on‑line graph with real time logging (Conductivity, Resistivity, TDS, Salinity vs. Seconds) will be displayed when this option is selected. If there is no active log, the previously logged data for the selected parameter will be shown. To access the off‑line / on‑line graph: •...
  • Page 13 Log History The measurement, along with LOG History, will be visible when this option is selected: 1) The last stored logged data (Not actively logging) or 2) The last data logged from an active logging lot or 3) An empty display ‑ NO LOTS saved, Not currently logging The log history list also contains the main measured value, the temperature, as well as a record time stamp.

  • Page 14: System Setup

    The System Setup menu allows the user to customize the user interface, view meter information, set the external serial communication interface and to restore the manufacturer settings. Accessing System Setup • Press while in Measure mode. • Press . The system setup options will be displayed on the LCD.
  • Page 15 Saving Confirmation Enable this option to force verification of a change made to a “GLP Data Option field” or a Sample ID name. If Saving Confirmation is enabled, the user will have to accept the change with a key stroke. If Saving Confirmation is disabled, the changes made to these fields change automatically without verification.
  • Page 16 To add the GLP Data: • Press while in Measure mode. • Press • Use to select the GLP Data option. • Press and use to highlight the desired option. • Press to edit the desired information. The Text Editor menu will be displayed on the LCD. •...
  • Page 17 • Use to select the Date & Time option. • Press and use to highlight the Set Date and Time. • Press to confirm your selection. to select next/previous entry to be edit. Press and use to set the desired value, then press to save the modified value (for Set Date and Time option).
  • Page 18 Color Palette This option allows the user to choose a desired color palette. To select the Color Palette: • Press while in Measure mode. • Press • Use to select the Color Palette option. Color 1 White background blue text Color 2 Blue background white text Color 3...
  • Page 19 Serial Communication This option allows the user to set the desired speed for the serial communication (baud rate) in bps. The meter and the PC program must have the same baud rate. To set the Serial Communication: • Press while in Measure mode. •...
  • Page 20 Restore Factory Settings This option allows the user to erase all user settings and reset the instrument to the default factory settings. To restore the Factory Settings: • Press while in Measure mode. • Press • Use to select the Restore Factory Settings option.

  • Page 21: Conductivity Setup

    The Conductivity Setup menu allows the user to set the parameters related to the conductivity measurement and calibration. Accessing Conductivity Setup • Press while in Measure mode and then to select the Conductivity measurement mode. • Press and then to access Conductivity Setup menu.
  • Page 22 Save Profile To save a profile: • Press while in Conductivity mode. • Press • Use to highlight Profile option. • Press and then use highlight Save Profile. • Press . The existing configuration will be saved in current profile. Save Profile As...
  • Page 23 • Press . A list with all customized profiles will be displayed on the screen. • Use to select the desired profile and press to confirm or exit without selecting. Delete Profile To delete one of the existing profiles: • Use to highlight the Profile option.
  • Page 24 • Press • Use to highlight the Temperature option from the Conductivity Setup menu. • Press to access the Temperature option. Temperature Source To set the temperature source: Note: The HI76312 sensor has an integrated temperature sensor and will provide the best conductivity measurement.
  • Page 25 • Press to confirm your selection or press cancel operation. Note: Whatever form of compensation is used, the reading will not be as accurate as taking a reading of the sample’s conductivity at the reference temperature. Temperature Unit The user can choose from the Celsius, Fahrenheit or Kelvin temperature units.
  • Page 26 Compensation Coefficient (Linear temperature compensation only) The temperature coefficient is a factor used to express the rate a solution’s conductivity increases with an increase in temperature and is expressed as a % increase in conductivity, for a temperature change of 1 °C. The coefficient differs for different binary solutions. For typical aqueous dilute salt mixtures, 1.90 %/°C is used.
  • Page 27 The following options are available for calibration: Standard Recognition The user can choose between Automatic recognition (from 6 Hanna standards available) or User Standard (when custom standards are used for calibration). • Press while in Conductivity mode. • Press • Use to highlight the Calibration option.
  • Page 28 Calibration Reminder This option allows the user to set the calibration reminder as Daily, Periodic or Disabled. To set the calibration reminder: • Press while in Conductivity mode. • Press • Use to highlight the Calibration option. • Press and then use highlight the Calibration reminder option.
  • Page 29 Clear Calibration Accessing this option, the existent conductivity calibration can be cleared. If the calibration is cleared, another calibration has to be performed. To clear calibration: • Press while in Conductivity mode. • Press • Use to highlight the Calibration option. •...
  • Page 30 Units The user can select the desired measurement unit. The available options are: µS/cm, mS/cm or AutoRanging. • Press while in Conductivity mode. • Press • Use to highlight the Units option. • Press and then use select µS/cm, mS/cm or AutoRanging. •...
  • Page 31 Edit Sample ID This option allows the user to edit the sample ID. If ID increment is None, a Text Editor screen is displayed. If ID increment is Automatic, a Numeric Editable screen is displayed. To access the Sample ID: •...
  • Page 32 Automatic ‑ the measurement data is logged automatically at constant time intervals. Manual ‑ a snapshot of the displayed measurement data is logged with time stamp when the user manually depresses Log. Auto Hold ‑ this is configured along with the Direct/AutoHold reading mode to take a snapshot of stable measurement data.
  • Page 33 Sampling Period This option allows the user to select the desired sampling period for automatic logs. To set the Sampling Period: • Press while in Conductivity mode. • Press • Use to highlight the Log option. • Press and use to highlight the Sampling Period option.
  • Page 34 Alarm State Three settings are available for the Alarm State option: Disabled ‑ the alarm will be disabled. Inside Limits ‑ the alarm state will trigger when the measured value is inside the set limits. Outside Limits ‑ the alarm state will trigger when the measured value is outside the set limits.

  • Page 35: Resistivity Setup

    The Resistivity Setup menu allows the user to set the parameters related with the resistivity measurements. Accessing Resistivity Setup • Press and then to select resistivity measurement mode. • Press and then to access Resistivity Setup menu. To access a Resistivity Setup option: •...
  • Page 36 Temperature - see Conductivity Setup section. Units The user can choose between Ω.cm, KΩ.cm, MΩ.cm or AutoRanging units. To select the units: • Press while in Resistivity mode. • Press • Use to highlight the Units option. • Press to confirm and then use to highlight the desired unit.

  • Page 37: Tds Setup

    The TDS Setup menu allows the user to set the parameters related to the TDS measurement. Accessing TDS Setup • Press and then to select TDS (Total Dissolved Solids) measurement mode. • Press and then to access TDS Setup menu. To access a TDS Setup option: •...
  • Page 38 TDS factor TDS factor is a conversion factor used to convert conductivity to TDS by the equation: TDS = Factor x EC . The TDS conversion factor can be set from 0.40 to 1.00. A typical TDS conver‑ sion factor for a strong ionic solutions is 0.50, while for a weak ionic solutions (e.g. fertilizers) is 0.70. Example: TDS factor 0.5 µS/cm x 0.41 = 0.205 ppm NaCl...

  • Page 39: Salinity Setup

    Salinity measurements are related to the salt in ocean water. The Salinity Setup menu allows the user to set the parameters related to Salinity measurement and calibration. Accessing Salinity Setup • Press and then to select Salinity measurement mode. • Press and then to access Salinity Setup menu.
  • Page 40 Clear Calibration This function only works for the Percent Scale. To clear calibration: • Press while in Salinity mode. • Press • Use to highlight the Clear Calibration option. • Press to clear calibration. A pop‑up menu will be displayed asking for confirmation (if calibration is available).

  • Page 41: Conductivity Calibration

    For optimum measurements: • Insert probe in the center of the beaker away from container bottom or walls. • Fix the probe so it does not move during measurements and add sufficient solution to cover top vent holes on probe. •...
  • Page 42 • Pour a small quantity of the standard solution into a clean beaker. If possible, use plastic beakers to minimize any EMC interferences. • For accurate calibration and to minimize cross‑contamination, use two beakers for each standard solution. One for rinsing the probe and one for calibration. •...

  • Page 43: Conductivity Measurement

    Note: When a cell constant value is used, the solution calibration will be cleared. A solution calibration can still be made after entering a cell constant value. CALIBRATION MESSAGES • Wrong standard solution. Check the standard solution. This message appears when the difference between the reading and the value of the selected standard is significant.
  • Page 44 The United States Pharmacopoeia Regulations establishes limits and calibration requirements for WFI (Water For Injection). The HI5321 meter supports conductivity measurements that are needed for off line measurements in a Stage 2 of the regulation. Stage 1 verification may be carried out in a container but the regulation requires an in‑line measurement.
  • Page 45 Stage 1 ‑ this is an in‑line test. The procedure follows: • Measure the temperature of the water and the absolute conductivity readings. The measurement must be an in‑line measurement. Results may be verified using a laboratory method. • The temperature should be rounded down to the nearest 5 °C.
  • Page 46 Stage 2 ‑ this is an off‑line test. To perform this test: • Store the water sample in an enclosed clean container that has been rinsed previously with water of the same quality. • Adjust the sample’s temperature to 25 °C and agitate the sample to ensure that it has equilibrated with ambient •...
  • Page 47 Note: A temperature bath at 25.0 ±1.0 °C is required for this measurement. • Take the water sample from the stage 2 test and increase its ionic strength for a pH measurement at 25 °C. • Use 100 mL of Stage 2 water and add 300 µL saturated KCl to the sample.

  • Page 48: Resistivity Measurement

    Make sure the instrument and probe has been calibrated in conductivity mode before taking resistivity measurements. DIRECT MEASUREMENT To measure the resistivity of a sample using the Direct reading mode: • Press and then to select resistivity measure mode. • Select the Direct reading mode (see Resistivity Setup section).

  • Page 49: Salinity Calibration

    DIRECT/AUTOHOLD MEASUREMENT To measure TDS of a sample using the Direct/AutoHold reading mode: • Select the Direct/AutoHold reading mode (see TDS Setup section). • Proceed the same as for the conductivity measurement. (see Conductivity Measurement section). Note: Salinity calibration is made in conductivity mode when using Natural Sea Water or Practical Sea Water measurement.
  • Page 50 Three methods for calculating seawater salinity are supported (Natural Sea Water Scale, Practical Salinity Scale and Percent Scale). PERCENT SCALE (1902) This salinity scale extends from 0.0 to 400.0%. The formula followed is: = 1.805Cl + 0.03 where salinity is defined as the total amount of solid materials in grams dissolved in one kilogram of seawater.

  • Page 51: Temperature Calibration

    =0.008 =0.0005 =2.070·10 =6.766097·10 ‑5 ‑1 =‑0.1692 =‑0.0056 =-6.370·10 =2.00564·10 ‑10 ‑2 =25.3851 =‑0.0066 =3.989·10 =1.104259·10 ‑15 ‑4 =14.0941 =‑0.0375 =3.426·10 =-6.9698·10 ‑2 ‑7 =‑7.0261 =0.0636 =4.464·10 =1.0031·10 ‑4 ‑9 =2.7081 =‑0.0144 =4.215·10 ‑1 =-3.107·10 ‑3 The user temperature calibration menu can be accessed during meter startup by simultaneously pressing three keys as shown in the drawing below.
  • Page 52 There are 5 ways the Reading Mode and Log may be configured together. The table below shows the combinations and indicates where the completed log will be stored. Reading Mode log Recall Automatic (1) Automatic Log Direct Manual (2) Manual Log Auto Hold (NA) Not Applicable Automatic (3)

  • Page 53: Logging

    3) Direct/AutoHold Reading Mode and Automatic Log Press and then keys must be pressed on front display to initiate this function. Real time continuous measurements are on display with “AutoHold” flashing and real time continuous logging into meter memory, until the meter reaches the stability criteria to go into Auto Hold mode.
  • Page 54 • Press to select the desired Log Report type. All logged lots for the selected Log Report type will be displayed on the LCD. • To filter the displayed lots, press and then the desired parameter. Only the selected measurement parameter lots will be displayed on the LCD.
  • Page 55 (optional). HI92000 also offers graphing and on‑line help features. Data logged on the HI5321 meter can be exported to the most popular spreadsheet applications for further analysis. The instrument has an USB interface. Use a standard USB cable to connect your instrument to the PC.
  • Page 56 MEASURE • Rinse conductivity probe with deionized water and shake off excess water. • To avoid cross‑contamination, rinse probe with a sample of solution to be tested. The measurement solution is that contained within the sleeve. • Insert probe into the center of the beaker with sample. Position it so it is away from the walls or bottom of the beaker.
  • Page 57 SYMPTOMS PROBLEM SOLUTION The instrument does not override the Internal or software error. Restart the instrument using the loading process. power button. If the error persists, contact your vendor. Reading fluctuates up and down (noise). Conductivity probe not properly Check connection. connected.

  • Page 58: Accessories

    Code Description HI7033M 84 µS/cm, 230 mL bottle HI7033L 84 µS/cm, 500 mL bottle HI8033L 84 µS/cm, 500 mL FDA approved bottle HI70031P 1413 µS/cm, 20 mL sachets (25 pcs.) HI7031M 1413 µS/cm, 230 mL bottle HI7031L 1413 µS/cm, 500 mL bottle HI8031L 1413 µS/cm, 500 mL FDA approved bottle HI70039P...
  • Page 59 Technical Service department and then send it with shipping costs prepaid. When shipping any instrument, make sure it is properly packed for complete protection. Hanna Instruments reserves the right to modify the design, construction or appearance of its products without advance notice.
