Page 1: Calibration Check

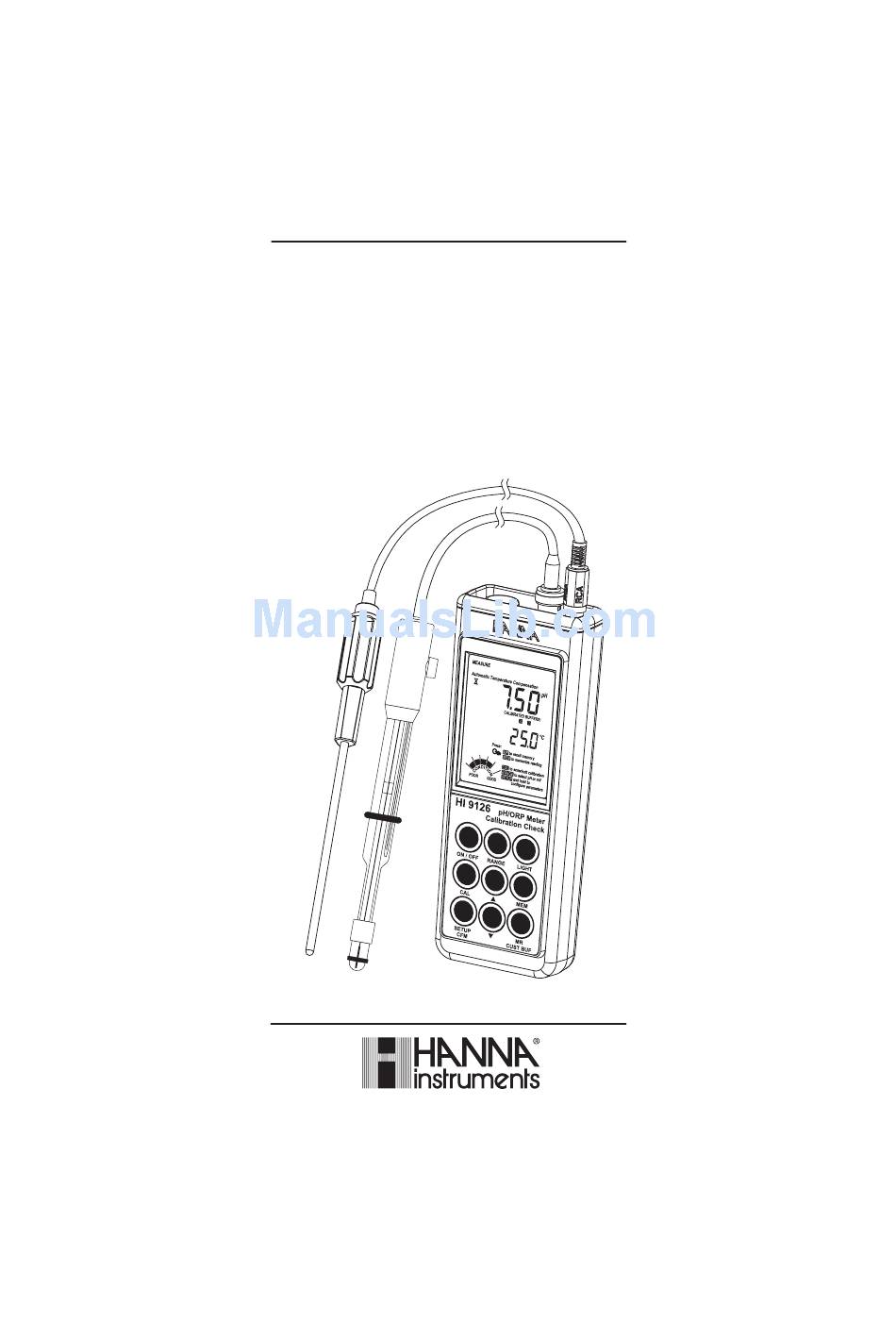

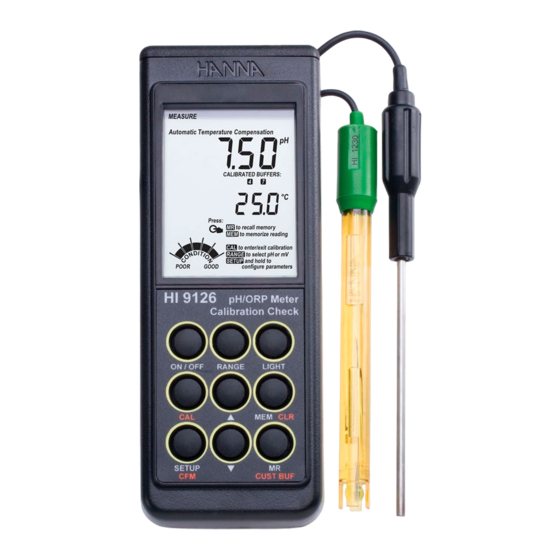

Instruction Manual HI 9126 Calibration Check Waterproof pH/mV/ºC Meter w w w. h a n n a i n s t . c o m... -
Page 2: Table Of Contents
W A R R A N T Y W A R R A N T Y HI 9126 is guaranteed for two years against defects in workmanship and materials when used for their intended purpose and maintained according to instructions. Electrodes and probes are guaranteed for six months. -
Page 3: Preliminary Examination
• User-selectable “calibration time-out” to remind you when a new calibration is necessary HI 9126 can also measure for Oxidation Reduction Potential in the mV range with a resolution of 0.1 mV. It offers an extended temperature range from –20 °C (–4 °F) to 120 °C... -
Page 4: Functional Description
F U N C T I O N A L D E S C R I P T I O N F U N C T I O N A L D E S C R I P T I O N F U N C T I O N A L D E S C R I P T I O N F U N C T I O N A L D E S C R I P T I O N F U N C T I O N A L D E S C R I P T I O N... -
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS – ± ± – C ° – ( ) F ° C ° ° ± ± ± C º F º ± C ° ± ° x e ( u l c r r e ) r o ±... -
Page 6: Operational Guide
OPERATIONAL GUIDE OPERATIONAL GUIDE OPERATIONAL GUIDE OPERATIONAL GUIDE OPERATIONAL GUIDE INITIAL PREPARATION The meter is supplied with batteries (for details see page 19). To prepare the instrument for use, connect the pH electrode and the temperature probe to the BNC and temperature sockets on the top of the instrument. - Page 7 The LCD will show the pH measurement and the temperature of the sample. In order to take more accurate pH measurements, make sure that the instrument is calibrated (see page 10 for details). The glass bulb and the junction on your electrode should always be moist, never allow it to dry out.
- Page 8 ORP MEASUREMENTS To perform ORP measurements, connect an optional ORP electrode (see “Accessories“ section) to the meter and turn it ON. If necessary, enter the “mV” mode by pressing RANGE. Submerse the ORP electrode 3 cm (1¼”) into the sample to be tested and wait for the reading to stabilize.
- Page 9 Note: While in MEM mode, the user can switch between pH and mV by pressing the RANGE key. A stored value can be recalled by pressing MR: the display will show the memorized reading and the “RECALL MEMORIZED” tag, as long as the MR key is pressed.
-
Page 10: Ph Calibration
p p p p p H CALIBRATION H CALIBRATION H CALIBRATION H CALIBRATION H CALIBRATION It is recommended to calibrate the instrument frequently, if high accuracy is required. The instrument should be recalibrated: • Whenever the pH electrode is replaced. •... - Page 11 audible signal (if enabled) when the reading becomes stable and the display will change to “READY” and blinking “CFM”. • Press the CFM key to confirm the calibration: the meter stores the first calibration point; the primary LCD will show the calibrated reading, while the secondary LCD will show the second buffer to be used for calibration (“pH 4.01”).
- Page 12 Note: During calibration, the secondary LCD shows the selected buffer value; press RANGE to display the buffer temperature. Note: To clear a previous calibration and return to the default values, press CLR at any time after entering the calibration mode. The LCD will show “CLr CAL” for one second, and then will return to normal measurement mode.
- Page 13 Note: To increase the speed, continuously press the ARROW keys. • Once the desired value is reached, press CFM to confirm the value. The meter will continue calibration as with memorized buffers. • The meter will display “C2”. Use the arrow keys to change the value of the second custom buffer, or press CUST BUF to select a memorized...
- Page 14 CONDITION The display is provided with a 5-dot bargraph (unless disabled) which gives an indication of the electrode status after calibration: Bargraph indication Condition value All 5 dots steady 81 to 100% of life 4 dots steady 61 to 80% 3 dots steady 41 to 60% 2 dots steady...
-
Page 15: Ph Buffer Temperature Dependence
p p p p p H BUFFER TEMPERATURE H BUFFER TEMPERATURE H BUFFER TEMPERATURE H BUFFER TEMPERATURE H BUFFER TEMPERATURE D E P E N D E N C E D E P E N D E N C E D E P E N D E N C E D E P E N D E N C E D E P E N D E N C E... -
Page 16: Setup Menu
S E T U P M E N U S E T U P M E N U S E T U P M E N U S E T U P M E N U S E T U P M E N U The instrument allows the user to configure several parameters through the Setup Menu. - Page 17 4. Calibration segments: On (default) or Off. This enables or disables the bargraph, the “CLEAN ELECTRODE” message and the buffer segments. 5. Calibration time-out: 1 (default) to 14 days or disabled (0 days) After the last parameter, press the CFM key to confirm the setting and return to measurement mode.
-
Page 18: Mv Calibration
V CALIBRATION V CALIBRATION V CALIBRATION HI 9126 has been precalibrated for mV range at the factory. For optimum accuracy, it is recommended to recalibrate the meter for mV readings at least once a year. Contact your Dealer or the nearest Hanna Customer Service Center for more information. -
Page 19: Batteries Replacement
BATTERIES REPLACEMENT BATTERIES REPLACEMENT BATTERIES REPLACEMENT BATTERIES REPLACEMENT BATTERIES REPLACEMENT The instrument is supplied with batteries. First time you start working with the instrument, insert the supplied batteries in the battery compartment observing the correct polarity (see page 20). At start-up the battery percentage is displayed. If the batteries become weak, the display will flash the battery symbol to advise the user that approximately 1 hour of working time remains. - Page 20 To replace the batteries, follow the next steps: • Turn OFF the instrument. • Open the battery compartment cap (located on the top of the instrument). • Remove old batteries. • Insert three new 1.5V AAA batteries in the battery compartment, observing the polarity on the rear of the instrument.
-
Page 21: Lcd Message Guide
LCD MESSAGE GUIDE LCD MESSAGE GUIDE LCD MESSAGE GUIDE LCD MESSAGE GUIDE LCD MESSAGE GUIDE TAGS & SYMBOLS • Mode tags light up for indicating the corresponding active mode, and blink for warning the user. SETUP on: setup menu mode has been entered. MEASURE on: measurement mode. -
Page 22: Temperature Correlation For Ph Sensitive Glass
TEMPERATURE CORRELATION TEMPERATURE CORRELATION TEMPERATURE CORRELATION TEMPERATURE CORRELATION TEMPERATURE CORRELATION FOR p p p p p H SENSITIVE GLASS H SENSITIVE GLASS H SENSITIVE GLASS H SENSITIVE GLASS H SENSITIVE GLASS The resistance of glass electrodes partially depends on the temperature. The lower the temperature, the higher the resistance. -
Page 23: Electrode Conditioning & Maintenance
E E E E E LECTRODE CONDITIONING & MAINTENANCE LECTRODE CONDITIONING & MAINTENANCE LECTRODE CONDITIONING & MAINTENANCE LECTRODE CONDITIONING & MAINTENANCE LECTRODE CONDITIONING & MAINTENANCE Not present in gel electrodes. PREPARATION PROCEDURE Remove the electrode protective cap. DO NOT BE ALARMED IF ANY SALT DEPOSITS ARE PRESENT. This is normal with electrodes and they will disappear when rinsed with water. - Page 24 For refillable electrodes, if the refill solution (electrolyte) is more than 2½ cm (1") below the fill hole, add the appropriate Electrolyte Solution. MEASUREMENT Rinse the electrode tip with distilled water, submerse it 3 cm (1¼”) in the sample and stir gently for a few seconds. For a faster response and to avoid cross contamination of the samples, rinse the electrode tip with the solution to be tested, before taking any measurements.
-
Page 25: Troubleshooting Guide
T R O U B L E S H O O T I N G G U I D E T R O U B L E S H O O T I N G G U I D E T R O U B L E S H O O T I N G G U I D E T R O U B L E S H O O T I N G G U I D E T R O U B L E S H O O T I N G G U I D E... -
Page 26: Accessories
A C C E S S O R I E S A C C E S S O R I E S A C C E S S O R I E S A C C E S S O R I E S A C C E S S O R I E S pH CALIBRATION SOLUTIONS HI 70004P... - Page 27 HI 7022L Test Solution 470 mV, 500 mL bottle HI 7022M Test Solution 470 mV, 230 mL bottle pH ELECTRODES All electrodes part numbers ending in B are supplied with a BNC connector and 1 m (3.3') cable, as shown below: HI 1043B Glass-body, double junction, refillable, combination pH electrode.
- Page 28 HI 1330B Glass-body, semimicro, single junction, refillable, combination pH electrode. Use: laboratory, vials. 5mm DIA 0.2" 0.2" HI 1330 120 mm 4.7" "S" VERSION HI 1331B Glass-body, semimicro, single junction, refillable, combination pH electrode. Use: flasks. 8 mm 7.5mm DIA 0.3"...
- Page 29 FC 100B Plastic-body (PVDF), double junction, refillable, combination pH electrode. Use: general purpose for food industry. 12 mm 0.5" FC 100 120 mm 4.7" FC 200B Plastic-body (PVDF), open junction, conic, Viscolene, non-refillable, combination pH electrode. Use: meat & cheese. 6 mm 0.25"...
- Page 30 HI 1413B Glass-body, single junction, flat tip, Viscolene, non-refillable, combination pH electrode. Use: surface measurement. 12 mm 0.5" HI 1413 110 mm 4.3" ORP ELECTRODES HI 3131B Glass-body, refillable, combination platinum ORP electrode. Use: titration. 12 mm 0.5" HI 3131 150 mm 5.9"...
- Page 31 24 VAC or 60 VDC. To avoid damage or burns, do not perform any measurement in microwave ovens. Hanna Instruments reserves the right to modify the design, construction and appearance of its products without advance notice.
- Page 32 Hanna Instruments Inc. Highland Industrial Park 584 Park East Drive Woonsocket, RI 02895 USA Technical Support for Customers Tel. (800) 426 6287 Fax (401) 765 7575 E-mail tech@hannainst.com www.hannainst.com Local Sales and Customer Service Office Printed in EUROPE MAN9126V 04/11...
