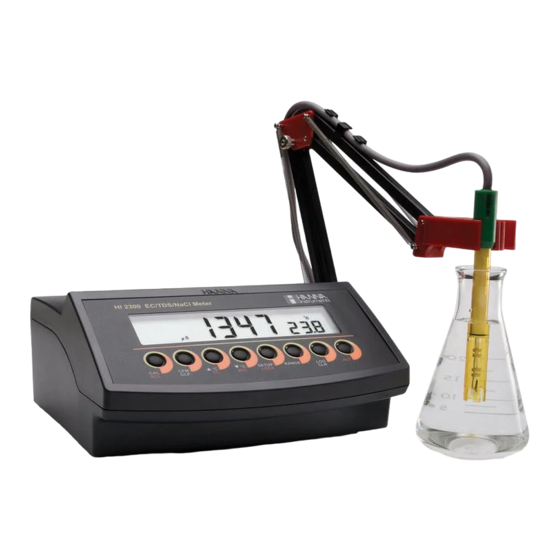

Hanna Instruments HI 2300 Instruction Manual

Ec/tds/nacl bench meter
Hide thumbs Also See for HI 2300:
Table of Contents

Advertisement

Quick Links

Enlarged version
Instruction Manual
HI 2300
EC/TDS/NaCl
Bench Meter
www.ponpe.com
w w w. h a n n a i n s t . c o m
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HI 2300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hanna Instruments HI 2300

Summary of Contents for Hanna Instruments HI 2300

  • Page 1 Instruction Manual HI 2300 EC/TDS/NaCl Bench Meter www.ponpe.com w w w. h a n n a i n s t . c o m...

  • Page 2: Table Of Contents

    WARRANTY HI 2300 is guaranteed for two years against defects in workmanship and materials when used for its intended purpose and maintained according to instructions. Electrodes and probes are guaranteed for six months. This warranty is limited to repair or replacement free of charge.

  • Page 3: Preliminary Examination

    All defective items must be returned in the original packing with the supplied accessories. GENERAL DESCRIPTION The HI 2300 is a logging microprocessor-based Conductivity (EC), TDS, NaCl and Temperature bench meter. The conductivity measurements are compensated for temperature effect manually or automatically with the temperature sensor inside the conductivity probe.

  • Page 4: Functional Description

    FUNCTIONAL DESCRIPTION Front Panel Rear Panel 1) Liquid Crystal Display (LCD). 2) CAL key, to enter and exit calibration mode. RCL key (alternate function), to enter and exit memory recall. 3) CFM/GLP key, to confirm calibration selection, different setup values or to display Good Laboratory Practice information.

  • Page 5: Specifications

    SPECIFICATIONS µ m c 0 0 . 9 9 . µ m c 0 . 0 9 . 9 µ m c 0 0 . 9 9 . 0 . 0 0 . 0 ) * ( 0 . 0 t c a l a u i t c u...
  • Page 6 n i o l s t e p o b i l i t a r ; n o r e f f i a v b a l : e l µ m c / , 0 . i l a a r b n o i t , 0 0...

  • Page 7: Operational Guide

    OPERATIONAL GUIDE POWER CONNECTION Plug the 12 VDC adapter into the power supply socket. Notes: • This instrument uses non volatile memory to retain the calibration parameters and all other settings, even when unplugged. • Make sure a fuse protects the main line. PROBE CONNECTION For EC/TDS or temperature measurements connect the probe to the 7-pin connector.
  • Page 8 The conductivity reading is affected by temperature. Three options for temperature compensation are available in conductivity measurement mode. Note: The compensation is referenced at the selected reference temperature (see SETUP for details, page 21). To select the desired option, press the ALT&ATC keys until the option is displayed on the LCD.

  • Page 9: Auto-Ranging

    • If the reading is out of range, the full-scale value (100.0 for Mtc/Atc mode or 400.0 for uncompensated TDS) will be displayed blinking. • If LOCK was pressed to freeze the LCD range and the reading goes out of range, the full-scale value of the frozen range will be displayed blinking.

  • Page 10: Ecs/Tds Calibration

    EC/TDS CALIBRATION Selectable calibration points for conductivity are 0.00 µS for offset and 84.0 µS, 1413 µS, 5.00 mS, 12.88 mS, 80.0 mS, 111.8 mS for slope. Rinse the probe with calibration solution or deionized water. Submerse the probe into the solution. The sleeve holes must be completely submersed.
  • Page 11 Notes: • If the reading is too far from the expected value, the “WRONG” and “ ” tags will blink. Calibration can not be confirmed. In this case check if the calibration solution has been used correctly or clean the probe by following the Probe Maintenance (see page 31).

  • Page 12: Conductivity Versus Temperature Chart

    CONDUCTIVITY VERSUS TEMPERATURE CHART The conductivity of an aqueous solution is a measure of its ability to carry an electrical current by means of ionic motion. The conductivity invariably increases with increasing temperature. It is affected by the type and number of ions in the solutions and by the viscosity of the solution itself.

  • Page 13: Nacl Calibration

    NaCl CALIBRATION NaCl calibration is a one-point calibration at 100.0% NaCl. Use the HI 7037L calibration solution (sea water solution) as a 100% NaCl calibration solution. Rinse the probe with some of the calibration solution or deionized water. Submerse the probe into HI 7037L solution.

  • Page 14: Good Laboratory Practice (Glp)

    GOOD LABORATORY PRACTICE (GLP) GLP is a set of functions that allows storage and retrieval of data regarding the maintenance and status of the system. All data regarding EC and NaCl calibration is stored for the user to review when necessary. EC CALIBRATION DATA EC calibration data is stored automatically after a successful calibration.
  • Page 15 • The temperature coefficient. • The instrument ID. NaCl CALIBRATION DATA NaCl calibration data is stored automatically after a successful calibration. To view the NaCl calibration data, press GLP when the instrument is in NaCl measurement mode. The instrument will display the time (hh:mm) of the last calibration. Use the ARROW key to scroll through the calibration data.

  • Page 16: Logging Function

    Notes: • If no temperature compensation is selected during calibration, the temperature coefficient is not displayed in GLP. • Press GLP at any moment and the instrument will return to measurement mode. • If calibration has not been performed on the selected range, the instrument displays “no CAL”...
  • Page 17 If the log space is full (500 records), “FULL LOG” message will be displayed and no more data will be saved. When LOG is pressed, a complete set of information is stored: date, time, EC, TDS, NaCl, temperature and calibration data. VIEW LOGGED DATA Press the ALT&RCL keys while in measurement mode to retrieve the stored information.
  • Page 18 In TDS measurement range: In NaCl measurement range: Use the ARROW keys, to scroll through the records. Note: The instrument will automatically skip log records from other measurement ranges. For EC Range • The conductivity value on the primary LCD and the temperature value on the secondary LCD.
  • Page 19 • The cell constant on the primary LCD and “CELL” message on the secondary LCD line. • The temperature coefficient on the primary LCD and “tc” message on the secondary LCD. For TDS Range • The conductivity value on the primary LCD and the temperature value on the secondary LCD.
  • Page 20 For NaCl Range • The conductivity and temperature reading value as described in TDS Range. • The time and date as described in EC Range. • The salinity factor on the primary LCD and the log number on the secondary LCD, with “RCL” and “NaCl” tags displayed. •...

  • Page 21: Setup

    SETUP Setup mode allows viewing and modifying the following instrument parameters. The parameters are: • Cell Constant • TDS Factor • Temperature Compensation Coefficient • Reference Temperature • Current Time (hour & minute) • Current Date (year, month & day) •...
  • Page 22 CELL CONSTANT Press CAL when the cell constant is displayed. The cell constant value and “CFM” tag will start blinking. Press the ARROW keys to change the cell constant (0.500 to 1.700). Press CFM to save the modified cell constant. Press CAL to escape without saving.
  • Page 23 Press the ARROW keys to toggle between 20.0 ºC and 25.0 ºC reference temperature value. Press CFM to save the modified reference temperature value. Press CAL to escape without saving. CURRENT TIME Press CAL when the current time is displayed. The hour and “CFM” tag will start blinking.
  • Page 24 BEEP STATUS Press CAL when the beep status is displayed. Beep status (“On” or “OFF”) and “CFM” tag will start blinking. Press the ARROW keys to change the beep status (On or OFF). Press CFM to save the modified beep status. Press CAL to escape without saving.

  • Page 25: Temperature Calibration (For Technical Personnel Only)

    TEMPERATURE CALIBRATION (for technical personnel only) All the instruments are factory calibrated for temperature. Hanna’s temperature probes are interchangeable and no temperature calibration is needed when they are replaced. If the temperature measurements are inaccurate, temperature recalibration should be performed. For an accurate recalibration, contact your dealer or the nearest Hanna Customer Service Center, or follow the instructions below.
  • Page 26 • Use the ARROW keys to set the reading on the secondary LCD to that of the hot water. • When the reading is stable and close to the selected calibration point, the “CFM” tag will blink. • Press CFM to confirm. The instrument memorize calibration and restart in measurement mode.

  • Page 27: Pc Interface

    Make sure that your instrument is switched off and plug one connector to the instrument USB socket and the other to the USB port of your PC. Note: If you are not using Hanna Instruments HI 92000 software, please see the following instructions.
  • Page 28 value (xx): • xx=06 EC range • xx=07 TDS range • xx=08 NaCl range The instrument sends the “ACK” (6) character every time a command is recognized and a “NAK” (21) character for invalid commands. COMMANDS REQUIRING AN ANSWER Causes the instrument to send a complete set of readings in according with the current range: •...
  • Page 29 • EC calibration data (if available), which contains: • the number of calibrated standards (1 char) • the offset factor, with sign and decimal point (7 chars) • the cell constant, with sign and decimal point (7 chars) • the calibration time, yymmddhhmmss (12 chars) •...
  • Page 30 PAR Requests the setup parameters setting. The answer string contains: • Instrument ID (4 chars) • SETUP information (2 chars): 8 bit hexadecimal encoding. • 0x01 - beep ON (else OFF) • 0x04 - degrees Celsius (else degrees Fahrenheit) • cell constant, with sign and decimal point (6 chars) •...

  • Page 31: Probe Maintenance

    PROBE MAINTENANCE EC Probe Maintenance Rinse the probe with clean water after measurements. If a more thorough cleaning is required, remove the probe sleeve and clean the probe with a cloth or a nonabrasive detergent. Make sure to reinsert the sleeve onto the probe properly and in the right direction.

  • Page 32: Troubleshooting Guide

    TROUBLESHOOTING GUIDE i d a s g n u l f u t c e t a b o r e e l t o n e s n h t r e e l . e v i o n .

  • Page 33: Accessories

    ACCESSORIES CONDUCTIVITY SOLUTIONS 12880 µS/cm (µmho/cm), 20 mL sachets (25 pcs.) HI 70030C 1413 µS/cm (µmho/cm), 20 mL sachets (25 pcs.) HI 70031P 84 µS/cm (µmho/cm), 20 mL sachets (25 pcs.) HI 70033P 5000 µS/cm (µmho/cm), 20 mL sachets (25 pcs.) HI 70039P 12880 µS/cm (µmho/cm), 230 mL bottle HI 7030M...
  • Page 34 OTHER ACCESSORIES HI 710005 Voltage adapter from 115 VAC to 12 VDC (USA plug) HI 710006 Voltage adapter from 230 VAC to 12 VDC (European plug) HI 710012 Voltage adapter from 240 VAC to 12 VDC (UK plug) HI 710013 Voltage adapter from 230 VAC to 12 VDC (South Africa plug) HI 710014...
  • Page 35 24 VAC or 60 VDC. To avoid damage or burns, do not perform any measurement in microwave ovens. Hanna Instruments reserves the right to modify the design, construction or appearance of its products without advance notice. sale@ponpe.com...
  • Page 36 Hanna Instruments Inc. Highland Industrial Park 584 Park East Drive Woonsocket, RI 02895 USA Technical Support for Customers Tel. (800) 426 6287 Fax (401) 765 7575 E-mail tech@hannainst.com www.hannainst.com Local Sales and Customer Service Office Printed in EUROPE ROMANIA MAN2300Y 09/12...
