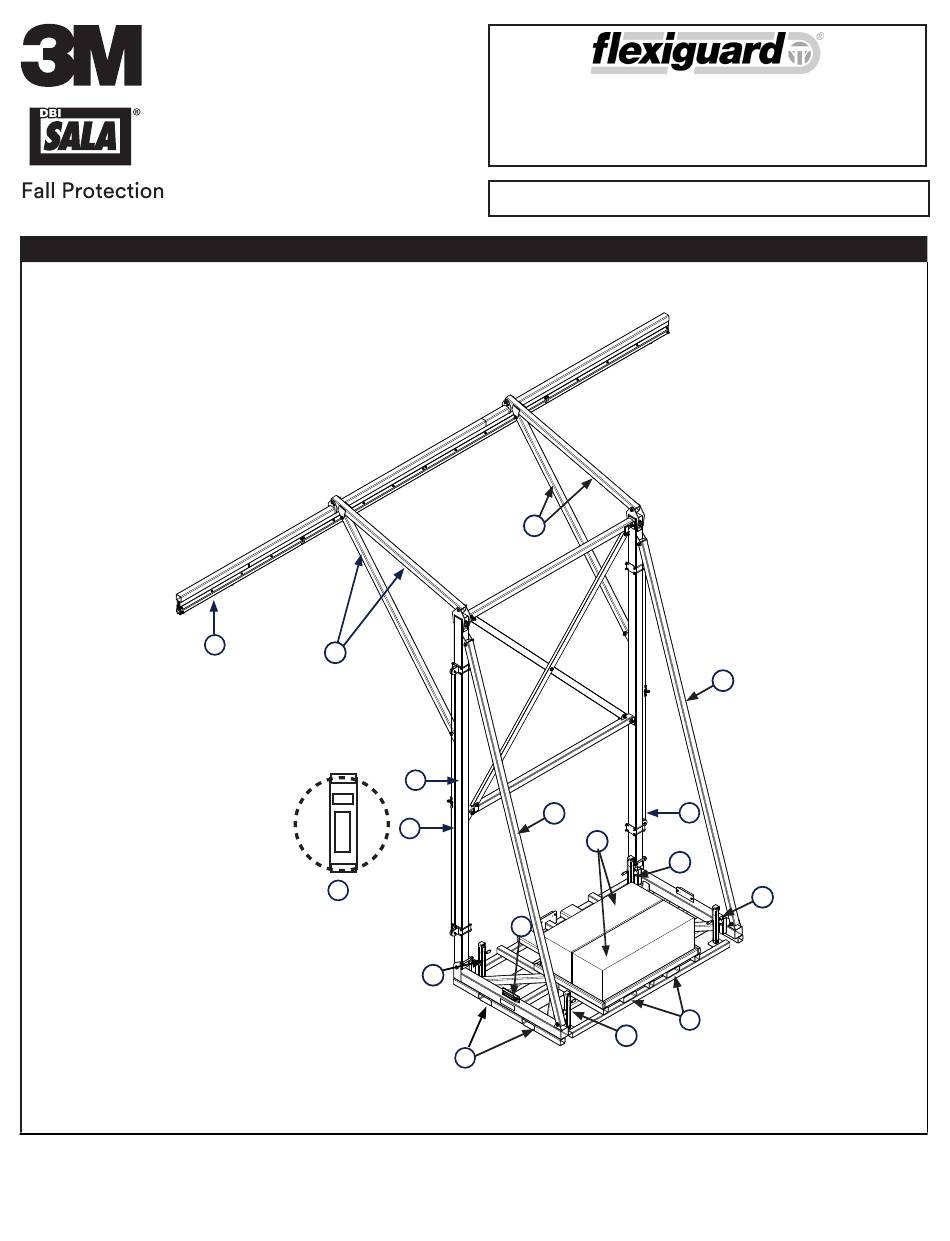

- Page 1 Fall Arrest System Model Numbers: 8517760, 8517761, 8517762, 8517763 USER INSTRUCTION MANUAL FORM NO: 5903228 © 3M 2019 REV: F...
- Page 2 ≤ 6 ft (1.82m ≤ 6 ft ≤ 6 ft (1.82m) (1.82m) ≤ 6 ft (1.82m ß H - ft (m) à ft (m) 6 (1.8) (0.0) (0.3) (0.6) (0.9) (1.2) (1.5) (0.0) (0.0) (0.3) (0.6) (0.9) (1.2) (1.5) (1.8) (0.3) (0.3) (0.4)
- Page 3 8522028 * 2.77” (70.36 mm) 6.50” (165.10 mm)
-
Page 4: Safety Information
Ensure there is adequate fall clearance when working at height. Never modify or alter your fall protection equipment. Only 3M or parties authorized in by 3M may make repairs to the equipment. Prior to use of fall protection equipment, ensure a rescue plan is in place which allows for prompt rescue if a fall incident occurs. -
Page 5: Product Description
Prior to installation and use of this equipment, record the product identification information from the ID label in the Inspection and Maintenance Log at the back of this manual. PRODUCT DESCRIPTION: The Counterweight Rail Fall Arrest System combines easy access to elevated work areas with fall protection from the ground for the duration of the work performed. -
Page 6: Product Application
“Inspection and Maintenance Log”. AFTER A FALL: If the Flexiguard Anchorage System is subjected to the forces of arresting a fall, it must be removed from the field of service immediately and replaced or inspected by an Authorized 3M Representative. SYSTEM CONSIDERATIONS ANCHORAGE: Structure on which the Flexiguard Anchorage System is placed or mounted must meet the Anchorage specifications defined in Table 1. - Page 7 3M connectors (snap hooks and carabiners) are designed to be used only as specified in each product’s user’s instructions. See Figure 6 for examples of inappropriate connections. Do not connect snap hooks and carabiners: To a D-ring to which another connector is attached.
-
Page 8: Installation
This system is designed to be used on level ground only. If you have any questions regarding if your terrain is safe for system use, please contact 3M. Do not attempt to adjust the height of the rail system by setting items under the leveling feet to gain more height. - Page 9 SERVICE: Only 3M or parties authorized in writing by 3M may make repairs to this equipment. If the Flexiguard Fall Arrest System has been subject to fall force or inspection reveals an unsafe or defective conditions, remove the system from service and contact 3M regarding replacement or repair.
- Page 10 LABELS Labels must be replaced if they are not fully legible. WARNING APPROXIMATE WEIGHT 11,850 LBS / 5,375 kg PORTABLE COUNTERWEIGHTED FlexiGuard RAIL SYSTEM CUSTOM FALL PROTECTION SOLUTIONS OPERATORS INSTRUCTIONS 9511857 Rev. A STEP 1: ENGAGE THE FRONT OR SIDE FORK POCKETS WITH A FORKLIFT CAPABLE OF SUPPORTING THE ENTIRE SYSTEM WEIGHT.
- Page 11 Any areas of concern should be reviewed by a Qualified Person (or contact 3M). Inspect Jacks & Inspect the Jacks for cracks, dents, bends, etc. Ensure the appropriate amount of counterweight Counterweight is in place.
- Page 12 LIMITED REMEDY: Upon written notice to 3M, 3M will repair or replace any product determined by 3M to have a factory defect in workmanship or materials. 3M reserves the right to require product be returned to its facility for evaluation of warranty claims. This warranty does not cover product damage due to wear, abuse, misuse, damage in transit, failure to maintain the product or other damage beyond 3M’s control.
