F-20 / F-21

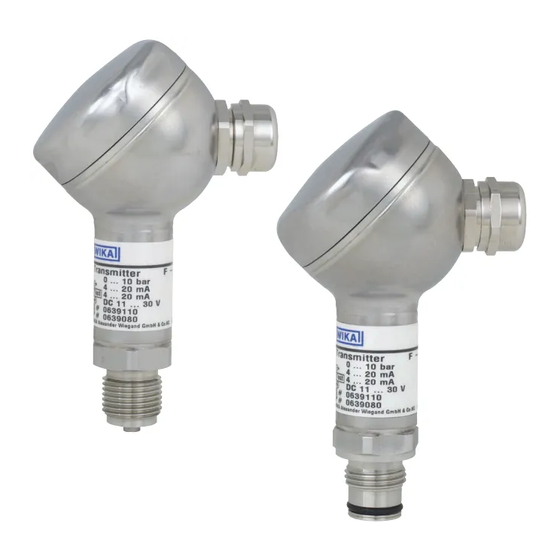

Pressure Transmitter with Field Case
Druckmessumformer in Feldgehäuseausführung
WIKA Alexander Wiegand GmbH & Co. KG
Alexander-Wiegand-Straße 30
63911 Klingenberg
Germany
/
Tel.
(+49) 93 72/132-295
Fax
(+49) 93 72/132-706
E-Mail support-tronic@wika.de
www.wika.de
F-20
Operating instructions
Betriebsanleitung
F-21
GB
D
GB
Advertisement
Related Manuals for WIKA F-20
Summary of Contents for WIKA F-20
- Page 1 Operating instructions Betriebsanleitung F-20 / F-21 Pressure Transmitter with Field Case Druckmessumformer in Feldgehäuseausführung F-20 F-21 WIKA Alexander Wiegand GmbH & Co. KG Alexander-Wiegand-Straße 30 63911 Klingenberg Germany Tel. (+49) 93 72/132-295 (+49) 93 72/132-706 E-Mail support-tronic@wika.de www.wika.de...
-
Page 6: Specifications
Ground terminals internal for brass nickel-plated and {stainless steel} and {stainless steel conduit} threaded connection Internal transmission fluid Synthetic oil {Halocarbon oil for oxygen applications} {Listed by FDA for Food & Beverage} Not for F-20 with pressure ranges > 25 bar... - Page 7 Accuracy { } for pressure ranges ≥ 0.25 bar In an oxygen version model F-21 is not available. In an oxygen version model F-20 is only available in gauge pressure ranges Including non-linearity, hysteresis, non-repeatability, zero point and full scale error ®...
- Page 9 Problem Possible cause Remedy Power supply failure No output Check power supply Open wiring Check continuity Wiring reversed Correct polarity No pressure or port blocked Check pressure port Transmitter failure due to wrong Supply voltage or power surge Replace transmitter Pressure port blocked Output steady as pressure Check pressure port...
