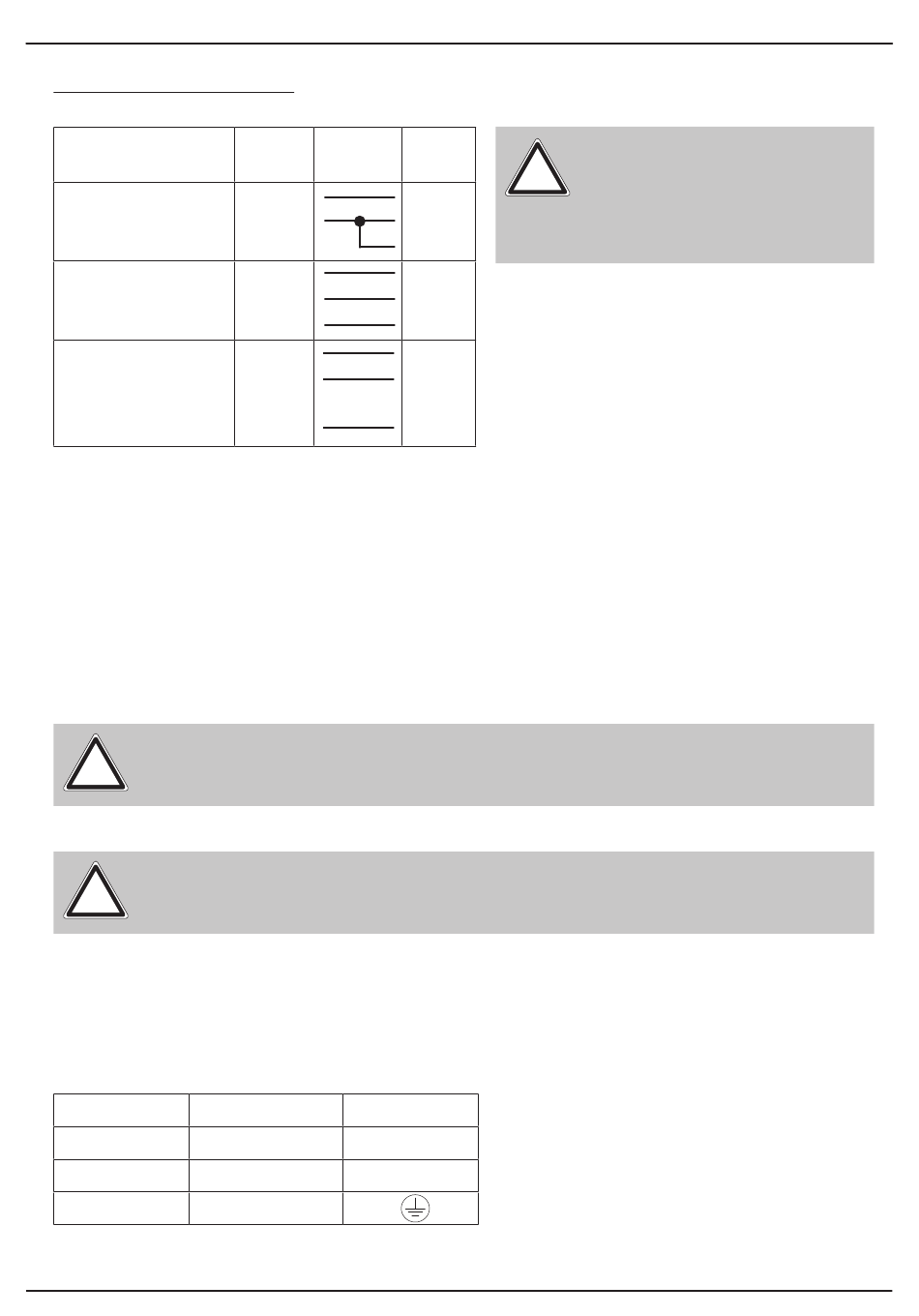

Connection outside Europe:
The P18 Wash may only be operated on the following power supply systems:
2 wires, 1 phase
3 wires, 1 phase
4 wires, 3 phases

4.2 Mains connection

Connected loads: Voltage 100-240 V, frequency 50 - 60 Hz, power max. 1200 VA
The electrical safety and function of the device can only be guaranteed if it is connected to a properly
installed protective conductor system. It is very important that this basic safety requirement
is met. If in doubt, have the electrical installation checked by a specialist. The manufacturer
cannot be held responsible for damage caused by a missing or interrupted protective conductor
(e.g. electric shock)! Only use the device when it is completely assembled so that no electrical
components can be touched. (Danger 100-240 V)
If you have observed the listed points, you can plug in the devices or have them connected
to the mains by a specialist.
! ATTENTION: The P18 Wash can light up immediately if standalone operation is acti-
vated or a DMX signal is present!

4.3 Wiring the power feed-through

!
ATTENTION: Only have it carried out by a specialist!
The P18 Wash has a powerCON-TRUE1 out power output. Depending on the local conditions
several devices can be linked by powerCON-TRUE1 in and powerCON-TRUE1 out. Connect a
maximum of two (when using 230V/16A) P18 Washs in a row.
Use an approved three-core cable with a cross-section of at least 1.5 mm². Cabling must be
done with the original Neutrik coded plugs. The installation instructions of the manufacturer
(www.neutrik.com) and the colour coding of the cable must be observed.
Function
Wire colour
Phase
Brown
Neutral wire
Blue
Protective earth "PE"
Green/Yellow
P18
Mains
Wash
L
L
N
N
PE
L
L
N
N
L
L L
1
L N
2
L
3
PE
N
Symbol
"L"
"N"
P1 8 Wash
ATTENTION:
!
In Canada, the P18 Wash may only
be operated in a 2-wire, 1 phase
network with a maximum voltage of
120V!
