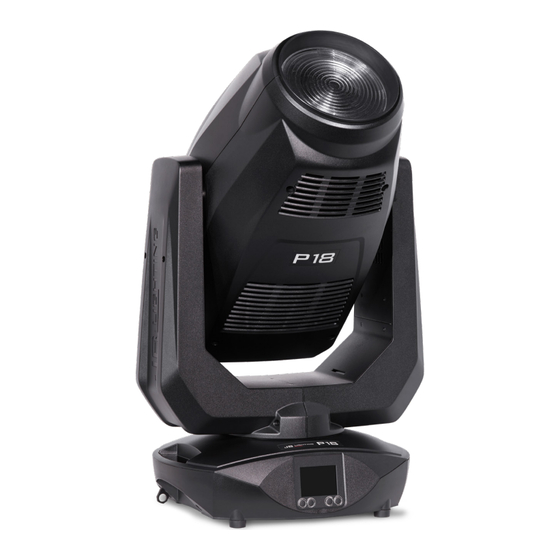

JB-Lighting P18 Wash HP Operating Instructions Manual

Hide thumbs Also See for P18 Wash HP:
Table of Contents

Advertisement

Quick Links

Download this manual
P1 8 Wash
Operating instructions
Version 1.12
Software >= 1.1.0

Advertisement

Table of Contents
loading

Related Manuals for JB-Lighting P18 Wash HP

Summary of Contents for JB-Lighting P18 Wash HP

  • Page 1 P1 8 Wash Operating instructions Version 1.12 Software >= 1.1.0...

  • Page 2: Table Of Contents

    P1 8 Wash Content 1. Introduction ............. .03 1.1 P18 Wash models .

  • Page 3: Introduction

    The P18 Wash is available in 3 models. The models differ in the light module and partly in the color filters and in the CTC filters. The differences can be found in the DMX channel functions. - P18 Wash HP (High Power) - P18 Wash HC (High CRI)

  • Page 4: Dimensions

    P1 8 Wash 2. Dimensions 258,4 258,4 258,4 Farbe: Lichtanlagentechnik GmbH Oberfläche: Material: Sallersteig 15, 89134 Blaustein Tel.: 07304 / 9617-0 Abmessung: Blechdicke: Fax.: 07304 / 9617-99 Farbe: Farbe: Datum Name Lichtanlagentechnik GmbH Lichtanlagentechnik GmbH Kuehngruen Erstellt 17.01.2018 Oberfläche: Oberfläche: Material: Sallersteig 15, 89134 Blaustein Sallersteig 15, 89134 Blaustein...

  • Page 5: Product Overview

    P1 8 Wash 3. Product overview Bottom cover Top cover Arm cover Handles LCD display Function keys Farbe: Lichtanlagentechnik GmbH Oberfläche: Material: Sallersteig 15, 89134 Blaustein Tel.: 07304 / 9617-0 Blechdicke: Abmessung: Fax.: 07304 / 9617-99 Datum Name Head Kuehngruen Erstellt 17.01.2018 Allgemeintoleranzen...

  • Page 6: Safety Instructions

    ATTENTION: This device is only suitable for professional use! Protection class IP 20 - only for use in dry environments (indoors)! ATTENTION: JB-Lighting Lichtanlagentechnik GmbH does not authorise the use of its devices in life support systems. Life-supporting systems are systems whose purpose is to maintain or stabilise life and whose defect or malfunction may result in death or injury to persons.
  • Page 7 P1 8 Wash ATTENTION: This fixture corresponds to protection class I. For this reason, this spotlight must be connected to a mains socket with earthing contact. Never connect this device to a dimmer pack. During first use, some smoke and odour may occur. This is normal and does not necessarily mean that the device is defective.

  • Page 8: Installation

    P1 8 Wash ATTENTION: Allow a fixture distance of at least 1 metres from easily flammable ma- terial and the distance between the light emission and the surface to be illuminated must be at least 4 meters. The maximum ambient temperature of 45°C must not be exceeded. ATTENTION: The front lens must be replaced if it is visibly damaged to the extent that its function is impaired, e.g.

  • Page 9: Mains Connection

    P1 8 Wash Connection outside Europe: The P18 Wash may only be operated on the following power supply systems: ATTENTION: Mains Wash In Canada, the P18 Wash may only be operated in a 2-wire, 1 phase 2 wires, 1 phase network with a maximum voltage of 120V! 3 wires, 1 phase...

  • Page 10: Signal Connections

    P1 8 Wash 5.5 Signal connections 5.5.1 DMX cabling The DMX cabling (signal lines) should be done with a 4-pin cable with shielding. We recommend a DMX cable (110 Ohm, 4x0.22mm ), alternatively a 2-pole micro cable can be used. The plugs and sockets are 5-pin XLR connectors, which can be purchased in specialist shops.

  • Page 11: Mounting The Devices

    ✔ mounting plate To mount the unit on a trussing system use two of the original JB-Lighting omega brackets with original Camloc-connectors. You have following four possibilities to mount the omega brackets. 258,4 The Camlocs must snap in to be locked properly. Ensure that the structure (for example a truss system ) to which you are attaching the fixture is secure.

  • Page 12: Control Panel

    P1 8 Wash 6. Control panel The P18 Wash has a graphic colour display that can be rotated 180° when installed in a suspended position. The display can be rotated in the PERSONALITY MENU or via short cut ENTER + UP in the main screen.
  • Page 13 "JB-Lighting" is displayed means no DMX signal is present. A very rapidly flashing display illumination when "JB-Lighting" is displayed means that a new error has been stored in the "ERROR LIST", also an error message in the display (e.g. *PAN TIMEOUT) indicates this current error.

  • Page 14: Menu Overview

    P1 8 Wash 6.1 Menu overview grey - corresponds to the default setting ENTER ENTER ENTER FACTORY DEF. LOAD DEFAULTS SURE? USER DEFAULTS LOAD DEFAULTS SURE? SAVE DEFAULTS SURE? PASSWORD DMX / NET ADDR DMX ADDRESS ADDRESS +/- ARTNET ADDRESS ADDRESS +/- SACN ADDRESS ADDRESS +/-...
  • Page 15 P1 8 Wash RESET FIXTURE SURE? SERVICE ERROR LIST LIST PAN TIMEOUT COUNT: 1 CLEAR? CLEAR SURE? FUNCTION TEST START TEST TEST RUNNING DMX TEST DMX CHANNEL CH 001: --- INIT PAN/TILT SURE? DISPLAY CONTR. D. CONTR: +000 +/- FINE ADJUST OFS PAN OFS PAN +/- OFS TILT...

  • Page 16: Factory Defaults - Factory Settings

    P1 8 Wash SOFTWARE VER. INFO FIXTURE ID TOT OP. TIME TOT LAMP TIME TOT BAT CHARGE T. TEMP BASE LCD ACTUAL RESET? TEMP BASE PS ACTUAL RESET? TEMP HEAD MAIN ACTUAL RESET? TEMP HEAD DRV ACTUAL RESET? TEMP HEAD LED ACTUAL RESET? TEMP HEAD AMB.
  • Page 17 P1 8 Wash Under IP ADDRESS -> DEFAULT IP this can be changed from the network 10.xxx.xxx.xxx to a network 2.xxx.xxx.xxx. For your own self-definable IP address, you can set your own desired IP address under IP ADDRESS -> USER-IP. This address is divided into BYTE1 to BYTE 4 and can be set one after the other.
  • Page 18 P1 8 Wash There is no danger to the life of the device in any mode, as the P18 Wash has a temperature safe- ty shutdown. In addition, the LED module is switched off from an ambient temperature of 60°C! PAN TILT SPEED - setting pan/tilt speed In the PAN TILT SPEED menu you can set the maximum speed, the acceleration and thus also the movement volume of the P18 Wash.

  • Page 19: Standalone Operation

    P1 8 Wash LED FADE OUT - type of dimming Used to set how to dim the lower range from 0-5%. STANDARD: When dimming the headlamp, all LED's dim out at the same time. SOFT: When the headlamp is dimmed, the LED's are dimmed out in groups (in a row) one row after the other.

  • Page 20: Info-Menu

    P1 8 Wash Operation via master-slave function: Connect the P18 Wash via DMX lines and activate the REMOTE menu item for all slave devices. To do this, navigate in the STANDALONE menu to the REMOTE sub-menu. Activate the REMOTE function by pressing and holding “ENTER”, and also pressing “ESC”. The spotlight is in slave mode when the display shows the status REMOTE INACTIVE or REMOTE ACTIVE.

  • Page 21: Control Options

    P1 8 Wash 7. Control options 7.1 DMX 7.1.1 Operating modes The P18 Wash has 2 different DMX modes. The respective mode can be set in the PERSONALITY- DMX MODE menu item. The set mode is displayed in the main menu. Mode 1(M1) Mode 2 (M2) Channel 1...
  • Page 22 P1 8 Wash Channel 40 Fine magenta Channel 41 Yellow Channel 42 Fine yellow Channel 43 CTO (CTB model WW) Channel 44 CTO fine (CTB fine model WW) Channel 45 Sparkle Channel 46 Sparkle speed Channel 47 Frost 1 Channel 48 Frost 2 Channel 49 Pan/tilt speed...

  • Page 23: Dmx Channel Assignment Mode 1 And Mode 2

    P1 8 Wash 7.1.2 DMX channel assignment Mode 1 and Mode 2 Function Pan (X) movement 546.74° 000-255 Pan (X) fine (16 Bit) 000-255 Tilt (Y) movement 281.16° 000-255 Tilt (Y) fine (16 Bit) 000-255 Control channel To enable uniform dimming manually via faders for all light mixing consoles, 5 diffe- rent settings for the DMX smoothing are available.
  • Page 24 P1 8 Wash Setting for maximum DMX smoothing Dimmer fade out via fader (fast - slow) 128-135 DIMMER CURVE - selection of dimmer curve LINEAR - linear dimmer curve 136-136 SQUARE - exponential dimmer curve 137-137 SQUARE INVERSE - exponential inverse dimmer curve 138-138 not used 139-139...
  • Page 25 P1 8 Wash Shutter Shutter closed 000-015 Shutter open 016-095 Open pulsing shutter >20Hz (rapid - slow) 096-110 Shutter open 111-111 Fade effect with dimmer (slow - rapid) 112-125 Shutter open 126-126 Shutter closed 127-127 Open pulsing shutter <20Hz (rapid - slow) 128-142 Shutter open 143-143...
  • Page 26 P1 8 Wash Aperture 2a fine (16 Bit) 000-255 Aperture 2b 0-100% 000-255 shaper rotation Aperture 2b fine (16 Bit) 000-255 center DMX 128 DMX 000 DMX 255 -45° 45° Aperture 3a 0-100% 000-255 Aperture 3a fine (16 Bit) 000-255 Aperture 3b 0-100% 000-255 Aperture 3b fine (16 Bit)
  • Page 27 P1 8 Wash Cyan (8 Bit) 0-100% 000-255 Fine cyan (16 Bit) 000-255 Magenta (8 Bit) 0-100% 000-255 Fine magenta (16 Bit) 000-255 Yellow (8 Bit) 0-100% 000-255 Fine yellow (16 Bit) 000-255 CTO (8 Bit) 0-100% (CTB model WW (8 Bit) 0-100%) 000-255 Fine CTO (16 Bit) (Fine CTB model WW (16 Bit)) 000-255...

  • Page 28: Control Channel

    P1 8 Wash 7.1.3 Control channel Via the control channel different functions of the fixture can be permanently switched. The follo- wing functions can be switched via the control channel. Response of the headlamp when dimming via faders BACKLIGHT MODE - display backlight DISPLAY ORIENTATION - display orientation MAIN SCREEN MODE - main screen view USER FIXTURE ID SET - set headlight number...

  • Page 29: Rdm

    P1 8 Wash 7.5 RDM The P18 Wash can communicate via RDM (Remote Device Management) in accordance with ESTA American National Standard E1.20-2006. RDM is a bidirectional communication protocol for use in DMX512 control systems. It is the open standard for the configuration and status monitoring of DMX-512 devices.

  • Page 30: Manufacturer Specific Rdm Parameter Ids

    P1 8 Wash 7.5.4 Manufacturer specific RDM parameter IDs RDM parameter ID DISCO- Note VERY RDM configuration Battery Charge Hours ✔ Error Number ✔ Error ✔ Select Next Error ✔ Remove Error ✔ Remove New Error Flag ✔ User Defaults ✔...

  • Page 31: Service

    The P18 Wash stores all occurring errors internally. An error message can have a harmless cause. If you experience frequent error messages, please contact your dealer or the JB-Lighting service department. All error messages are displayed with the respective frequency and can be deleted.

  • Page 32: Cleaning The Device

    P1 8 Wash 8.2 Cleaning the device ATTENTION: Allow the device to cool down and disconnect the device from the mains before opening the device. Touching live parts (high voltage) can give you an electric shock. You should check the function of the fans in the head and foot at regular intervals.

  • Page 33: Service And Maintenance

    P1 8 Wash 8.3 Service and maintenance ATTENTION: Allow the device to cool down and disconnect the device from the mains before opening the device. Touching live parts (high voltage) can give you an electric shock. 8.5.1 Inspection of lubricated moving parts On the P18 MK2 Wash, the zoom/focus guide rails and the shutter slide bearings should be checked at regular intervals - once a year - for sufficient lubrication.

  • Page 34: Overview Of Error Codes For All Fixtures

    P1 8 Wash 9. Overview of error codes for all fixtures PAN TIMEOUT TILT TIMEOUT Tilt GOBO1 TIMEOUT Gobo wheel 1 position GROT1 TIMEOUT Gobo wheel 1 rotation GOBO2 TIMEOUT Gobo wheel 2 position GROT2 TIMEOUT Gobo wheel 2 rotation COLOR TIMEOUT Color wheel CYAN TIMEOUT...
  • Page 35 P1 8 Wash TSENS BPS ER Sensor Error Base Power Supply AC/DC TSENS BLCD ER Sensor Error Base LCD TSENS BAIR ER Sensor Erroe Base Air SPARX ONLY TSENS HMAIN ER Sensor Error Head Main PCB TSENS HDRV ER Sensor Error Head LED Driver PCB TSENS HLED ER Sensor Error Head LED TSENS HAIR ER...

  • Page 36: Specifications

    P1 8 Wash 10. Specifications Dimensions and weight Length ..............307 mm Width .

  • Page 37: Declaration Of Conformity

    Directive: 2014/30/EU Electromagnetic compatibility (Directive 2014/30/EU of the European Parliament and of the Council of 26/02/2014 to approximate the laws of the Member States relating to electromagnetic compatibility) The manufacturer, JB-Lighting Lichtanlagentechnik GmbH Sallersteigweg 15 89134 Blaustein-Wippingen P18 Wash declares that the product: complies with the essential protection requirements of the directives.
  • Page 38 P1 8 Wash - 38 -...
  • Page 39 P1 8 Wash - 39 -...
  • Page 40 JB-Lighting Lichtanlagentechnik GmbH Sallersteig 15 89134 Blaustein Tel. +49 7304 9617-0 Fax. +49 7304 9617-99 info@jb-lighting.de www.jb-lighting.de...
