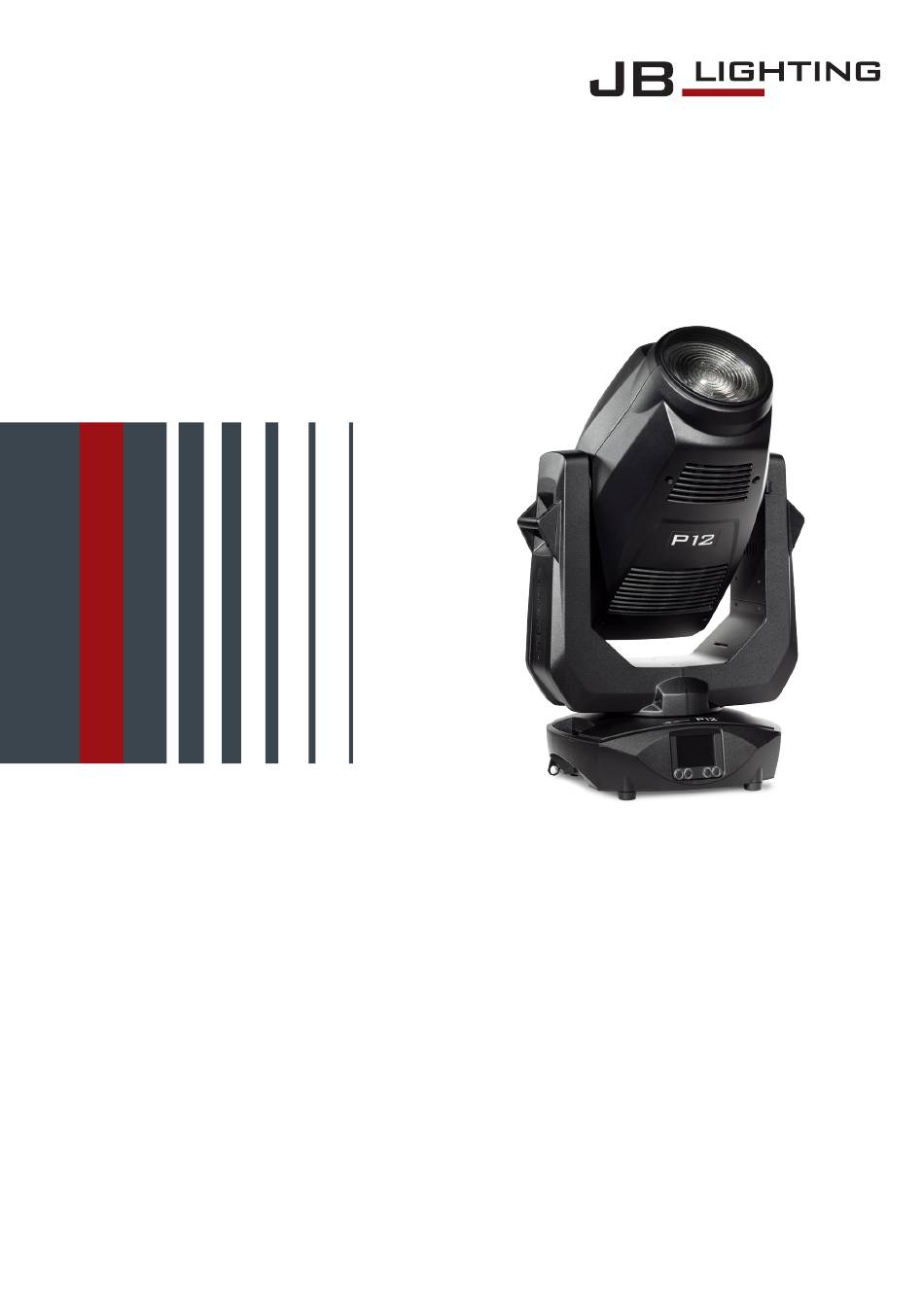

P1 2 Wash
Operating instructions
Version 1.03
Software >= 1.1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P12 Wash and is the answer not in the manual?

Questions and answers

Related Manuals for JB-Lighting P12 Wash

Summary of Contents for JB-Lighting P12 Wash

  • Page 1 P1 2 Wash Operating instructions Version 1.03 Software >= 1.1.0...
  • Page 2 P1 2 Wash - 02 -...

  • Page 3: Table Of Contents

    3.1 P12 Wash models ........

  • Page 4: Dimensions

    P1 2 Wash 1. Dimensions 223,65 223,65 223,65 223,6 Farbe: Lichtanlagentechnik GmbH Oberfläche: Material: Sallersteig 15, 89134 Blaustein Farbe: Farbe: Abmessung: Tel.: 07304 / 9617-0 Blechdicke: Fax.: 07304 / 9617-99 Lichtanlagentechnik GmbH Oberfläche: Lichtanlagentechnik GmbH Material: Oberfläche: Datum Name Sallersteig 15, 89134 Blaustein Sallersteig 15, 89134 Blaustein Kuehngruen Erstellt...

  • Page 5: Product Overview

    P1 2 Wash 2. Product overview Bottom cover Top cover Arm cover Handles LCD display Function keys Farbe: Lichtanlagentechnik GmbH Oberfläche: Material: Sallersteig 15, 89134 Blaustein Tel.: 07304 / 9617-0 Abmessung: Blechdicke: Fax.: 07304 / 9617-99 Head Datum Name Kuehngruen Erstellt 14.02.2019 Front lens...

  • Page 6: Introduction

    3.1 P12 Wash models The P12 Wash is available in 3 models. The models differ in the light module and partly in the color filters and in the CTC filters. The differences can be found in the DMX channel functions.
  • Page 7 If the P12 Wash is operated below 0°, gobo/prism swapping and gobo/prism rotation are reduced in speed. This is a protective mechanism of the P12 Wash, as at low temperatures the lubricant is relatively viscous in the rotational mechanism and can therefore cause the effect to be slurred.

  • Page 8: Unpacking The Device

    TRUE1 plug (only the powerCON-TRUE1 plug is included in the US version). The installation of the safety plug or  the connection of the P12 Wash to the power supply (100-240 Volt, 50 - 60 Hertz) must be carried out by an authorised specialist.

  • Page 9: Mains Connection

    4.3 Wiring the power feed-through ATTENTION: Only have it carried out by a specialist! The P12 Wash has a powerCON-TRUE1 out power output. Depending on the local conditions several devices can be linked by powerCON-TRUE1 in and powerCON-TRUE1 out. Connect a maximum of four (when using 230V/16A) P12 Wash's in a row.

  • Page 10: Signal Connections

    Special cables with etherCON connectors are recommended by Neutrik. The two sockets on the P12 Wash are connected to each other via a switch. Up to 10 devices can be connected in series without any delay. Of course, the spotlights can also be supplied in a star configuration via an external switch.

  • Page 11: Mounting The Devices

    ✔ ✔ To mount the unit on a trussing system use two of the original JB-Lighting omega brackets with original Camloc-connectors. You have following four possibilities to mount the omega brackets. 223,65 The Camlocs must snap in to be locked properly. Ensure that the structure (truss) to which you are attaching the fixture is secure.

  • Page 12: Control Panel

    P1 2 Wash 5. Control panel The P12 Wash has a graphic colour touch display that can be rotated 180° when installed in a suspended position. The display can be rotated in the PERSONALITY MENU or via short cut ENTER + UP in the main screen.
  • Page 13 ERROR LIST does the P12 Wash start again without error signalling. If errors occur again and again contact the dealer / distributor or our service department. If the P12 Wash receives a DMX signal, the display illumination goes out after 30 seconds. DMX addressing In the main menu, the DMX address can be set directly by pressing the up/down keys.

  • Page 14: Menu Overview

    P1 2 Wash 5.1 Menu overview grey - corresponds to the default setting ENTER ENTER ENTER FACTORY DEF. LOAD DEFAULTS SURE? USER DEFAULTS LOAD DEFAULTS SURE? SAVE DEFAULTS SURE? PASSWORD DMX / NET ADDR DMX ADDRESS ADDRESS +/- ARTNET ADDRESS ADDRESS +/- SACN ADDRESS ADDRESS +/-...
  • Page 15 P1 2 Wash SERVICE RESET FIXTURE SURE? ERROR LIST LIST PAN TIMEOUT COUNT: 1 CLEAR? CLEAR SURE? FUNCTION TEST START TEST TEST RUNNING DMX TEST DMX CHANNEL CH 001: --- INIT PAN/TILT SURE? DISPLAY CONTR. D. CONTR: +000 +/- FINE ADJUST OFS PAN OFS PAN +/- OFS TILT...

  • Page 16: Factory Defaults - Factory Settings

    5.3 USER DEFAULTS - User settings If the user has set the P12 Wash in the PERSONALITY menu to their personal settings, these can be saved and loaded in the USER DEFAULTS menu. In order to prevent unintentional alteration of the data, you must enter the following password during the saving process: Buttons "ESC...
  • Page 17 LED module runs cooler and thus more “stress-free”. There is no danger to the life of the device in any mode, as the P12 Wash has a temperature safe- ty shutdown. In addition, the LED module is switched off from an ambient temperature of 60°C!
  • Page 18 In the menu item EFFECT SPEED you can set the maximum speed, the effects and thus also the volume of the effects of the P12 Wash. The following setting options are available. WHISPER: The speed of the effects is reduced so much that a volume of 29dB (A) is not exceed- SILENT: The speed of the effects is slightly faster and thus a bit louder than with the Whisper setting.

  • Page 19: Standalone Operation

    5.6 STANDALONE operation In standalone operation, up to 20 program steps can be stored in the P12 Wash, which can then run in an endless loop. The images can be saved in two ways. Either you program the desired DMX values directly on P12 Wash and save them, or you set the DMX values via a connected DMX console and then store them in the P12 Wash.

  • Page 20: Info-Menu

    P1 2 Wash Operation via master-slave function: Connect the P12 Wash via DMX lines and activate the REMOTE menu item for all slave devices. To do this, navigate in the STANDALONE menu to the REMOTE sub-menu. Activate the REMOTE function by pressing and holding “ENTER”, and also pressing “ESC”. The spotlight is in slave mode when the display shows the status REMOTE INACTIVE or REMOTE ACTIVE.

  • Page 21: Control Options

    6. Control options 6.1 DMX 6.1.1 Operating modes The P12 Wash has 2 different DMX modes. The respective mode can be set in the PERSONALITY- DMX MODE menu item. The set mode is displayed in the main menu. Mode 1(M1)
  • Page 22 P1 2 Wash Channel 41 Cyan fine Channel 42 Magenta Channel 43 Magenta fine Channel 44 Yellow Channel 45 Yellow fine Channel 46 Channel 47 CTO fine Channel 48 Sparkle Channel 49 Sparkle speed Channel 50 Frost 1 Channel 51 Frost 2 Channel 52 Pan/tilt speed...

  • Page 23: Dmx Channel Assignment Mode 1 And Mode 2

    P1 2 Wash 6.1.2 DMX channel assignment Mode 1 and Mode 2 Function Pan (X) movement 546.74° 000-255 Pan (X) fine (16 Bit) 000-255 Tilt (Y) movement 281.16° 000-255 Tilt (Y) fine (16 Bit) 000-255 Control channel To enable uniform dimming manually via faders for all light mixing consoles, 5 diffe- rent settings for the DMX smoothing are available.
  • Page 24 P1 2 Wash Setting for maximum DMX smoothing Dimmer fade out via fader (fast - slow) 128-135 DIMMER CURVE - selection of dimmer curve LINEAR - linear dimmer curve 136-136 SQUARE - exponential dimmer curve 137-137 SQUARE INVERSE - exponential inverse dimmer curve 138-138 not used 139-139...
  • Page 25 P1 2 Wash Shutter Shutter closed 000-015 Shutter open 016-095 Open pulsing shutter >20Hz (rapid - slow) 096-110 Shutter open 111-111 Fade effect with dimmer (slow - rapid) 112-125 Shutter open 126-126 Shutter closed 127-126 Open pulsing shutter <20Hz (rapid - slow) 128-142 Shutter open 143-143...
  • Page 26 P1 2 Wash Gobo 2 016-023 Gobo 3 024-031 Gobo 4 032-039 Gobo 5 040-047 Gobo 6 048-127 Gobo 0 (open) 128-135 Gobo 1 shake (fast - slow) 136-143 Gobo 2 shake (fast - slow) 144-151 Gobo 3 shake (fast - slow) 152-159 Gobo 4 shake (fast - slow) 160-167...
  • Page 27 Dark Blue 024-025 Dark Blue/ Pink 026-027 Pink 028-029 Pink/HCRI (P12 Wash HP), Pink/CTB 7000K ((P12 Wash HC) 030-031 HCRI (P12 Wash HP), CTB 7000K ((P12 Wash HC) 032-033 HCRI/White (P12 Wash HP), CTB/White 7000K ((P12 Wash HC) 034-063 Linear colours: White - Red - Yellow - Magenta - Green - Orange -...
  • Page 28 P1 2 Wash Cyan (8 Bit) 0-100% 000-255 Fine cyan (16 Bit) 000-255 Magenta (8 Bit) 0-100% 000-255 Fine magenta (16 Bit) 000-255 Yellow (8 Bit) 0-100% 000-255 Fine yellow (16 Bit) 000-255 CTO (8 Bit) 0-100% 000-255 Fine CTO (16 Bit) 000-255 Sparkle - Glitter effect Sparkle effect inactive...

  • Page 29: Control Channel

    CAMERA MODE - sets the LED refresh rate RESET - a basic reset of the headlight is performed For details, see DMX Channel functions for the P12 Wash on page 23. 6.1.4 Sparkle effect, sparkle speed Animation effects can be created via this channel in connection with the focus. Depending on the intensity, the projection can be made to shake more or less.

  • Page 30: Rdm

    P1 2 Wash 6.5 RDM The P12 can communicate via RDM (Remote Device Management) in accordance with ESTA American National Standard E1.20-2006. RDM is a bidirectional communication protocol for use in DMX512 control systems. It is the open standard for the configuration and status monitoring of DMX-512 devices.

  • Page 31: Manufacturer Specific Rdm Parameter Ids

    P1 2 Wash 6.5.4 Manufacturer specific RDM parameter IDs RDM parameter ID DISCO- Note VERY RDM configuration Battery Charge Hours ✔ Error Number ✔ Error ✔ Select Next Error ✔ Remove Error ✔ Remove New Error Flag ✔ User Defaults ✔...

  • Page 32: Service

    INIT PAN TILT The P12 Wash is calibrated in the pan/tilt position at the factory. If it loses this calibration, i.e. it strikes against the stop or no longer finds its position, it can be re-initialised using this function.

  • Page 33: Changing Gobos

    Now open the two knurled screws (5) and remove the gobo insert. The following figure (1) shows the gobo insert of the P12 Wash. To change the rotating gobos remove only the clamping ring (A) with a pointed object replace the gobo and then put the clamping ring again.

  • Page 34: Cleaning The Device

    7.5 Software update The P12 Wash can be updated via a USB stick with micro-USB connection. To do this, copy the file directly into the root directory of the USB stick. Then press and hold the right key below the display, switch on the power of the P12 Wash, as soon as the message “Insert USB stick”...

  • Page 35: Service And Maintenance

    7.6 Service and maintenance On the P12 Wash, the zoom / focus guide rails and the rotating gobos should be checked for sufficient lubrication at regular intervals - once a year. To do this, open the head cover (4x cam- locks with half a turn), the zoom cover (3 Phillips screws) see (4) and remove the gobo insert (2 knurled screws).

  • Page 36: Specifications

    P1 2 Wash 8. Specifications Dimensions and weight Length ..............264 mm Width .

  • Page 37: Declaration Of Conformity

    Directive: 2014/30/EU Electromagnetic compatibility (Directive 2014/30/EU of the European Parliament and of the Council of 26/02/2014 to approximate the laws of the Member States relating to electromagnetic compatibility) The manufacturer, JB-Lighting Lichtanlagentechnik GmbH Sallersteigweg 15 89134 Blaustein-Wippingen P12 Wash declares that the product: complies with the essential protection requirements of the directives.
  • Page 38 P1 2 Wash - 38 -...
  • Page 39 P1 2 Wash - 39 -...
  • Page 40 JB-Lighting Lichtanlagentechnik GmbH Sallersteig 15 89134 Blaustein Tel. +49 7304 9617-0 Fax. +49 7304 9617-99 info@jb-lighting.de www.jb-lighting.de...
