SYSTEM OVERVIEW
0
MFD SOFTKEYS
MFD softkeys vary depending on the page selected. EIS and Navigation Map Page (default MFD page)
softkeys are described here.
ENGINE
ENGINE
• ENGINE Displays second-level engine softkeys (Figure 1-19; see the EIS Section for more
LEAN Displays the EIS Lean Display (softkeys for engine leaning assist are shown when selected)
SYSTEM Displays the EIS System Display (softkeys for fuel calculations are shown when selected)
ENGINE
• MAP Enables second-level Navigation Map Page softkeys
TRAFFIC Displays/removes traffic information on Navigation Map Page
TOPO ENGINE Displays/removes topographical data (e.g., coastlines, terrain, rivers, lakes) on Navigation
TERRAIN Displays/removes terrain information on Navigation Map Page
NEXRAD Displays/removes NEXRAD weather and coverage information on Navigation Map Page
XM LTNG Displays/removes XM lightning information on Navigation Map Page (optional)
BACK Returns to top-level softkeys
TRAFFIC
1-20
STBY ON ALT
1 2 3 4

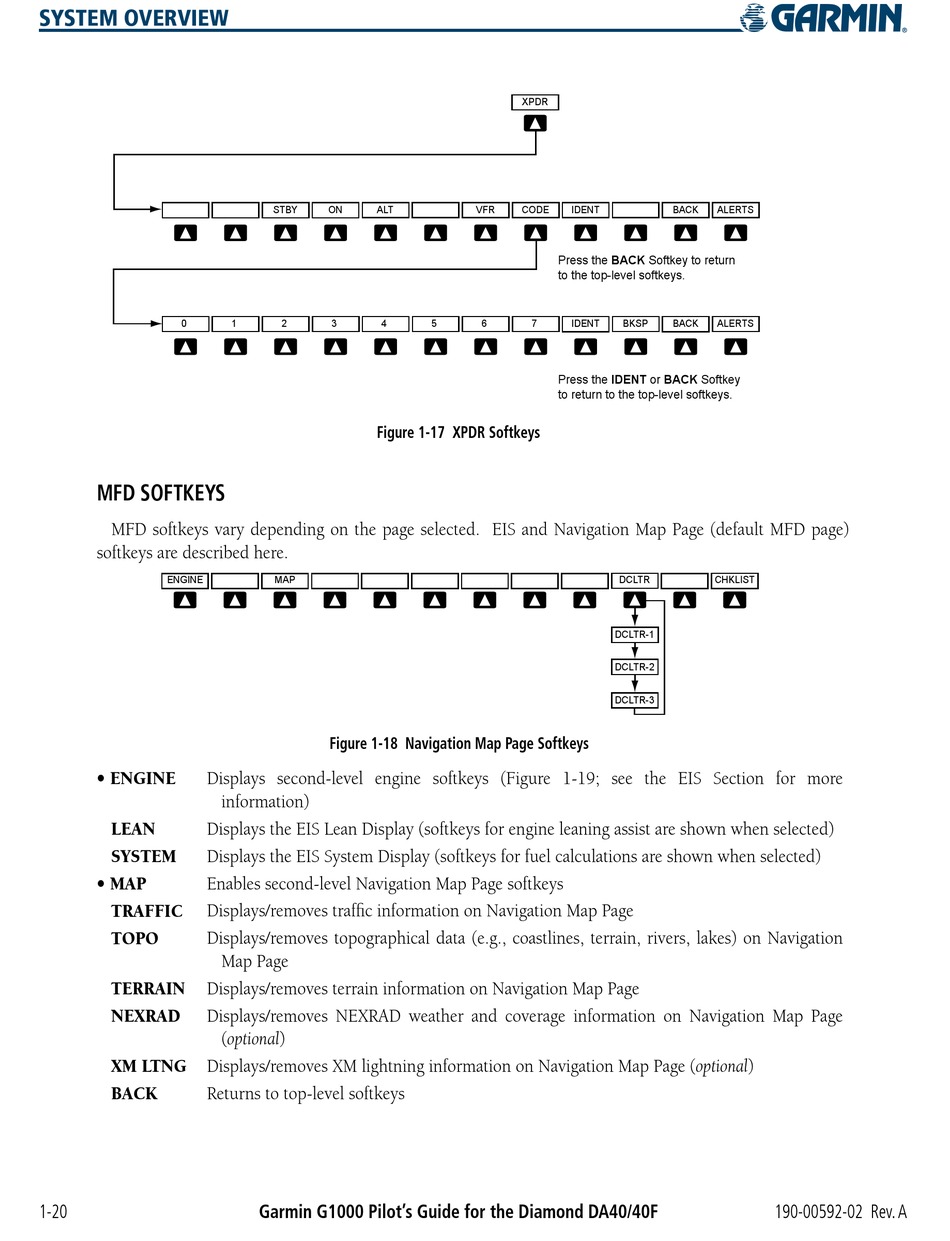

Figure 1-17 XPDR Softkeys
MAP
Figure 1-18 Navigation Map Page Softkeys
information)
LEAN SYSTEM CYL SLCT
DEC FUEL
LEAN SYSTEM
Map Page
(optional)
MAP
TOPO TERRAIN
Garmin G1000 Pilot's Guide for the Diamond DA40/40F
and cycle through bearing sources:
- NAV1/NAV2
- GPS
- ADF
Press the STD BARO or BACK Softkey
to return to the top-level softkeys.
XPDR
VFR CODE IDENT
Press the BACK Softkey to return
to the top-level softkeys.
5 6 7 IDENT
Press the IDENT or BACK Softkey
to return to the top-level softkeys.
ASSIST
INC FUEL RST FUEL
Press the BACK Softkey to
return to the top-level softkeys.
(optional) (optional)
NEXRAD XM LTNG
Press the BACK Softkey to
return to the top-level softkeys.
BACK ALERTS
BKSP BACK ALERTS
DCLTR CHKLIST CHKLIST
DCLTR-1
DCLTR-2
DCLTR-3
BACK
BACK
BACK
