Installation

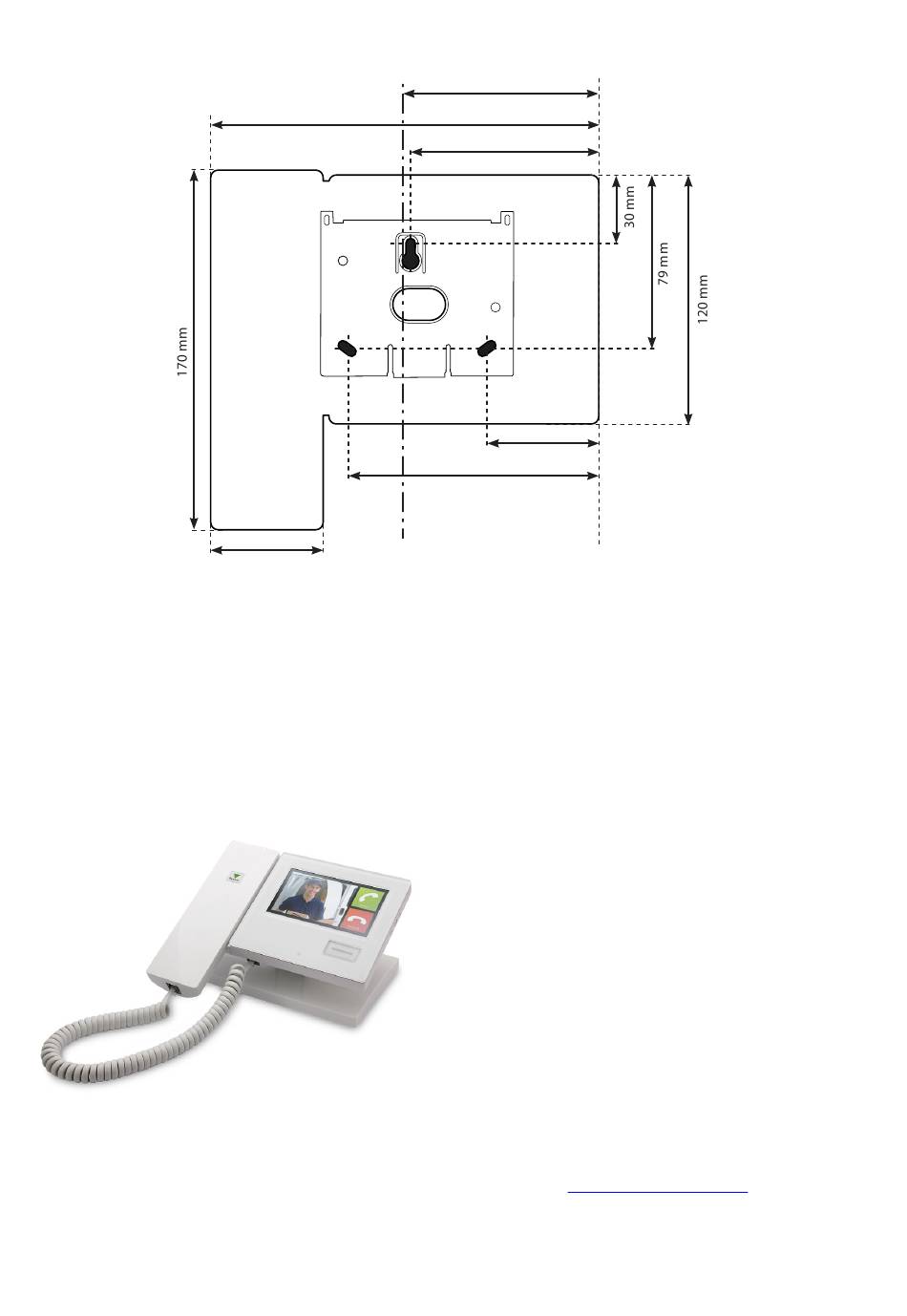

Determine where the monitor will be sited. The top right corner of the unit is regarded as the reference point for
drilling and measurements. Screws and wall plugs are provided in the fitting kit.
1. Determine the position of the top mounting screw. Drill the hole and tap in one of the No 8 wall plugs.
2. Put in one of the screws, leaving a suitable gap to the wall surface and slide the bracket over it.
3. Mark the hole positions for the lower 2 screws and the network cable entry.
4. Remove the bracket and drill the additional holes.
5. Tap in the other 2 wall plugs and hang the bracket back on the top screw. Secure the bracket with the 3 screws.
Power is supplied via the network connection from a Net2 Entry controller or a network PoE switch.
See also: AN1127 - Net2 Entry - Planning and installation < http://paxton.info/1896 >
℄
186 mm
55 mm
93 mm
88 mm
53 mm
118 mm
A desk mount stand is also available (PN: 337-847)
A white network cable is supplied with the stand.
Feed this through the mount and push it into the
socket at the rear of the monitor. Clip the mount to
the monitor.
