Paxton Ins-30142 Quick Start Manual

Paxton Ins-30142 Quick Start Manual

Hands free demonstration unit

Advertisement

04/02/2010
Paxton
Ins-30142 Hands free demonstration unit
Technical Support
01273 811011
support@paxton.co.uk
Technical help is available:
Monday - Friday from 07:00 - 19:00 (GMT)
Saturday from 09:00 - 13:00 (GMT)
Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/
What's in the box?

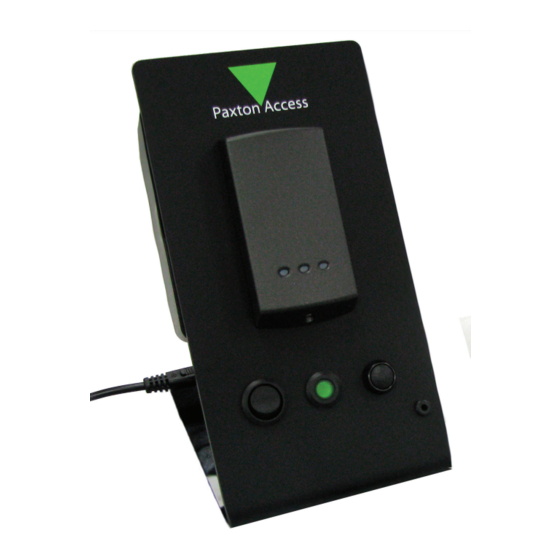

Hands free demonstration unit
Figure 8 IEC power lead.
Net2 demonstration cards and keyfobs
Hands free keycard
Documentation
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ins-30142 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Paxton Ins-30142

  • Page 1 Technical help is available: Monday - Friday from 07:00 - 19:00 (GMT) Saturday from 09:00 - 13:00 (GMT) Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/ What’s in the box? Hands free demonstration unit Figure 8 IEC power lead.
  • Page 2 LED as soon as a valid read is achieved. 2. Presenting passive tokens. QA range of standard Net2 tokens is included for comparison tests. Present any Paxton or EM4100 token to the reader. The reader will beep at the normal passive read range.
  • Page 3 AN1082 - Hands free - How does it work? Paxton Access The hands free system increases the effective read range of a standard Paxton P or KP series reader to a maximum of 2.5 metres. The system comprises of a hands free interface, a compatible reader (see read range table) and hands free tokens (keycard or keyfob).
  • Page 4 Reader Position The read range of the system depends on the type of reader chosen. Read Range 0.85 m 1.1 m 1.5 m P200 2.5 m P200 metal mount 2.0 m Long Range Reader 5.0 m When a reader is connected to a hands free interface board for the first time the reader firmware will be modified to enable the reader to transmit the address of its interface every 100ms.
  • Page 5 Keycard Operation The keycard will operate as a passive (short range), hands free (same as the keyfob) or long- range hands free token. Before the keycard buttons will operate, the card needs to know the unique address of the interface(s) it will be working with and its button setting. This is done by first using the keycard in HANDS FREE mode on each reader/interface that is required to be used in long- range mode.
