Ins-30201 Net2 Entry - Panel
Technical Support
01273 811011
Technical help is available:
Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/

Description of product

The Net2 Entry panel is a robust door entry panel incorporating both door entry and access control functions.
It is powered using power over Ethernet (PoE) and communicates with the other elements of the system using
IPv6, providing 'plug and play' installation. Each panel is associated with a Net2 Entry control unit which is the
interface to the door hardware.
Only one panel can be associated with a control unit. Multiple panel installations require a control unit for each panel.
The panel is equipped with a keypad and a proximity token reader. A resident can use either the keypad or a token
to gain entry. Installers gain access to the menu options using an engineer code or an engineer token.
Net2 software is used to administer the access control functions. It must be v4.25 or a later version.
6
5
4
3
support@paxton.co.uk
Monday - Friday from 07:00 - 19:00 (GMT)
Saturday from 09:00 - 13:00 (GMT)
7
8
1
2

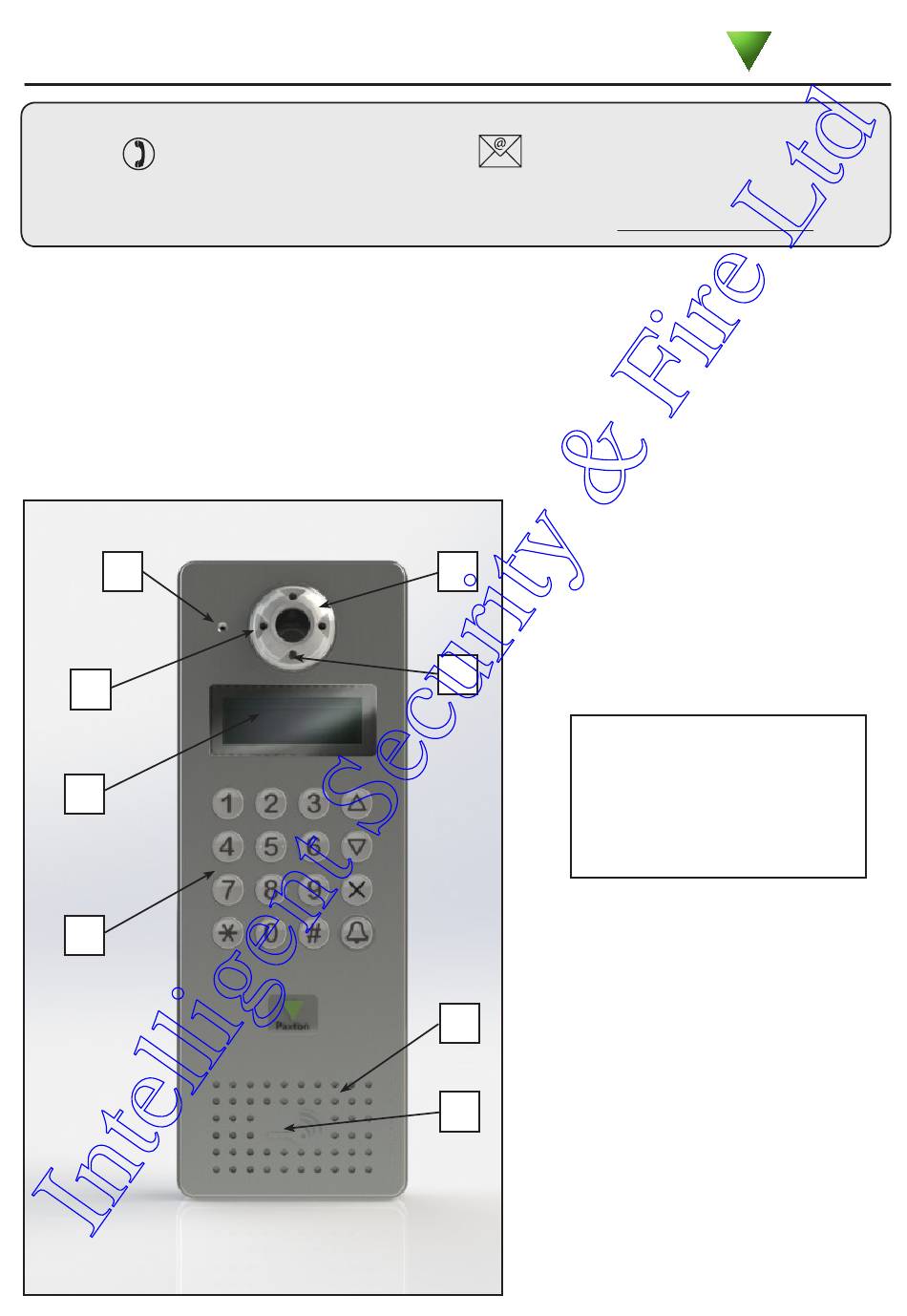

1. Speaker
2. Proximity reader
3. Backlit keypad
4. LCD display
5. IR LEDS for night time operation
6. Microphone
7. Colour camera
8. Light sensor
Paxton
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ins-30201 and is the answer not in the manual?

Questions and answers

Summary of Contents for Paxton Ins-30201

  • Page 1 Monday - Friday from 07:00 - 19:00 (GMT) Saturday from 09:00 - 13:00 (GMT) Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/ Description of product The Net2 Entry panel is a robust door entry panel incorporating both door entry and access control functions.
  • Page 2 PoE (Power over Ethernet) so the network must support this switch type. Paxton recommend that the network cable is run to each location and terminated in a network box. A patch cable should then be used to link the unit to the network. This makes unit replacement or removal for building maintenance much easier.
  • Page 3 SURFACE MOUNT 1. Determine and mark the height and position for the camera. 2. Mark and drill the hole for the network cable (network patch or Cat5). Ensure that the waterproof grommet will have clearance behind the backbox. 3. Determine the position of the mounting screws, drill the holes and push in the No 8 wall plugs. 4.
  • Page 4 Use the up and down arrows on the panel to view all the menu options. Use the key to Cancel Initialising a new system The first time the system is powered up the panel will request that the Language to be used is confirmed. It then asks for an Engineer code to be set up.
  • Page 5 Use the up and down arrows on the panel to view all the menu options. Use the key to Cancel 1. Door open time from the Engineer menu - Press key 1. This is the time period that the lock will stay released once the open door button has been pressed on a monitor.
  • Page 6 5. Panel settings from the Engineer menu - Press key 5 1. Set control unit from Panel settings menu - Press key 1 This sets the control unit that the Net2 Entry panel is associated with. Enter the Serial Number of the control unit and then press Bell. 2.
  • Page 7 1Mb/s multicast per panel during call Panels per system Features Camera system Full colour I/R illumination Audio system Two way Display Backlit LCD Paxton tokens 125k/Hz Proximity reader Environment Operating temperature -20 °C 50 °C IP55 IP Rating External use Medium Vandal resistance The declaration of conformity is available on request.
