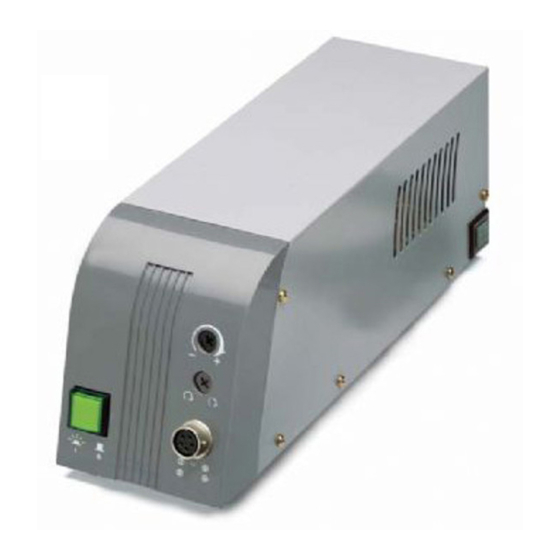

Ingersoll-Rand EC24N User Manual

ELECTRIC SCREWDRIVER CONTROLLERS
These Controllers are designed for dry location use only, with Series 24 Volt EL and
24 Volt EL ESD Electric Screwdrivers.
Series 24 Volt EL and 24 Volt EL ESD Electric Screwdrivers are intended for installing screws
in metal only.
Ingersoll–Rand is not responsible for customer modification of tools for applications on
which Ingersoll–Rand was not consulted.
IT IS THE RESPONSIBILITY OF THE EMPLOYER TO PLACE THE INFORMATION
IN THIS MANUAL INTO THE HANDS OF THE OPERATOR.
FAILURE TO OBSERVE THE FOLLOWING WARNINGS COULD RESULT IN INJURY.
Read and understand all instructions. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious personal injury.
WORK AREA
•
Keep your work area clean and well lit. Cluttered
benches and dark areas invite accidents.
•
Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
•
Keep bystanders, children, and visitors away while
operating a power tool. Distractions can cause you to
lose control.
•
Consider work area environment. Don't expose
power tools and chargers to water. Keep work area
well lighted.
•
Do not permit unauthorized personnel to operate
this tool, or touch tool or cord.
ELECTRICAL SAFETY
•
Grounded tools must be plugged into an outlet
properly installed and grounded in accordance with
all codes and ordinances. Never remove the
grounding prong or modify the plug in any way.
The use of other than genuine Ingersoll–Rand replacement parts may result in personal injury, decreased tool
performance and increased maintenance, and may invalidate all warranties.
Have your tool repaired by a qualified person. This electric tool is in accordance with the relevant safety requirements.
Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in
considerable danger to the user.
Repairs should be made only by authorized, trained personnel. Consult your nearest Ingersoll–Rand Authorized
Servicenter.
 Ingersoll–Rand Company 2000
Printed in U.S.A.
MODELS EC24N AND EC24N–ESD
IMPORTANT SAFETY INFORMATION ENCLOSED.
SAVE THESE INSTRUCTIONS.
03541091
Do not use any adapter plugs. Check with a
qualified electrician if you are in doubt as to
whether the outlet is properly grounded. If the tools
should electrically malfunction or break down,
grounding provides a low resistance path to carry
electricity away from the user.
•
Avoid body contact with grounded surfaces such as
pipes, radiators, ranges and refrigerators. There is
an increased risk of electric shock if your body is
grounded.
•
Don't expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
•
Do not abuse the cord. Never use the cord to carry
the tools or pull the plug from an outlet. Keep cord
away from heat, oil, sharp edges or moving parts.
Replace damaged cords immediately. Damaged
cords increase the risk of electric shock.
•
When operating a power tool outside, use an
outdoor extension cord marked "WSA" or "W".
These cords are rated for outdoor use and reduce the
risk of electric shock.
F
Form P7196
Edition 11
E
March, 2000
P
