QUICK START GUIDE FOR DEMONSTRATION CIRCUIT 888A-B
36V-72VIN, ISOLATED SYNCHRONOUS FORWARD

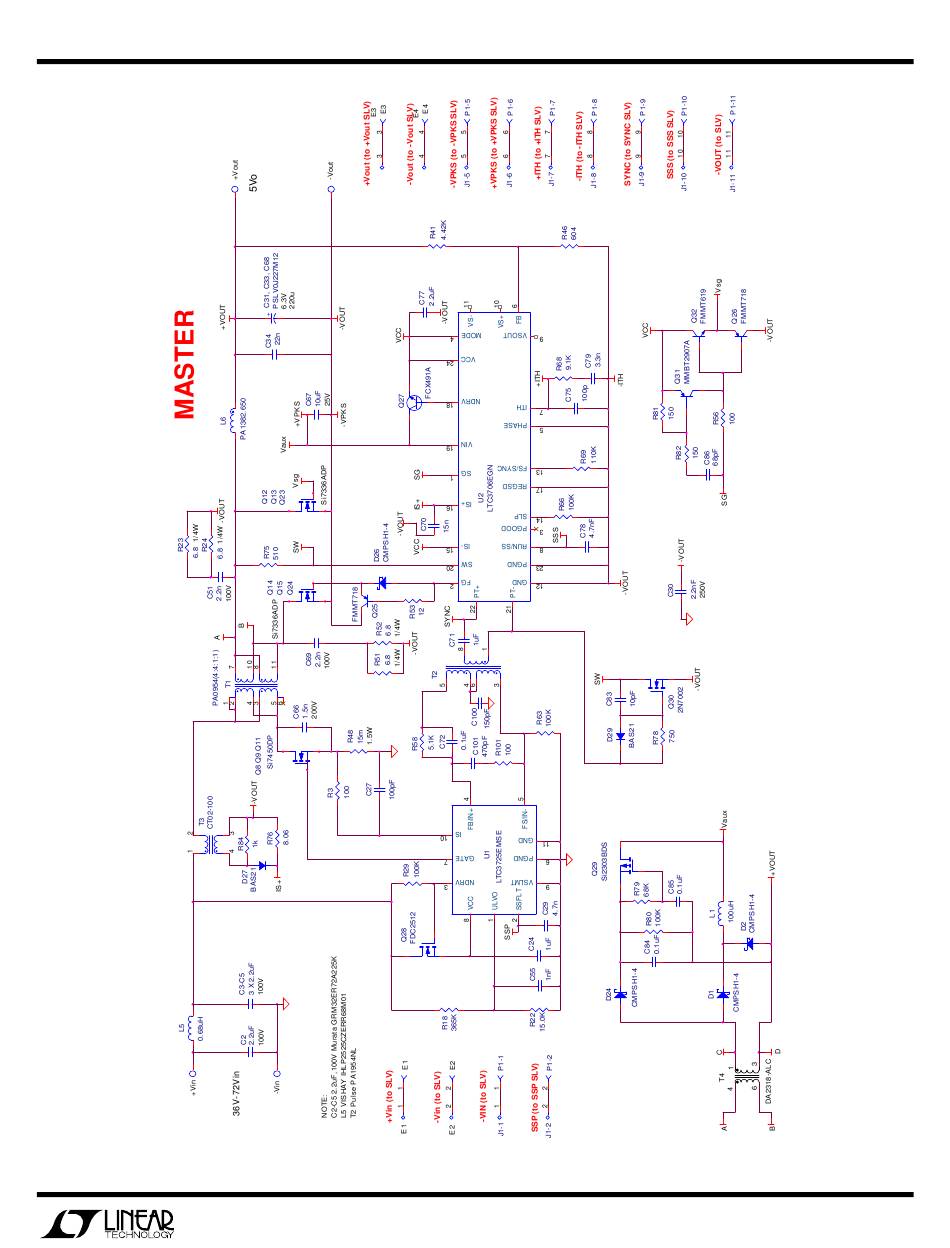

Figure 19. PolyPhase Master Schematic
16
