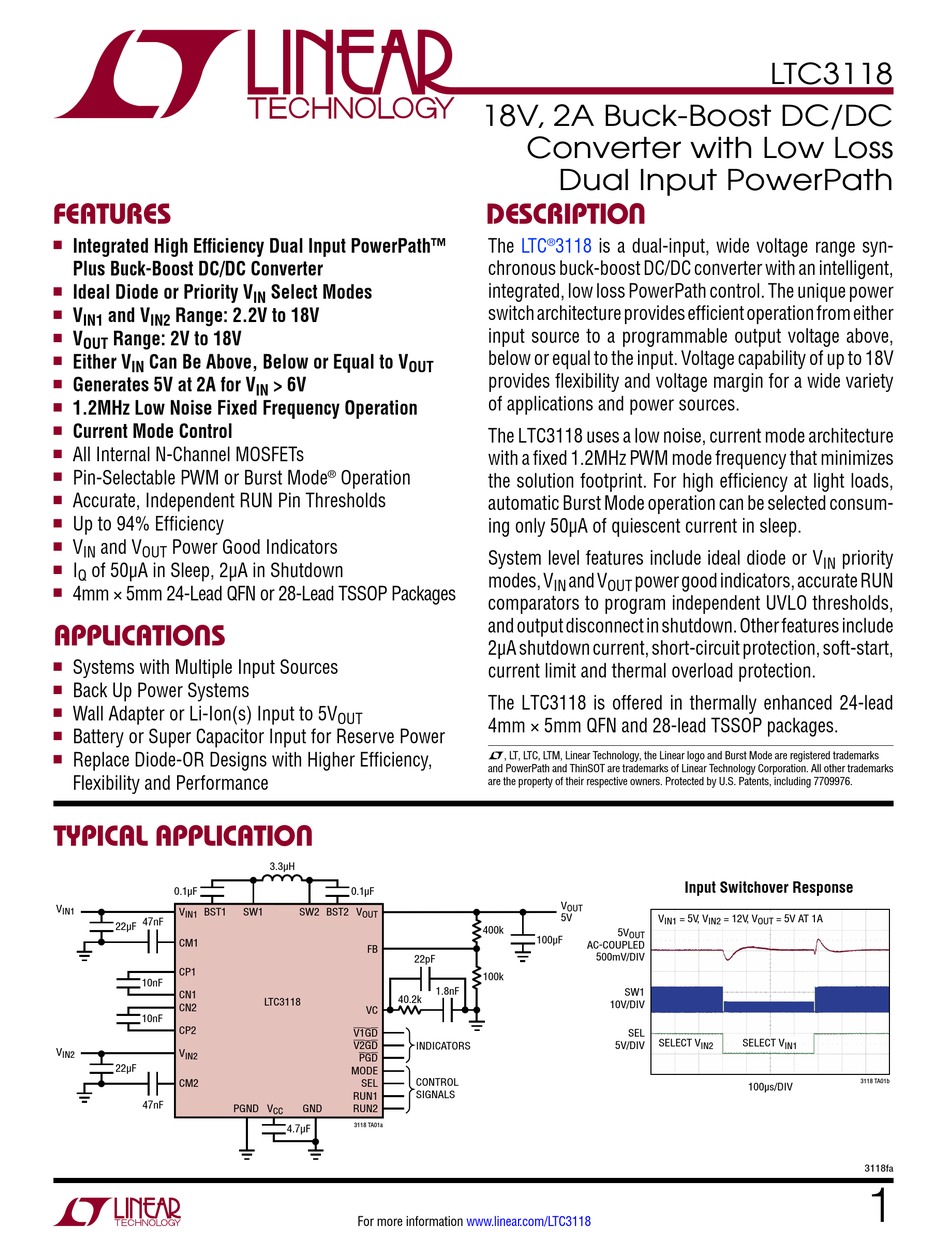

Linear Technology LTC3118 Datasheet

18v, 2a buck-boost dc/dc converter with low loss dual input powerpath
Hide thumbs Also See for LTC3118:

Advertisement

Quick Links

Download this manual
FeaTures
Integrated High Efficiency Dual Input PowerPath™
n
Plus Buck-Boost DC/DC Converter
Ideal Diode or Priority V
n
V
and V
Range: 2.2V to 18V
n
IN1
IN2
V
Range: 2V to 18V
n
OUT
Either V
Can Be Above, Below or Equal to V
n
IN
Generates 5V at 2A for V
n
1.2MHz Low Noise Fixed Frequency Operation
n
Current Mode Control
n
All Internal N-Channel MOSFETs
n
Pin-Selectable PWM or Burst Mode
n
Accurate, Independent RUN Pin Thresholds
n
Up to 94% Efficiency
n
V
and V
Power Good Indicators
n
IN
OUT
I
of 50µA in Sleep, 2µA in Shutdown
n
Q
4mm × 5mm 24-Lead QFN or 28-Lead TSSOP Packages
n
applicaTions
Systems with Multiple Input Sources
n
Back Up Power Systems
n
Wall Adapter or Li-Ion(s) Input to 5V
n
Battery or Super Capacitor Input for Reserve Power
n
Replace Diode-OR Designs with Higher Efficiency,
n
Flexibility and Performance
Typical applicaTion
0.1µF
V
IN1
V
BST1
IN1
47nF
22µF
CM1
CP1
10nF
CN1
CN2
10nF
CP2
V
V
IN2
IN2
22µF
CM2
47nF
Select Modes
IN
OUT
> 6V
IN
Operation
®
OUT
3.3µH
0.1µF
SW1
SW2
BST2
V
OUT
FB
40.2k
LTC3118
VC
V1GD
V2GD
PGD
MODE
SEL
RUN1
PGND V
GND
RUN2
CC
4.7µF
3118 TA01a
For more information
18V, 2A Buck-Boost DC/DC
Converter with Low Loss
Dual Input PowerPath
DescripTion
The
LTC
3118
®
chronous buck-boost DC/DC converter with an intelligent,
integrated, low loss PowerPath control. The unique power
switch architecture provides efficient operation from either
input source to a programmable output voltage above,
below or equal to the input. Voltage capability of up to 18V
provides flexibility and voltage margin for a wide variety
of applications and power sources.
The LTC3118 uses a low noise, current mode architecture
with a fixed 1.2MHz PWM mode frequency that minimizes
the solution footprint. For high efficiency at light loads,
automatic Burst Mode operation can be selected consum-
ing only 50µA of quiescent current in sleep.
System level features include ideal diode or V
modes, V
and V
IN
comparators to program independent UVLO thresholds,
and output disconnect in shutdown. Other features include
2µA shutdown current, short-circuit protection, soft-start,
current limit and thermal overload protection.
The LTC3118 is offered in thermally enhanced 24-lead
4mm × 5mm QFN and 28-lead TSSOP packages.
L, LT, LTC, LTM, Linear Technology, the Linear logo and Burst Mode are registered trademarks
and PowerPath and ThinSOT are trademarks of Linear Technology Corporation. All other trademarks
are the property of their respective owners. Protected by U.S. Patents, including 7709976.
V
OUT
5V
400k
100µF
AC-COUPLED
22pF
100k
1.8nF
INDICATORS
CONTROL
SIGNALS
www.linear.com/LTC3118
LTC3118
is a dual-input, wide voltage range syn-
power good indicators, accurate RUN
OUT
Input Switchover Response
V
= 5V, V
= 12V, V
IN1
IN2
OUT
5V
OUT
500mV/DIV
SW1
10V/DIV
SEL
SELECT V
SELECT V
5V/DIV
IN2
100µs/DIV
priority
IN
= 5V AT 1A
IN1
3118 TA01b
3118fa
1
