Da-Lite IDEA Instructions page 2

ASSEMBLY INSTRUCTIONS
Note: It requires two people to assemble an IDEA Screen.
PREPARATION
Have space for this available on a flat clean surface such as a large table. The
work area should be larger than the frame size.
TOOLS REQUIRED FOR ASSEMBLY
Phillips screwdriver
ASSEMBLY

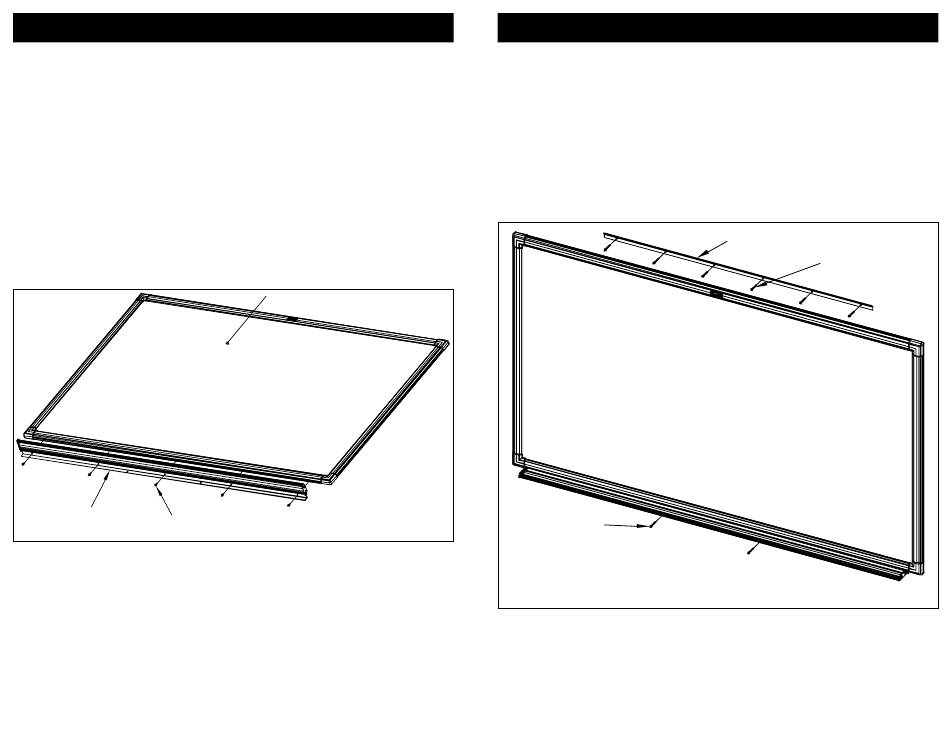

1. Carefully unpack unit and place frame assembly on top of a clean table. The
white surface must face up.
2. Center aluminum tray to the bottom of frame and attach with the provided (5)
#8 x ⁄ " screws (see figure 1). Insert screws through the tray into the groove.
1
2
ALUMINUM
TRAY
#8 x ⁄
1
SECURE TRAY TO FRAME
FIGURE 1
WHITE SURFACE
" SCREWS
2
WALL MOUNTING
1. The screen is shipped with one 44" wall bracket. This bracket must be
mounted to a flat surface into at least two wall studs.
2. Secure bracket to wall studs at the desire height. Make sure the bracket is
level. Drill holes and attach mounting bracket into wall. You will need at least
1" clearance above the drilled holes to hang the screen
3. This step requires two people. Hang the screen on the wall bracket (see
figure 2). There is a lip on the back of the frame that wedges itself into the
wall bracket once fully installed.
4. Attach bottom of screen to wall with two screws. The bottom mounting
holes are located under the tray (see figure 2).
SCREWS
ATTACH BRACKET TO WALL
SECURE BOTTOM OF SCREEN TO WALL
FIGURE 2
WALL BRACKET
SCREWS
(NOT SUPPLIED)
