Attaching &
Removing
D

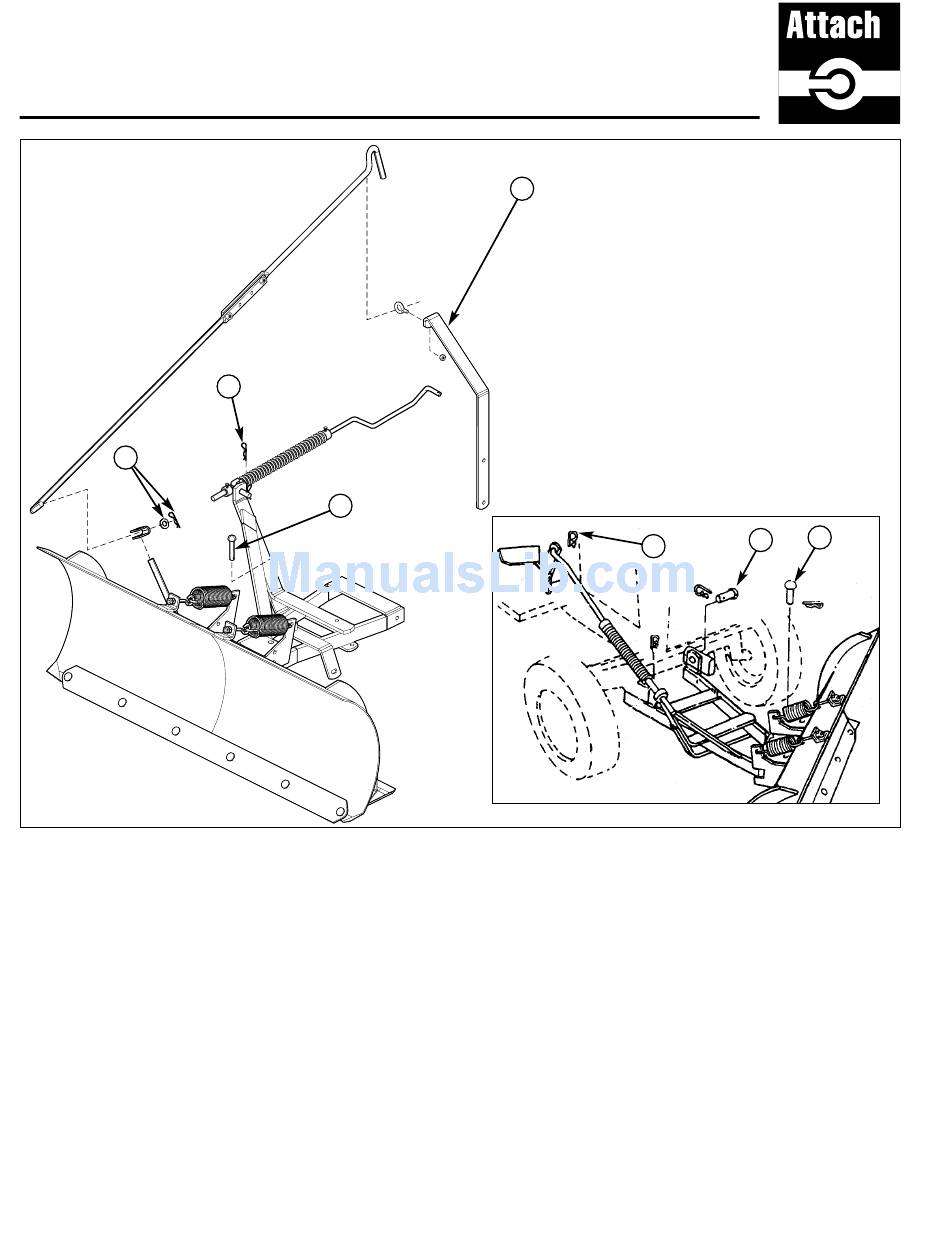

Figure 15. Dozer Removal
A. Support Arm
B. Hair Pin Clip
REMOVAL & INSTALLATION
Removing & Attaching Dozer Blade
1. Lower the blade.
2. Remove the hair pin clip and washer (D, Figure 15)
securing the angling control rod to the clevis.
Disconnect the angling control rod.
3. Remove the angling control rod from the
support arm (A).
B
C
C. Pivot Pin
D. Hair Pin Clip & Washer
A
E. Clevis Pins
4. Remove the pivot pin (C) connecting the blade and
pushbar. Remove the blade.
5. Remove pin (E) securing hitch to the tractor.
8. Reinstall all pins for storage.
Install in reverse order of removal.
14
C
E
B
