Hitch Components - Simplicity 1721303-01 Operator's Manual

Initial Setup & Assembly
1
3
4
8
11
8

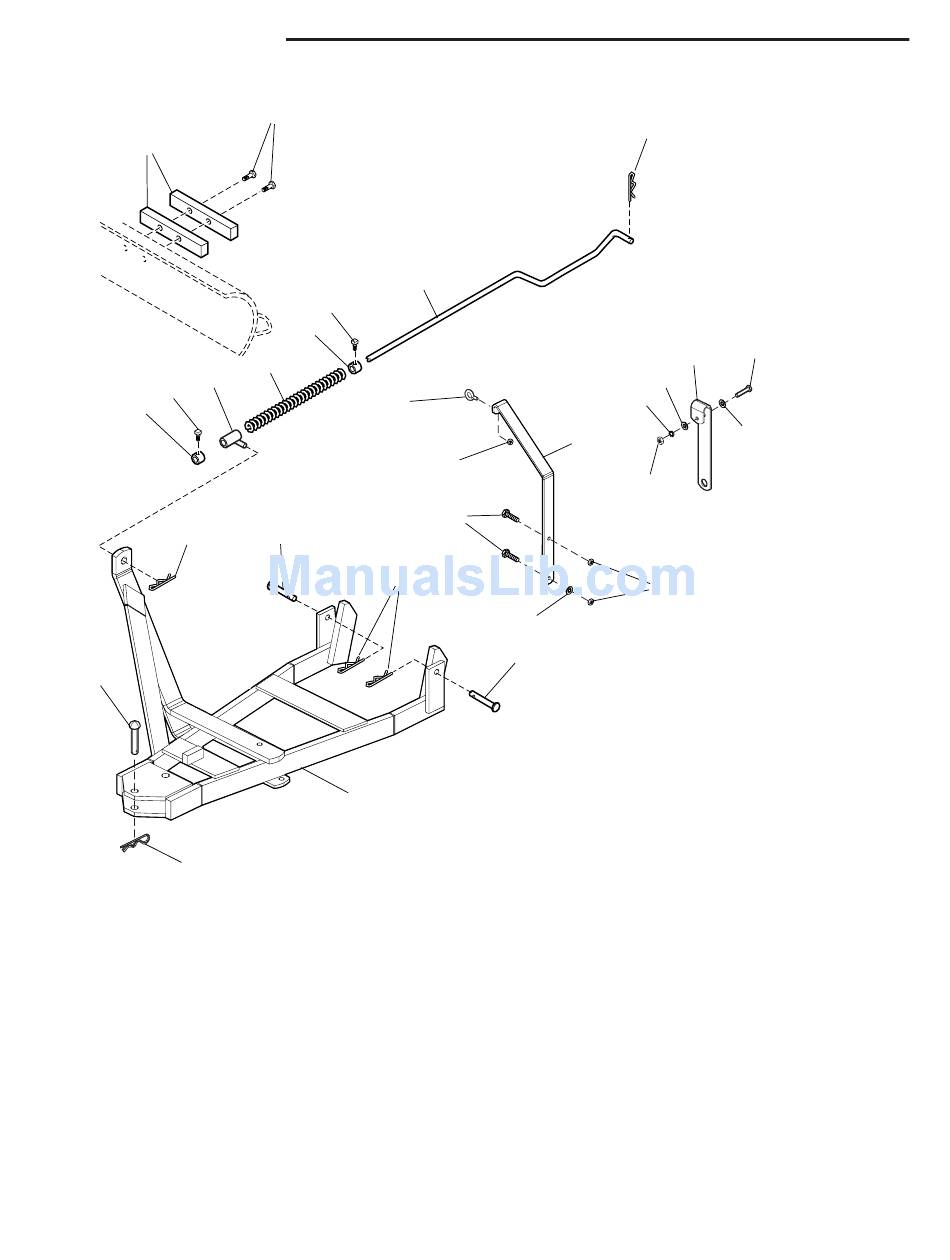

Figure 8. Push Bar, Hitch, & Lift Rod Components
Ref Qty Description
1 2 STOP, Bar
2 2 SCREW, Taptite, 5/16-18 x 1
3 2 SETSCREWS, 5/16 x 1/2
4 2 SET COLLAR
5 1 ROD GUIDE ASSY.
6 1 SPRING
7 1 ROD, Lift, Electric/Hydraulic
8 5 CLIP, Hairpin
9 2 CLEVIS PIN
10 1 PUSH BAR ASSY, Front
11 1 PIVOT PIN
2
3
4
6
5
9
10
7
12
13
18
8
15
9
Ref Qty Description
12 1 EYEBOLT, 1/4-20 x 1-1/2
13 1 LOCKNUT, Center, 1/4-20
14 1 BRACKET, Control Rod
15 1 WASHER, 3/8
16 2 WASHER, 5/16
17 2 LOCKNUT, Flange, Whizlock 5/16-18
18 2 CAPSCREW, 5/16-18 x 1-1/2
19 1 BRACKET, Control Rod
20 1 NUT, Hex, Full, 5/16
21 1 LOCKWASHER, 5/16
10
8
18
19
16
21
16
14
20
17
