Swegon GOLD SD Description page 13

Description of the Air Handling Unit
Control Schedule

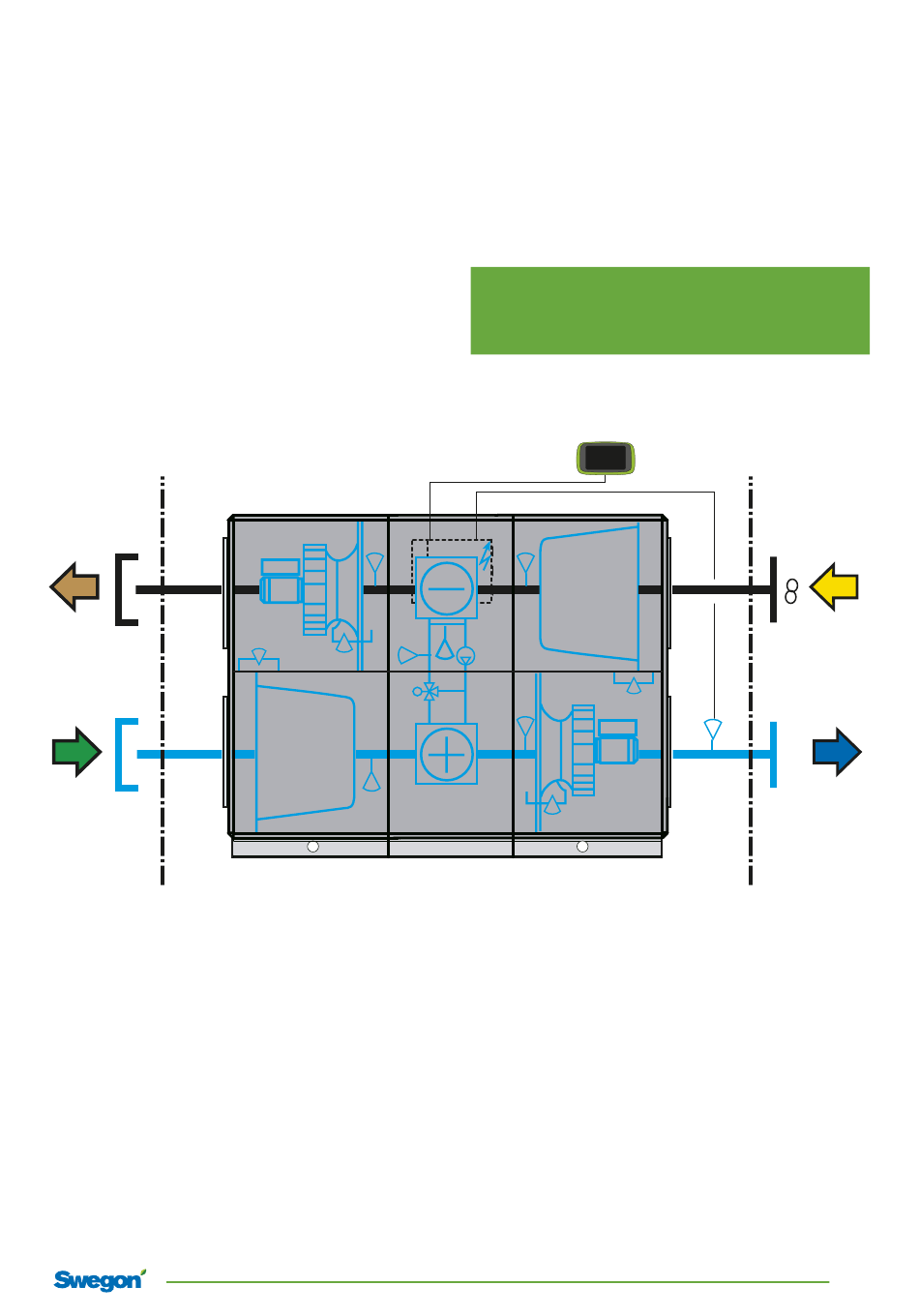

Diagrammatic description of the control functions, GOLD CX
The built-in control system controls and regulates temper-
atures, airflows, in-operation periods and a large number
of internal and external functions.
In that it is a microprocessor-based system, it can solve
highly complicated tasks. The specific components are
outlined below each individually in a simplified and sche-
matic specification.
BT3 Temperature sensor, outdoor air.
BT1 Temperature sensor, supply air. Positioned in
the ductwork.
BT2/BM2 Temperature sensor, extract air/Humidity
sensor, extract air. For anti-frost protection.
T1/T2 Motor control system for variable speed
control of the fan motors.
BF1/BF2 Pressure transducer. Indicates for controlling
the fan speed so that the preset airflow will be
maintained.
BP1/BP2 Pressure transducer for checking the filter
status.
BT6 Temperature sensor, coil heat exchangers. For
anti-frost protection.
GOLD CX, sizes 100/120: Pipework package including control box are supplied in unmounted condition for floor or wall mounting (accessories).
BT20
T2
BT6
BP1
BF2
MF6
BT3
When you use the AHU Design air handling unit selection
program for calculating data, you receive a project-specific flow
chart with complete description of pertinent unit functions.
BT2/
BM2
E1
VVX
G6
BP3
BT30
BF1
G6 Circulation pump, coil heat exchangers.
MF6 Valve actuator, coil heat exchangers.
E1 Electrical equipment cubicle containing the
control circuit card and other electrical
equipment for controlling internal and external
functions, etc.
P1 Hand-held micro terminal for setting airflows,
temperatures, control functions, in-operation
periods, etc. as well as alarms.
VVX Coil heat exchanger with pipework package.
BT20/BT30 Temperature sensor for density-corrected
airflow.
BP3 Differential pressure sensor.
20190329 We reserve the right to alter specifications.
P1
BP2
BT1
T1
GOLD
