Control Schedule - Swegon GOLD SD Description

Description of the Air Handling Unit

Control Schedule

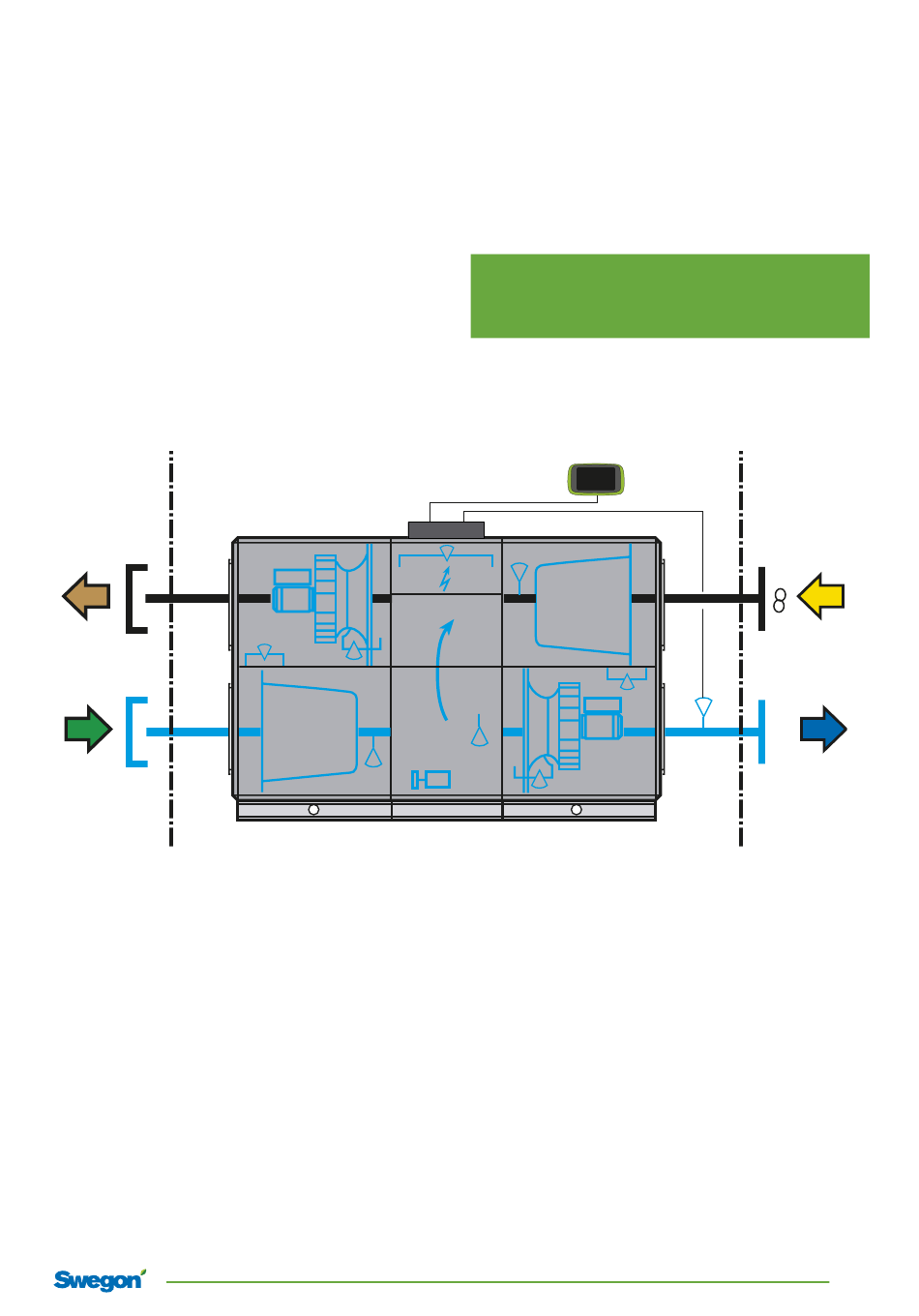

Diagrammatic description of the control functions, GOLD RX
The built-in control system controls and regulates temper-
atures, airflows, in-operation periods and a large number
of internal and external functions.
In that it is a microprocessor-based system, it can solve
highly complicated tasks. The specific components are
outlined below each individually in a simplified and sche-
matic specification.
BT3 Temperature sensor, outdoor air.
BT1 Temperature sensor, supply air. Positioned in
the ductwork
BT2 Temperature sensor, extract air.
T1/T2 Motor control system for variable speed
control of the fan motors.
BF1/BF2 Pressure transducer. Indicates for controlling
the fan speed so that the preset airflow will be
maintained.
BP1/BP2 Pressure transducer for checking the filter
status.
BP3 Pressure sensor for checking the heat
exchanger.
T2
BP1
BF2
VVX
BG1
BT3
20190329
When you use the AHU Design air handling unit selection
program for calculating data, you receive a project-specific flow
chart with complete description of pertinent unit functions.
P1
BP3 BT2
E1
BP2
T1
T3
BF1
BG1 Rotation monitor for checking the rotation of
the heat exchanger.
E1 Electrical equipment cubicle containing the
control circuit card and other electrical
equipment for controlling internal and external
functions, etc.
P1 Hand-held micro terminal for setting airflows,
temperatures, control functions, in-operation
periods, etc. as well as alarms.
VVX Variable speed-controlled rotary heat
exchanger with air purging operation.
T3 Drive motor for the rotary heat exchanger
We reserve the right to alter specifications.
GOLD
BT1
