Swegon GOLD SD Description page 12

GOLD
Description of the Air Handling Unit
Control Schedule

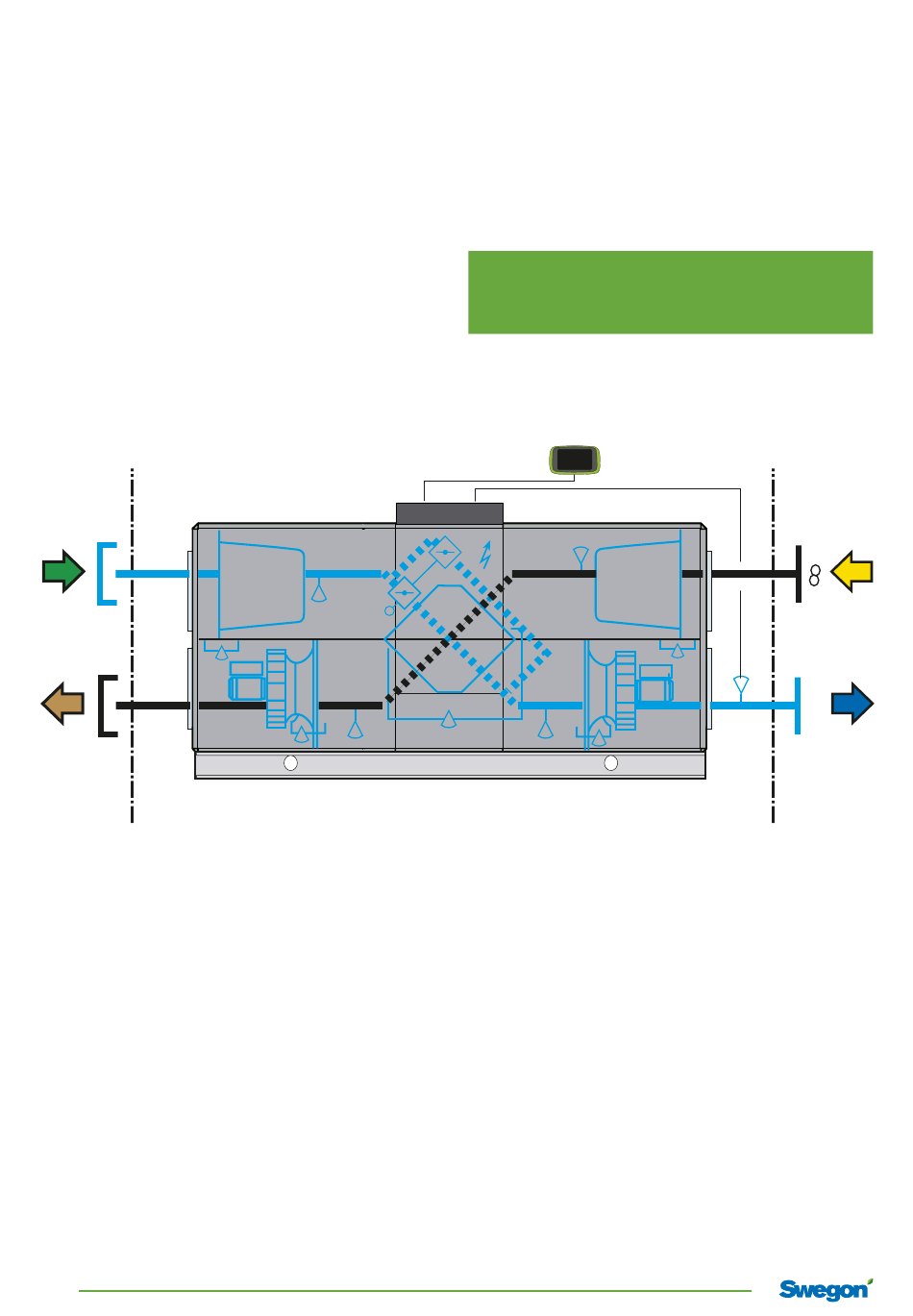

Diagrammatic description of the control functions, GOLD PX
The built-in control system controls and regulates temper-
atures, airflows, in-operation periods and a large number
of internal and external functions.
In that it is a microprocessor-based system, it can solve
highly complicated tasks. The specific components are
outlined below each individually in a simplified and sche-
matic specification.
BP1
BT3 Temperature sensor, outdoor air.
BT1 Temperature sensor, supply air. Positioned in
the ductwork
BT2/BM2 Extract air temperature sensor/Extract air
humidity sensor.
For RECOfrost anti-frost protection.
T1/T2 Motor control system for variable speed
control of the fan motors.
BF1/BF2 Pressure transducer. Indicates for controlling
the fan speed so that the preset airflow will be
maintained.
BP1/BP2 Pressure transducer for checking the filter
status.
BT6 Heat exchanger pressure sensor.
For anti-frost protection.
12
We reserve the right to alter specifications.
BT3
MG6
BT6
T2
BT20
BF2
When you use the AHU Design air handling unit selection
program for calculating data, you receive a project-specific flow
chart with complete description of pertinent unit functions.
BT2/BM2
E1
BT7
VVX
BT30
MG6 Actuator for by-pass and shut-off dampers.
E1 Electrical equipment cubicle containing the
control circuit card and other electrical
equipment for controlling internal and external
functions, etc.
P1 Hand-held micro terminal for setting airflows,
temperatures, control functions, in-operation
periods, etc. as well as alarms.
VVX Counterflow heat exchanger with bypass and
shut-off dampers.
BT20/BT30 Temperature sensor for density-corrected
airflow.
20190329
P1
BP2
BT1
T1
BF1
