Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Model: VS-30FW FireWire 800/1394b Repeater / HUB... -
Page 2: Table Of Contents
Figure 1: VS-30FW FireWire 800/1394b Repeater / HUB Figure 2: Connecting the VS-30FW FireWire 800/1394b Repeater / HUB Tables Table 1: VS-30FW FireWire 800/1394b Repeater / HUB Features Table 2: Technical Specifications of the VS-30FW FireWire 800/1394b Repeater / HUB 7 Contents... -
Page 3: Introduction
Introduction Welcome to Kramer Electronics (since 1981): a world of unique, creative and affordable solutions to the infinite range of problems that confront the video, audio and presentation professional on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better! Our 350-plus different models now appear in 8 Groups by function. -
Page 4: Overview
Is a 3 Port IEEE 1394b 800Mbps (S800) Hub that also supports legacy FireWire speeds of 400Mbps, 200Mbps, and 100Mbps (S400, S200, S100). In fact, you can connect several devices with different speeds, and the VS-30FW will bridge the gaps! - Page 5 The hub has to be powered from an AC adapter, which supplies power to the bus. The VS-30FW can supply up to 2.1A to the bus (each port can provide up to 1A). Overview...
-
Page 6: Firewire Compliance
3.2 FireWire Compliance In particular, the VS-30FW FireWire 800/1394b Repeater / HUB: Fully supports the provisions of the IEEE P1394b Revision 1.33+ at 1-Gigabit signaling rates Fully supports the provisions of the IEEE 1394-1995 Standard for High Performance Serial Bus and the P1394a Supplement Is fully interoperable with FireWire™... -
Page 7: Defining The Vs-30Fw Firewire 800/1394B Repeater / Hub

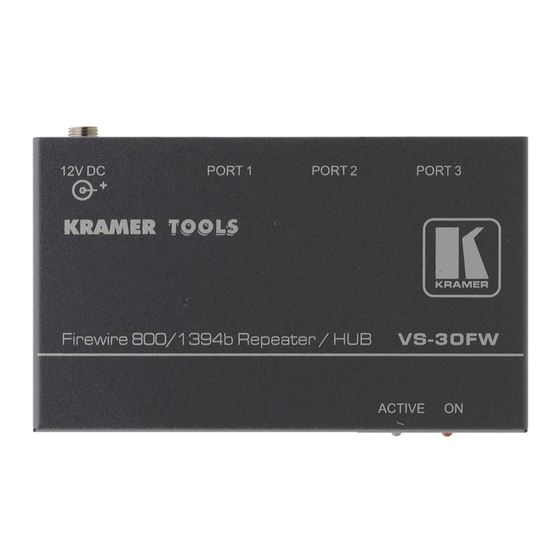

Defining the VS-30FW FireWire 800/1394b Repeater / HUB Defining the VS-30FW FireWire 800/1394b Repeater / HUB Figure 1 and Table 1 define the VS-30FW FireWire 800/1394b Repeater / HUB: Figure 1: VS-30FW FireWire 800/1394b Repeater / HUB Table 1: VS-30FW FireWire 800/1394b Repeater / HUB Features... -
Page 8: Using The Vs-30Fw Firewire 800/1394B Repeater / Hub
Using the VS-30FW FireWire 800/1394b Repeater / HUB Using the VS-30FW FireWire 800/1394b Repeater / HUB To use the VS-30FW FireWire 800/1394b Repeater / HUB, as the example in Figure 2 illustrates, do the following: 1. Connect up to 3 FireWire devices to up to 3 ports to a video camcorder, PORT 2 to a hard drive, and PORT 3 to a computer. -
Page 9: Technical Specifications
3 For details, refer to our Web site at http://www.kramerelectronics.com 4 Kramer P/N: 2535-025120 (P.S SW PPS25W-13 12V/2.1A EUR) Technical Specifications of the VS-30FW FireWire 800/1394b Repeater / HUB (S400, S200, S100) V, 500mA), mounting bracket , Powerful Power supply ( V, 2.1A) -
Page 10: Limited Warranty
LIMITED WARRANTY Kramer Electronics (hereafter Kramer) warrants this product free from defects in material and workmanship under the following terms. HOW LONG IS THE WARRANTY Labor and parts are warranted for three years from the date of the first customer purchase. - Page 11 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com. Updates to this user manual may be found at http://www.kramerelectronics.com/manuals.html. We welcome your questions, comments and feedback. Kramer Electronics, Ltd. Web site: www.kramerelectronics.com E-mail: info@kramerel.com P/N: 2900-000014 REV 1...
