Protec Digilite Installation Manual

Emergency lighting control panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
Digilite
Control Panel
INSTALLATION MANUAL
Protec Fire Detection PLC, Protec House, Churchill Way, Nelson, Lancashire, BB9 6RT.
Telephone:
+44 (0) 1282 717171
Fax:
+44 (0) 1282 717273
Web:
www.protec.co.uk
Email:
sales@protec.co.uk
Emergency Lighting

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Digilite and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Protec Digilite

Summary of Contents for Protec Digilite

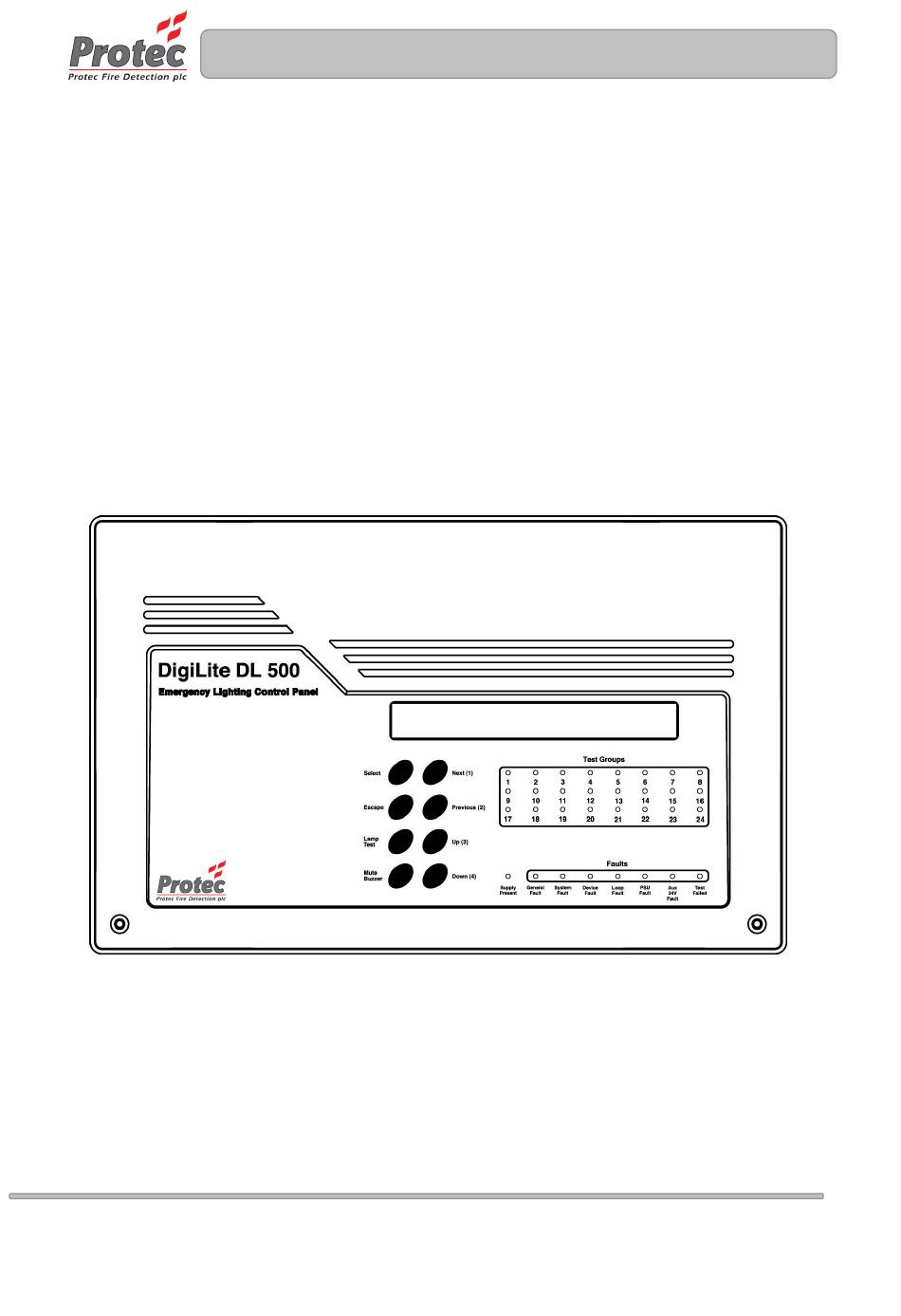

  • Page 1 ® Digilite Emergency Lighting Control Panel INSTALLATION MANUAL Protec Fire Detection PLC, Protec House, Churchill Way, Nelson, Lancashire, BB9 6RT. Telephone: +44 (0) 1282 717171 Fax: +44 (0) 1282 717273 Web: www.protec.co.uk Email: sales@protec.co.uk...
  • Page 2 Document Revision Details Issue Modification Detail Author Date Document Creation 02/09 N93-561-85 Issue 0 © Copyright Protec Fire Detection plc 2009...

  • Page 3: Table Of Contents

    Installing and Connecting The Standby Batteries ..........12 Switching On ......................12 DIGILITE® TECHNICAL SPECIFICATION ..............13 APPENDIX 1 DIGILITE® SPARES LIST ..............14 10.0 APPENDIX 2 DIGILITE® MAIN PCB DETAILS ............15 N93-561-85 Issue 0 © Copyright Protec Fire Detection plc 2009...

  • Page 4: Important Notes - Please Read

    Digilite® fittings generally incorporate an LED which readily displays the current status of the fitting. Green is normal, Flashing green indicates the fitting is being tested, flashing amber indicates the unit has a fault or has failed a test.

  • Page 5: Cabling Requirements

    Loop Wiring The Digilite® loop wiring carries both power and data to the Digilite® fittings. In order for the system to operate correctly the voltage drop along the loop must be kept within certain limits. The loop wiring must be wired from the panel terminal marked ‘LOOP1 A’ round all the fittings and reconnected at the panel terminal marked ‘LOOP1 B’.
  • Page 6 0.0004 ) ) (Equation 1) η Ω (max) Where η is the number of Digilite® fittings on the cable. Worked Example 1 The following example shows a situation where 280 fittings are required on a 1.5km loop. η = 280. Loop resistance = ( 8 / ( 280 x 0.0004 ) ) = 71...
  • Page 7 The maximum go and return cold resistance for a spur with 100 fittings may be calculated as follows. = 8 – ( 16 x 340 x 0.0004 ) spur (max) ( 100 x 0.0004 ) = 145 Ω spur (max) N93-561-85 Issue 0 © Copyright Protec Fire Detection plc 2009...

  • Page 8: Insulation Testing Of Cabling Prior To Connection

    Insulation Testing of Cabling Prior to Connection Before connecting any external cables to any field device or the Digilite®, tests must be carried out TM’ using a 500V DC insulation tester (‘Megger ). The readings between each cable core, and each core and earth should be greater than 10MΩ.
  • Page 9 Removal of the Main PCB. NOTES ON ANTI-STATIC HANDLING OF THE PCBs Before handling any of the circuit boards in the Digilite® it is vital that any operatives discharge themselves of any static charge that may have built up on them. This can be done by momentarily touching a solid earth point (a non-painted part of a radiator, for example).
  • Page 10 DO NOT SWITCH MAINS POWER ON AT THIS POINT ! Route the battery cables through to the battery compartment using the channels provided. If fitted reconnect the wire from the rear of the Digilite® main board to the interface fitted in the centre channel of the enclosure.

  • Page 11: Commissioning

    Commissioning Connecting the Loop The Digilite loop wiring must always be connected as a complete loop from the panel to each outstation, then back to the panel again. Please see figure 7.0 The loop wiring carries both power and bi-directional signalling to the Digilite outstations.

  • Page 12: Installing And Connecting The Standby Batteries

    Installing and Connecting The Standby Batteries The panel is designed to house two 12V 3.3Ah Valve Regulated Sealed Lead Acid (SLA) batteries. These fit into the left hand compartment of the Digilite® and should be secured with the Tie-wraps provided.

  • Page 13: Digilite® Technical Specification

    Humidity Limit 85% Non-Condensing Environment Meets IP30 if mounted in a dry position that does not exceed the temperature and humidity limits given Mounting 3 or 4 points surface mount N93-561-85 Issue 0 © Copyright Protec Fire Detection plc 2009...

  • Page 14: Appendix 1 Digilite® Spares List

    1.6A F battery fuse NK15-055-40 1A HRC mains fuse NK15-131-35 Red battery lead N41-791-64 Black battery lead N41-790-63 Battery inter-connection lead N41-796-44 Full spares kit N62-589-78 User Manual N93-560-84 Installation manual N93-561-85 N93-561-85 Issue 0 © Copyright Protec Fire Detection plc 2009...

  • Page 15: Appendix 2 Digilite® Main Pcb Details

    10.0 Appendix 2 Digilite® Main PCB Details The diagram below shows the Digilite® control PCB and highlights the main connections and controls. Connection to loop devices Auxiliary 24V output Global fault contacts Keypad Connection to 24V USB PC connection Power Supply Unit...
