GO Networks WLP Technical Manual page 18

Once the cable is connected, you can then operate a terminal program,
such as HyperTerminal. The PC port should be configured as follows:
Baud rate
d.
Data bits =
e.
Parity =
f.
Stop bits =
g.
Flow control
h.
To use HyperTerminal:
From the Start menu:
1. Select All Programs > Accessories > Communications >
HyperTerminal.
2. Define a new connection.
3. Right-click and select Properties. Set or verify the above values.
4. Click OK.
5. Establish the connection between the WLP and the laptop (or PC).
6. Log in using the predefined "super" user (user: super; password:
super).
The user name determines what authorization level the operator has and,
All contents are Copyright © 2006 GO Networks, Inc. All rights reserved.
= 9600
8
none
1
= None

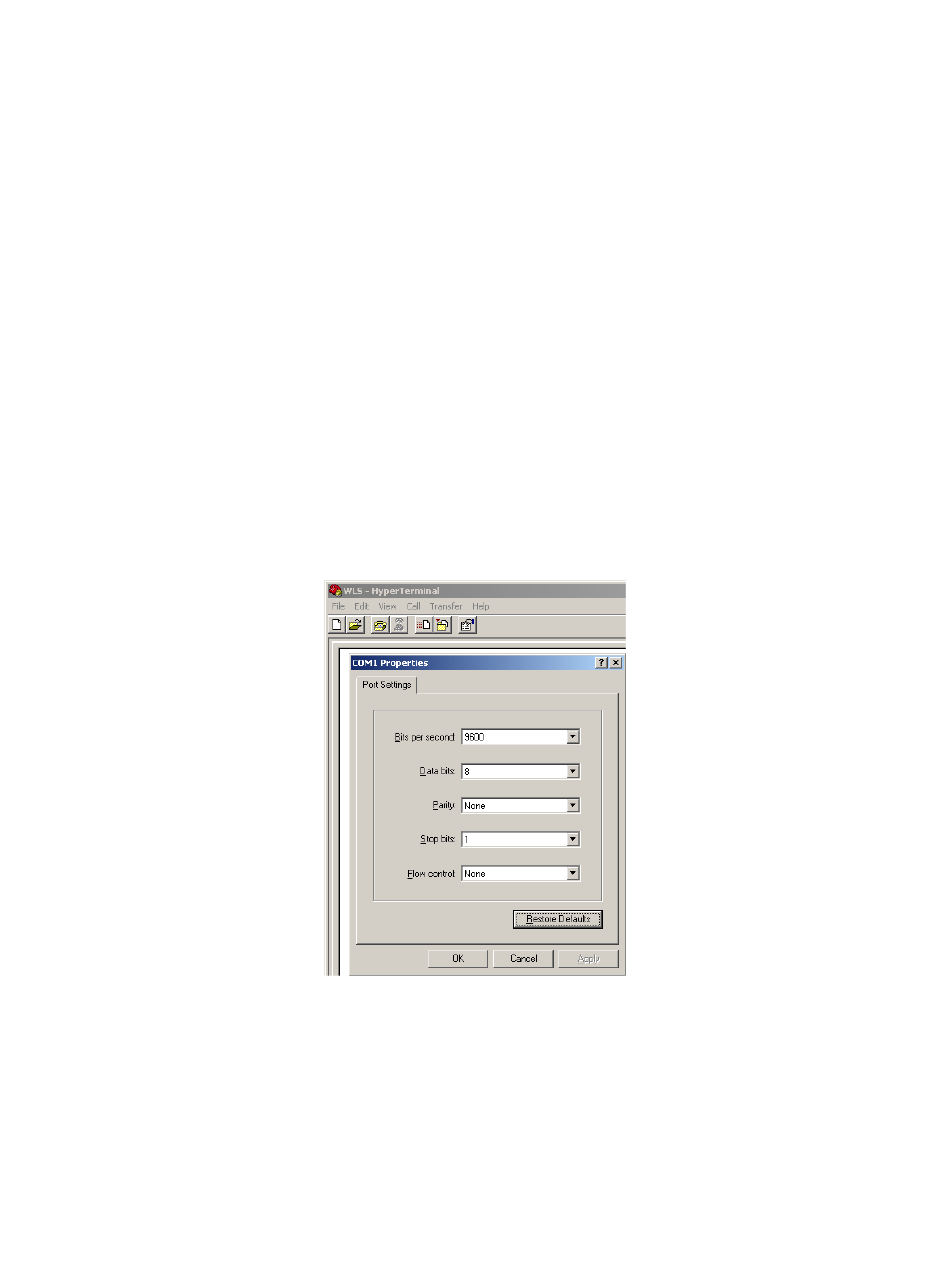

Figure 8: HyperTerminal
