Once the WLP unit is mounted, release the bolts slightly and align the WLP
unit horizontally, as seen in Figure 56. When the unit is perfectly aligned,
firmly close all bolts, applying 120 lbs-inch of tilting torque.

Mounting the Antenna

Integral N-male connectors are used to mount the antennas on top of the
WLP. The WLP holds four WiFi antennas for user access, operating on the
2.4 GHz band marked A1 to A4, and two antennas used for the mesh
networking connections, operating on the 5.8 GHz band marked B1 and
B2.
Screw all antennas into place by hand. Do not apply excessive force while
using any tools as this may damage the unit.

Cable Connections

The WLP unit connections are very simple and can be accomplished in only
a few minutes. When aligned, the WLP connecters are at the bottom of the
unit.
Cable requirements are often unique to the location and deployment
topology of each installation. As a result of this limitation, the Ethernet and
grounding cables are not included in the installation kit.
The following cables are required to install the WLP unit and should be
connected in the following order:
Grounding Cable:
1.
Provides the necessary safety functions.
Ethernet Cable (required only in units connected to the wired
2.
network):
CAT5 shielded; maximum length: up to 100 meters
All contents are Copyright © 2006 GO Networks, Inc. All rights reserved.

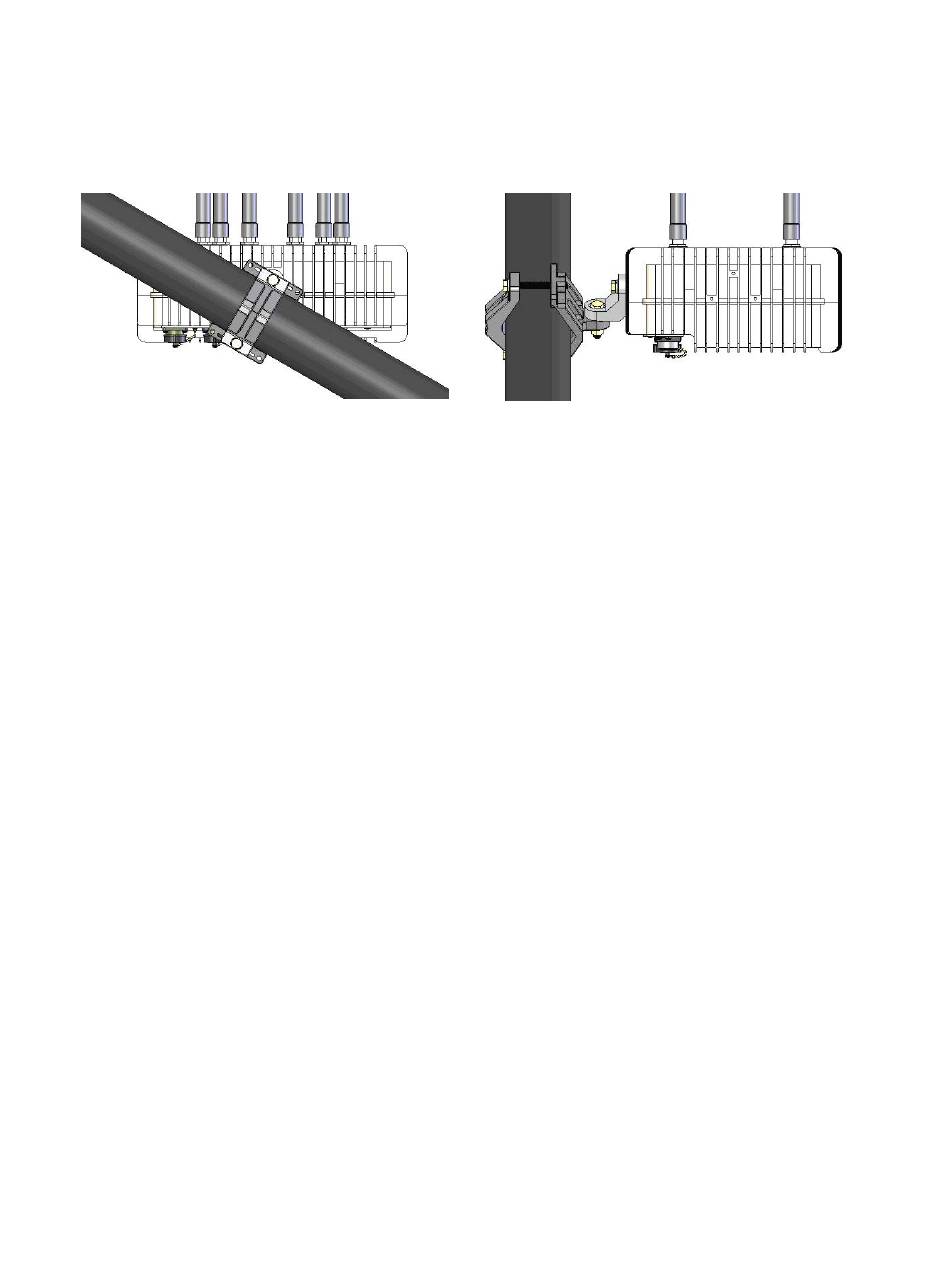

Figure 5: Aligning the WLP
