Grounding Cable
The grounding cable should be connected to the grounding screw at the
bottom of the unit. Use a 1 mm / 18 awg grounding cable.
Note:
Connect the grounding cables before connecting any other cables.
Do not remove the grounding cable when other cables are
connected.
Ethernet Connection
Ethernet connection is used for wired backhaul connection or an
interface to a third party wireless BH solution.
Power Connection
Figure 6 illustrates how the WLP unit is connected to main outlet via the
Auxiliary Power Adapter.
Figure 6: Power Connection
Release the photo-cell (also called the photo-control) installed on the pole.
Insert the Auxiliary Power Adapter instead of the photo-cell. Connect the
Auxiliary Power Adapter cable to the power connector of the WLP.
Console Connection
Figure 7 illustrates the RS-232 cable connections used to connect the WLP
to a console (notebook computer to configure the WLP).
Hardware and Connectors Installation Tools
The following tools and equipment are required to mount the WLP on a pole.

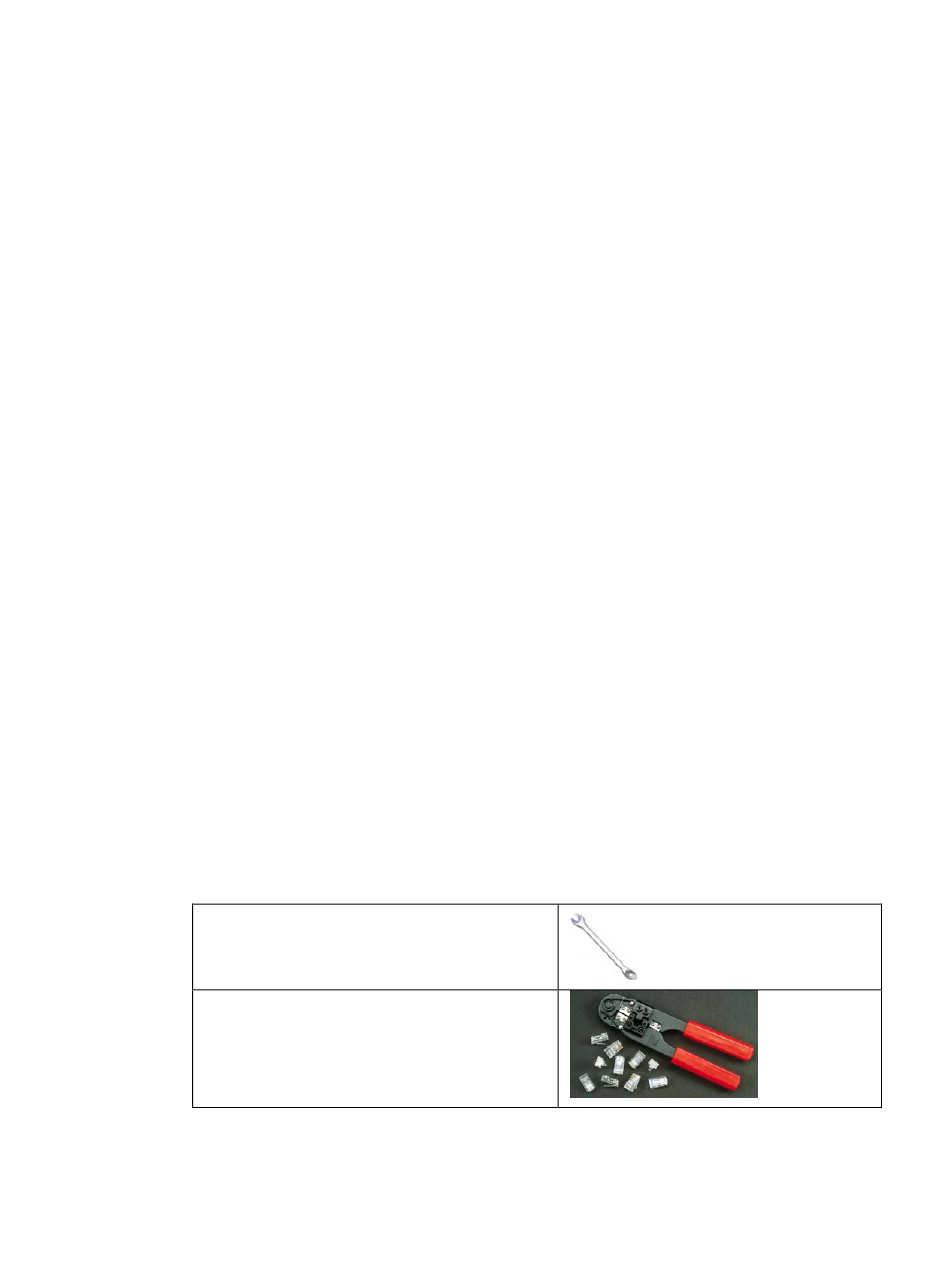

Table 3: Mounting Tools and Equipment
Ratchet (13 mm.)
RJ45 crimp tool
All contents are Copyright © 2006 GO Networks, Inc. All rights reserved.
- Page 13 of 31-
13 mm.
HT-210A
