IFM Electronic Efector 200 Operating Instructions

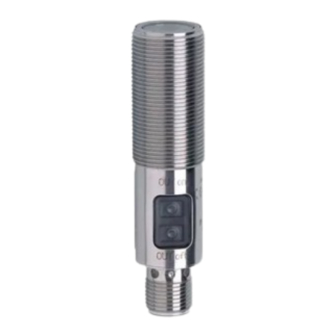

Diffuse reflection sensor with background suppression
Hide thumbs
Also See for Efector 200:
- Training manual (178 pages) ,
- Operating instructions manual (11 pages) ,
- Installation instructions (2 pages)
Related Manuals for IFM Electronic Efector 200
Summary of Contents for IFM Electronic Efector 200
- Page 1 Operating instructions Diffuse reflection sensor with background suppression OGH7xx...
-
Page 2: Symbols Used
1 Preliminary note 1.1 Symbols used ► Instruction > Reaction, result […] Designation of pushbuttons, buttons or indications → Cross-reference Important note Non-compliance can result in malfunctions or interference. 2 Safety instructions According to the cULus approval Caution - Use of controls or adjustments or procedures other than those specified herein may result in hazardous radiation exposure. -
Page 3: Electrical Connection
4 Installation 1: LED 2: programming buttons ► Align the diffuse reflection sensor to the object to be detected. ► Secure it to a bracket. Note: The objects to be detected are to move transver- sally to the lens of the sensor. ►... - Page 4 6 Settings 6.1 The sensor is to switch when the object is detected ► Position the object ► Press [OUT on] for 2 s. > The sensitivity is set to the object. > The LED flashes. ► Remove the object ►...
- Page 5 • Measured value difference too small • Max. programming time (15 min.) exceeded. 6.5 Electronic lock Lock or unlock the buttons ► Press [OUT on] and [OUT off] simultaneously for 10 s. > Acknowledgement is indicated by a change of the LED status. 7 Operation ►...
