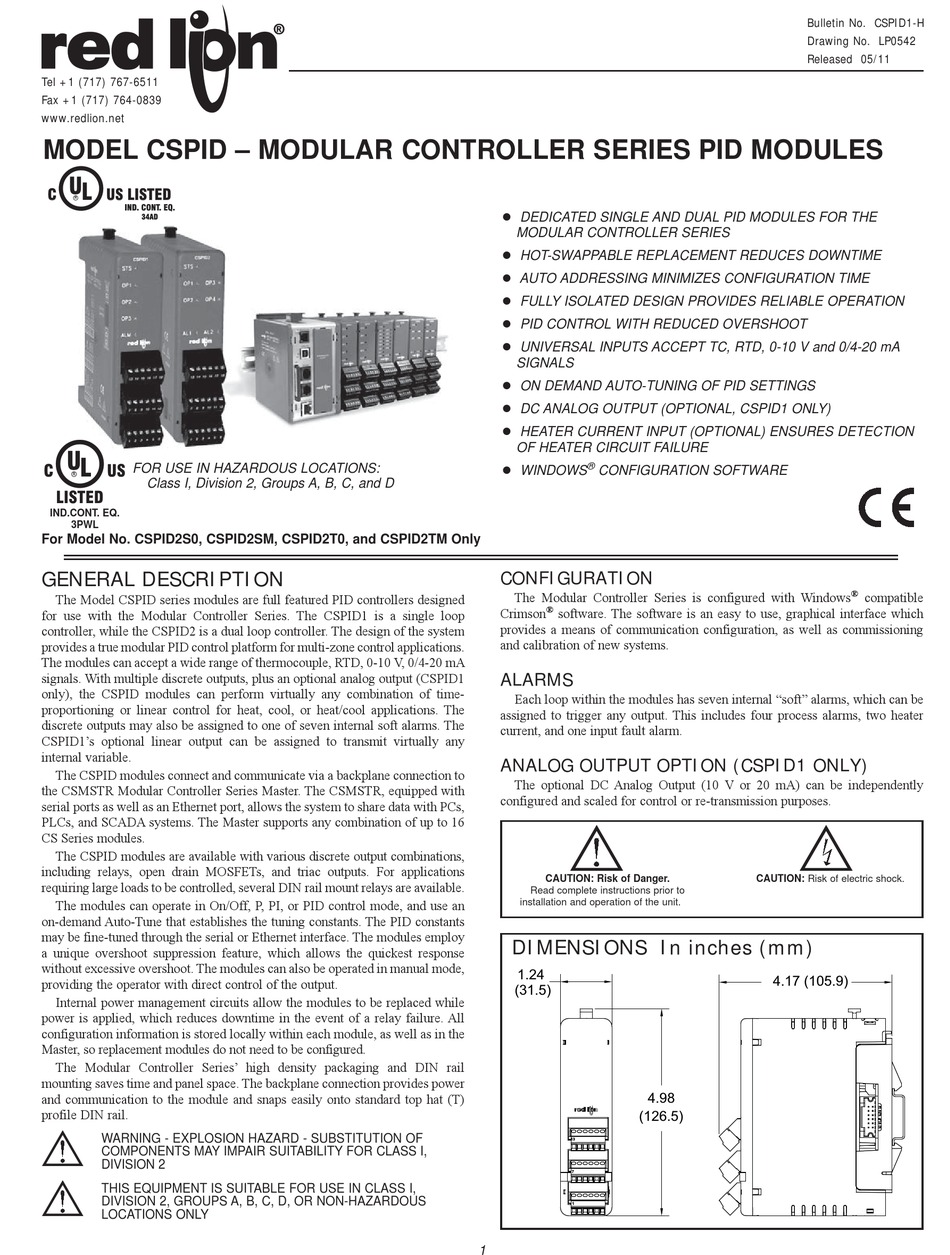

MODEL CSPID – MODULAR CONTROLLER SERIES PID MODULES
U L
C C US LISTED US LISTED
R
IND. CONT. EQ.
34AD
U L
C C US US
FOR USE IN HAZARDOUS LOCATIONS:
R
Class I, Division 2, Groups A, B, C, and D
LISTED
IND.CONT. EQ.
3PWL
For Model No. CSPID2S0, CSPID2SM, CSPID2T0, and CSPID2TM Only
GENERAL DESCRIPTION

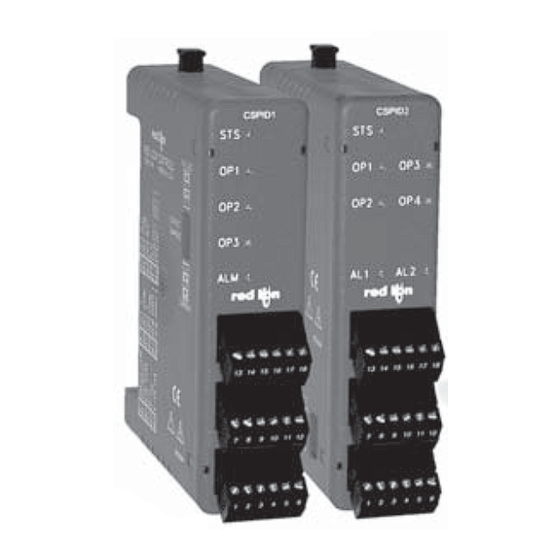

The Model CSPID series modules are full featured PID controllers designed
for use with the Modular Controller Series. The CSPID1 is a single loop
controller, while the CSPID2 is a dual loop controller. The design of the system
provides a true modular PID control platform for multi-zone control applications.
The modules can accept a wide range of thermocouple, RTD, 0-10 V, 0/4-20 mA
signals. With multiple discrete outputs, plus an optional analog output (CSPID1
only), the CSPID modules can perform virtually any combination of time-
proportioning or linear control for heat, cool, or heat/cool applications. The
discrete outputs may also be assigned to one of seven internal soft alarms. The
CSPID1's optional linear output can be assigned to transmit virtually any
internal variable.
The CSPID modules connect and communicate via a backplane connection to
the CSMSTR Modular Controller Series Master. The CSMSTR, equipped with
serial ports as well as an Ethernet port, allows the system to share data with PCs,
PLCs, and SCADA systems. The Master supports any combination of up to 16
CS Series modules.
The CSPID modules are available with various discrete output combinations,
including relays, open drain MOSFETs, and triac outputs. For applications
requiring large loads to be controlled, several DIN rail mount relays are available.
The modules can operate in On/Off, P, PI, or PID control mode, and use an
on-demand Auto-Tune that establishes the tuning constants. The PID constants
may be fine-tuned through the serial or Ethernet interface. The modules employ
a unique overshoot suppression feature, which allows the quickest response
without excessive overshoot. The modules can also be operated in manual mode,
providing the operator with direct control of the output.
Internal power management circuits allow the modules to be replaced while
power is applied, which reduces downtime in the event of a relay failure. All
configuration information is stored locally within each module, as well as in the
Master, so replacement modules do not need to be configured.
The Modular Controller Series' high density packaging and DIN rail
mounting saves time and panel space. The backplane connection provides power
and communication to the module and snaps easily onto standard top hat (T)
profile DIN rail.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2
THIS EQUIPMENT IS SUITABLE FOR USE IN CLASS I,
DIVISION 2, GROUPS A, B, C, D, OR NON-HAZARDOUS
LOCATIONS ONLY
 DEDICATED SINGLE AND DUAL PID MODULES FOR THE
MODULAR CONTROLLER SERIES
 HOT-SWAPPABLE REPLACEMENT REDUCES DOWNTIME
 AUTO ADDRESSING MINIMIZES CONFIGURATION TIME
 FULLY ISOLATED DESIGN PROVIDES RELIABLE OPERATION
 PID CONTROL WITH REDUCED OVERSHOOT
 UNIVERSAL INPUTS ACCEPT TC, RTD, 0-10 V and 0/4-20 mA
SIGNALS
 ON DEMAND AUTO-TUNING OF PID SETTINGS
 DC ANALOG OUTPUT (OPTIONAL, CSPID1 ONLY)
 HEATER CURRENT INPUT (OPTIONAL) ENSURES DETECTION
OF HEATER CIRCUIT FAILURE
 WINDOWS ®
CONFIGURATION SOFTWARE
CONFIGURATION
The Modular Controller Series is configured with Windows
®
Crimson software. The software is an easy to use, graphical interface which
provides a means of communication configuration, as well as commissioning
and calibration of new systems.
ALARMS
Each loop within the modules has seven internal "soft" alarms, which can be
assigned to trigger any output. This includes four process alarms, two heater
current, and one input fault alarm.
ANALOG OUTPUT OPTION (CSPID1 ONLY)
The optional DC Analog Output (10 V or 20 mA) can be independently
configured and scaled for control or re-transmission purposes.
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
DIMENSIONS In inches (mm)
1.24
(31.5)
4.98
(126.5)
13
7
1
1
Bulletin No. CSPID1-H
Drawing No. LP0542
Released 05/11
®
compatible
CAUTION: Risk of electric shock.
4.17 (105.9)
