MODEL GMUIN4 - GRAPHITE SERIES UNIVERSAL
GENERAL DESCRIPTION

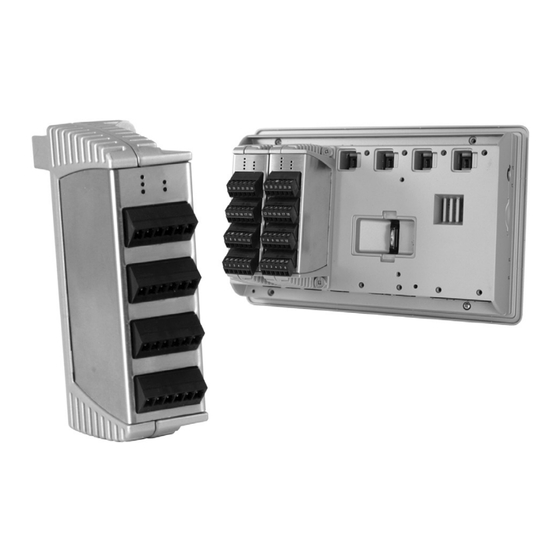

The model GMUIN4 is a 16-bit analog input module designed for use with the
Graphite Series. The module provides 4 isolated universal analog inputs as a
means of signal measurement for data-acquisition. The GMUIN4 accepts a wide
range of thermocouples and RTDs, as well as 0/4-20 mA and 0-10 V process
signals. The modules connect and communicate via proprietary USB connection
to the various Graphite devices. The Graphite devices, equipped with serial ports
as well as an Ethernet port(s), allows the system to share data with PCs, PLCs, and
SCADA systems. The maximum number of modules varies for each Graphite
device, see specific models for details.
Once programmed, the module will continue to operate independent of the
Graphite device as long as power is applied. Remove power from the host device
before installing or replacing any modules.
CONFIGURATION
The Graphite Series is configured with Windows
software. The software is an easy to use, graphical interface which provides a
means of configuration and commissioning of new systems, as well as routine
module re-calibration.
DIMENSIONS In inches (mm)
2.97 (76)
4.65
(118)
 DEDICATED 4 UNIVERSAL INPUT MODULE FOR THE
 ACCEPTS THERMOCOUPLES, RTDs, 0/4-20 mA AND 0-10 V
 OFFERS COMPLETE ISOLATION; INPUTS, POWER AND CORE
 IDEAL FOR DATA-ACQUISITION APPLICATIONS
 CAN BE USED IN CONJUNCTION WITH ANY GRAPHITE
SAFETY SUMMARY
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
not equipped with safeguards. To do so can be potentially harmful to persons or
equipment in the event of a fault to the module. An independent and redundant
temperature limit indicator with alarm outputs is strongly recommended.
® ®
compatible Crimson
SPECIFICATIONS
1. POWER: Power will be supplied by the Graphite host device.
2. LEDs:
1.25 (32)
3. MEMORY: Non-volatile memory retains all programmable parameters.
4. ISOLATION LEVEL: 500 Vrms @ 50/60 Hz for 1 minute between each
5. COMMUNICATIONS: Provided by the Graphite host device
6. INPUTS
7. THERMOCOUPLE INPUTS:
1
INPUT MODULE
GRAPHITE SERIES
SIGNAL INPUTS
MODULES
All safety related regulations, local codes and instructions that appear in the
Do not use the module to directly command motors, valves, or other actuators
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
STS - Status LED shows module condition.
AL1, AL2, AL3, AL4 - Alarm LEDS are lit during any input alarm
condition.
Signal Input and the host Power Supply Input.
Effective Resolution: Full 16-bit
Sample Time: 50 msec
Common Mode Rejection: >110 dB, 50/60 Hz
Normal Mode Rejection: >50 dB, 50/60 Hz
Temperature Coefficient: 0.01%/°C
Step Response Time: 100 msec typ., 200 msec max.
Types: T, E, J, K, R, S, B, N, C
Slope & Offset: Provides sensor error correction
Input Impedance: 20 M Ω
Lead Resistance Effect: 0.25 µV/Ω
Bulletin No. GMUIN4-A
Drawing No. LP0923
Effective 07/13
CAUTION: Risk of electric shock.
