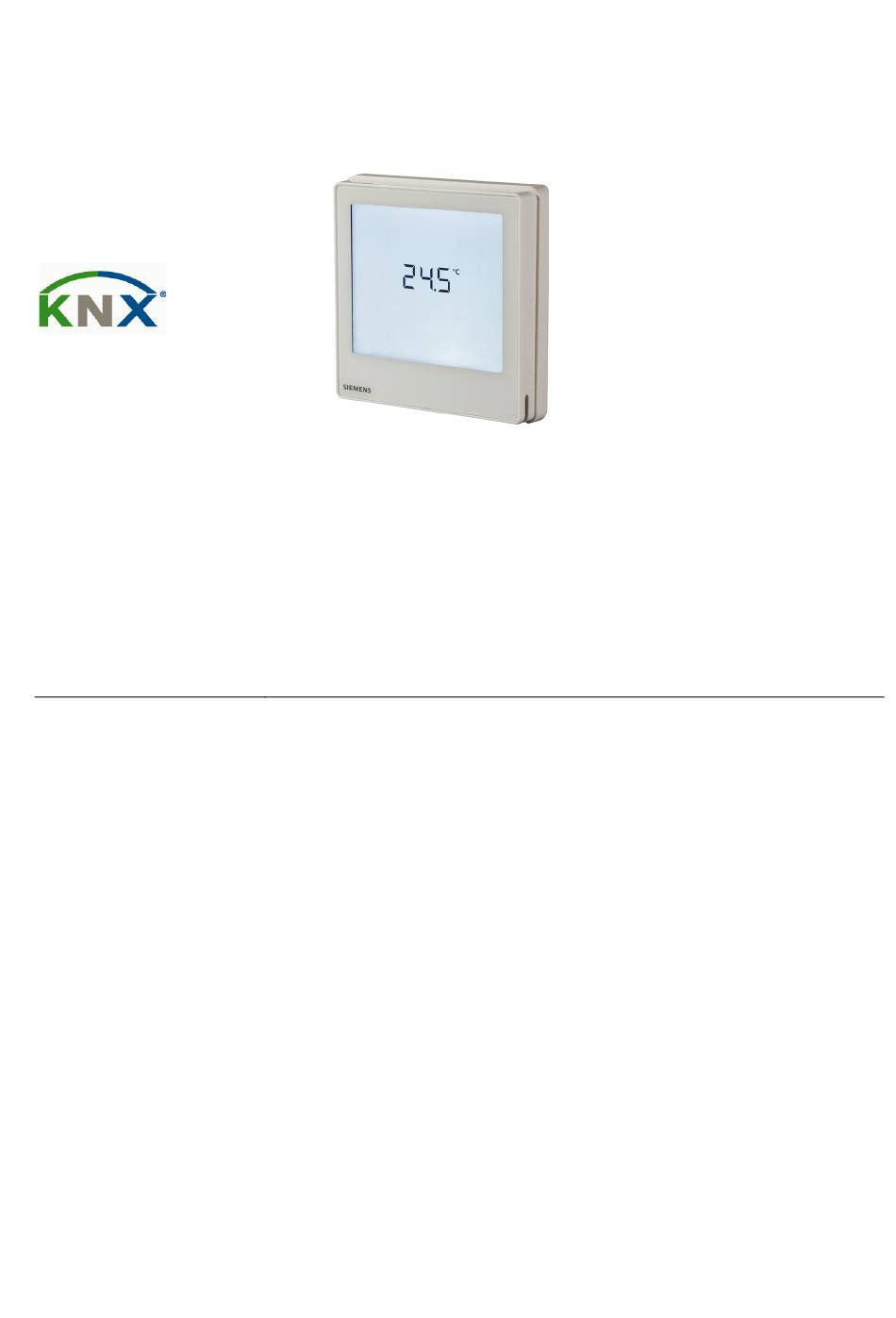

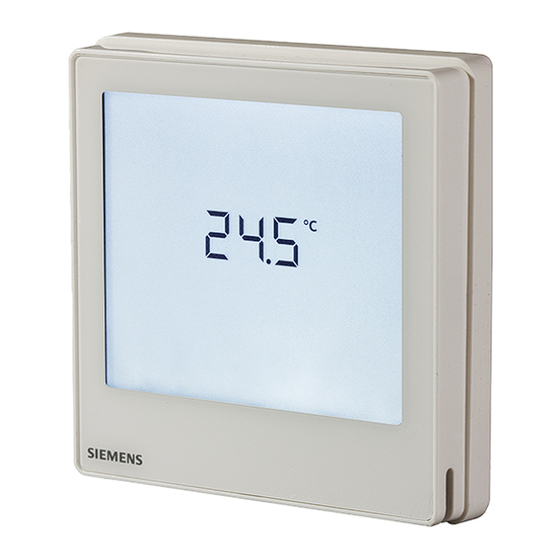

Touch Screen Flush-mount Room
Thermostats with KNX
Communications
For 2-pipe, 2-pipe with electrical heater, and 4-pipe fan coil units
For universal applications
For use with compressors in DX type equipment
CB1N3174en
2014-09-10
• KNX bus communications (S-mode and LTE mode)
• Large display with backlight
• 2P / PI / P control
• Outputs for ON/OFF or 3-position control
• Outputs for 3-speed or 1-speed fan
• 2 multifunctional inputs for keycard contact, external sensor, etc.
• Independent function for window contact and presence detector
• Operating modes: Comfort, Economy and Protection
• Automatic or manual fan speed control
• Automatic or manual heating / cooling changeover
• Minimum and maximum limitation of room temperature setpoint
• Control depending on the room or the return air temperature
• Adjustable commissioning and control parameters
• Commissioning with Synco ACS, ETS4 or via local HMI
• Interoperation into Synco 700
• Integration into Desigo via group (ETS4) or via individual addressing
• Integration into third-party system via group addressing (ETS4)
• AC 230 V operating voltage
• RDF800KN: Mounting on round box, with min 60 mm diameter or recessed
square 86 mm box with 60.3 mm fixing centers and min 40 mm depth
• RDF800KN/NF: Mounting on recessed square 86 mm box with 60.3 mm
fixing centers and min 40 mm depth, requires additional mounting frame
3
RDF800KN
RDF800KN/NF
Building Technologies
174
Advertisement
Table of Contents
Related Manuals for Siemens RDF800KN
Summary of Contents for Siemens RDF800KN
- Page 1 • Integration into third-party system via group addressing (ETS4) • AC 230 V operating voltage • RDF800KN: Mounting on round box, with min 60 mm diameter or recessed square 86 mm box with 60.3 mm fixing centers and min 40 mm depth •...
- Page 2 • Chilled ceiling and radiator / under floor heating • Compressors in DX-type equipment • Compressors in DX-type equipment with electrical heater The RDF800KN... controls: • One single or 3-speed fan • One or two ON/OFF valve actuators • One ON/OFF valve actuator and one 1-stage electrical heater •...
- Page 3 All DIP switches need to be set to OFF (factory setting) to select an application via Remote configuration commissioning tool. Remote configuration, via commissioning tool (factory DIP switches setting) • Synco ACS • ETS4 3 / 20 Siemens RDF800KN… CB1N3174en Building Technologies Touch Screen Flush-mount Room Thermostats with KNX Communications 2014-09-10...
- Page 4 B1 Return air temperature sensor or external room temperature sensor (optional) V2 Cooling valve actuator B2 Changeover sensor (optional) E1 Electric heater M1 3- or 1-speed fan 4 / 20 Siemens RDF800KN… CB1N3174en Building Technologies Touch Screen Flush-mount Room Thermostats with KNX Communications 2014-09-10...
- Page 5 B1 Return air temperature sensor or external room temperature sensor (optional) V2 Cooling valve actuator B2 Changeover sensor (optional) E1 Electric heater D3 Dewpoint sensor 5 / 20 Siemens RDF800KN… CB1N3174en Building Technologies Touch Screen Flush-mount Room Thermostats with KNX Communications 2014-09-10...
- Page 6 B1 Return air temperature sensor or external room Terminal Y1: Heating (H&C) or Heating/Cooling temperature sensor (optional) Terminal Y2: Cooling (H&C) E1 Electric heater D3 Dewpoint sensor 6 / 20 Siemens RDF800KN… CB1N3174en Building Technologies Touch Screen Flush-mount Room Thermostats with KNX Communications 2014-09-10...
-
Page 7: Equipment Combinations
Ordering • When ordering, indicate the product number, SSN and name. For example: RDF800KN/NF (S55770-T335) room thermostat RDF800KN (S55770-T350) room thermostat • A mounting frame must be ordered for RDF800KN/NF installation (See “Accessories”). • Order valve actuators separately. Equipment combinations Type of unit Product no. - Page 8 Changeover mounting kit ARG86.3 N3009 (50 pcs / package) Plastic mounting spacer for flush ARG70.3 N3009 mounted thermostats RDF800KN for increasing the headroom in the conduit box by 10mm ARG71 / Conduit box for RDF800KN N3009 S55770-T137 Single mounting frame , Ivory White ARG800.1 /...
-
Page 9: Operation And Settings
• Mounting base with power electronics. • Mounting frame is an additional part to complete the installation for RDF800KN/NF. The rear of the mounting base contains the screw terminals. Slide the front panel in the mounting base and snap on. -
Page 10: Engineering Notes
• Mount the room thermostat on a clean, dry indoor place without direct airflow from a heating / cooling device, and not expose to drips or splashes water. • For RDF800KN only, in case of limited space in the conduit box, use the mounting spacer ARG70.3 to increase the headroom by 10mm. -
Page 11: Commissioning Notes
4: Time of day (24h) via bus Fan Stage in 0: Fan OFF Deadzone 1: Fan speed 1 Heat / Cool (Comfort mode) 2: Fan speed 1 Cool only 11 / 20 Siemens RDF800KN… CB1N3174en Building Technologies Touch Screen Flush-mount Room Thermostats with KNX Communications 2014-09-10... - Page 12 RS232 KNX interface (such as Siemens N148 / UP146 / UP152) − OCI700 USB - KNX interface − An external KNX bus power supply is required if an RDF800KN... is connected Note: directly to a tool (ACS or ETS4) via KNX interface. 12 / 20 Siemens RDF800KN…...
-
Page 13: Control Parameters
Dispose of the device via the channels provided for this purpose. • Comply with all local and currently applicable laws and regulations. • 13 / 20 Siemens RDF800KN… CB1N3174en Building Technologies Touch Screen Flush-mount Room Thermostats with KNX Communications 2014-09-10... - Page 14 Multifunctional input X1/X2 Selectable 0...8, 10 Input X1 default value (P38) 3 (Window contact) Input X2 default value (P40) 1 (External temperature sensor) 14 / 20 Siemens RDF800KN… CB1N3174en Building Technologies Touch Screen Flush-mount Room Thermostats with KNX Communications 2014-09-10...
- Page 15 L, N, Q1, Q2, Q3, Y1, Y2 Housing front color Ivory White Weight without / with packaging 0.155 kg / 0.255 kg The documents can be downloaded from http://siemens.com/bt/download. Reference Handbook for Home and Building Control - Basic Principles documentation (http://www.knx.org/knx-en/training/books-documentation/knx-association-books/index.php)
-
Page 16: Connection Terminals
(function can be selected via parameter P38 / P40) Measuring neutral for sensor and switch KNX data + KNX data - Connection diagrams Application 10 A Room thermostat RDF800KN... 1- or 3-speed fan Valve actuator, 2- or 3-position V1, V2 Valve actuator, 2-position CE+ CE- Electric heater... - Page 17 Dimensions (mm) RDF800KN/NF for square conduit boxes only 17 / 20 Siemens RDF800KN… CB1N3174en Building Technologies Touch Screen Flush-mount Room Thermostats with KNX Communications 2014-09-10...
- Page 18 RDF800KN for round conduit boxes 18 / 20 Siemens RDF800KN… CB1N3174en Building Technologies Touch Screen Flush-mount Room Thermostats with KNX Communications 2014-09-10...
- Page 19 ARG800.1 single mounting frame for RDF800KN/NF 19 / 20 Siemens RDF800KN… CB1N3174en Building Technologies Touch Screen Flush-mount Room Thermostats with KNX Communications 2014-09-10...
- Page 20 20 / 20 2014 Siemens Switzerland Ltd Subject to change Siemens RDF800KN… CB1N3174en Building Technologies Touch Screen Flush-mount Room Thermostats with KNX Communications 2014-09-10...
