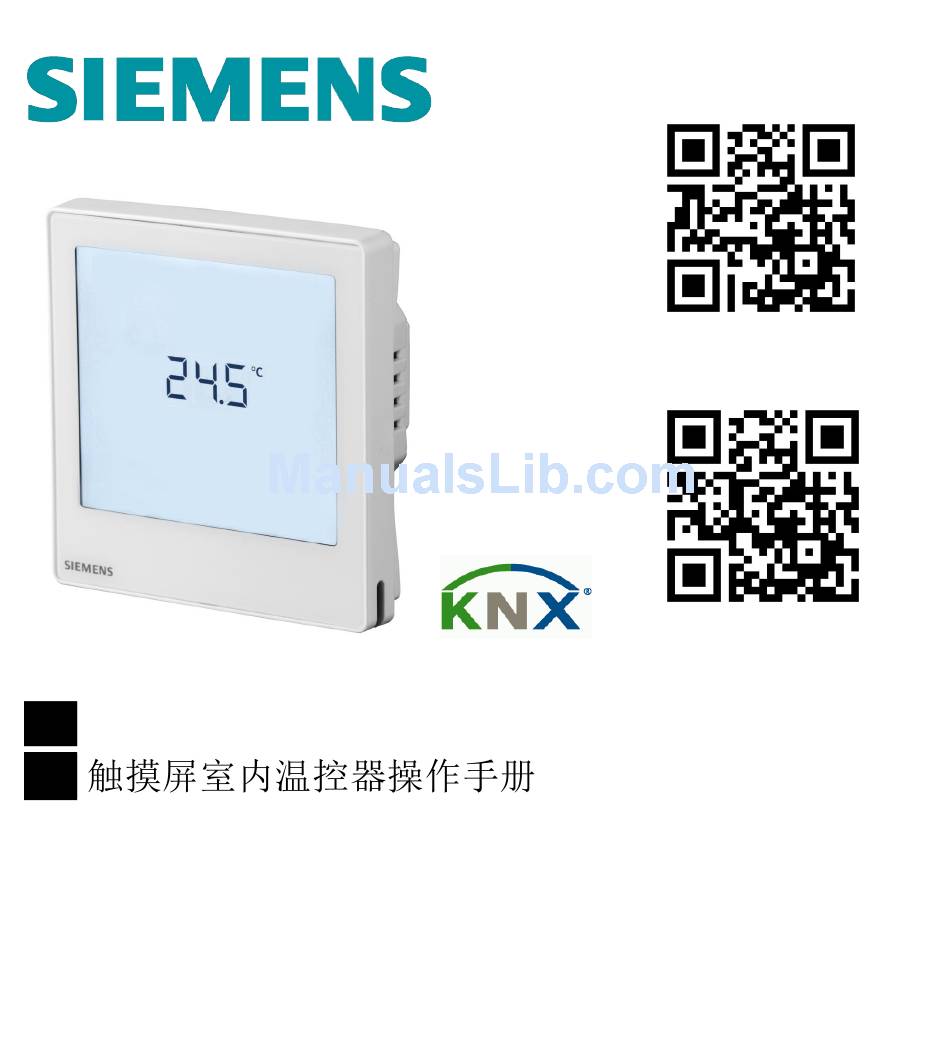

- Page 1 RDF800… RDD810… Touch Room Thermostats Operating Instructions CE1B3174.1xx, V1.0...
- Page 2 BLANK PAGE CE1B3174.1xx, V1.0...
- Page 3 ADJUSTMENT for temperature setpoint, fan speed, operating modes and settings (for example, Alarm, INFO, etc.) TERMINALS REFERENCE DESCRIPTIONS PAGES RDD810 RDF800 L, N L, N AC 230 V Power Supply Mains & Neutral Y1, Y2 Relay Outputs 1 & 2 Q1, Q2, Q3 Low, Medium &...
- Page 4 STATUS SYMBOLS: KEY LOCK MANUAL OVERRIDE ALARM / SERVICE REMINDER COOLING ACTIVE SCHEDULER via bus HEATING ACTIVE FAN ACTIVE AUXILIARY HEAT ACTIVE SELECTION SYMBOLS: INDOOR TEMPERATURE COMFORT MODE OUTDOOR TEMPERATURE ECONOMY MODE RELATIVE HUMIDITY PROTECTION MODE OPERATIONAL ICONS: INCREMENT, DECREMENT OR SELECTION SELECTION OR MOVE TO NEXT ITEMS TEMPERATURE, RELATIVE HUMIDITY OR PARAMETER VALUES, ETC.
-
Page 5: Commissioning: Download Via Ets
COMMISSIONING: Download via ETS 1. Dipswitch setting 2. First power up “ NONE ” means that no All in OFF positions application being downloaded or selected before 3. Touch & hold this 4. Ready for downloading icon > 5 s to enter address &... -
Page 6: Commissioning: Local Via Dip Switches
COMMISSIONING: Local via Dip Switches 1. Set application via 2. First power up dipswitches Unit shows selected application Refer to table below for details. Refer to 3. Configure basic Display Applications control parameters 2-PIPE via Wizard 2-PIPE with 2PEH ELECTRIC HEATER See Configure Parameters 4-PIPE via Wizard on next page... -
Page 7: Configure Parameters Via Wizard
CONFIGURE PARAMETERS via WIZARD to advance/return to any parameter to select any desired available values* P01: CONTROL SEQUENCE P02: USER OPERATING MODE P04: SELECTION OF C OR F P06: STANDARD DISPLAY P07: DISPLAY INFO LINE CE1B3174.1xx, V1.0... - Page 8 P15: FAN STAGE IN DEADZONE (COMFORT MODE) P38: FUNCTIONALITY OF P39: OPERATING ACTION OF X1 AS DIGITAL INPUTS P40: FUNCTIONALITY OF P41: OPERATING ACTION OF X2 AS DIGITAL INPUTS END OF WIZARD SETUP * Refer to for the parameter values & meanings CE1B3174.1xx, V1.0...
- Page 9 SCREEN SAVER / SELECTION SCREEN 1. Screen saver 3. Selection screen Comfort Mode 2. Touch digits / screen Economy Mode IF UNIT in PROTECTION MODE 1. Screen saver 3. Unit being turned ON 2. Touch digits / screen 4. Setpoint mode CE1B3174.1xx, V1.0...
-
Page 10: Change Room Temperature Setpoint
CHANGE ROOM TEMPERATURE SETPOINT 1. Touch icon 2. Press to adjust: ADJUST FAN MODE / FAN SPEED 1. Touch icon 2. Press to adjust: : Auto : Low : Medium : High CE1B3174.1xx, V1.0... -
Page 11: Change Operating Modes
CHANGE OPERATING MODES 1. Touch icon 2. Press to select: Comfort Economy Protection SELECT ADDITIONAL INFO 1. Touch Icon 2. Press to adjust: Indoor Temperature Outdoor Temperature Relative Icons will be shown Humidity if info is available CE1B3174.1xx, V1.0... - Page 12 MANUAL HEAT/COOL CHANGEOVER (P01=2) 1. Touch icon 2. Press to change Heating Mode Cooling Mode PARAMETER MODE ACCESS 1. Touch icon 2. Enter first password via & hold > 5 s PAS: Password Factory: 3. Enter second password via CE1B3174.1xx, V1.0...
- Page 13 4. After 3 seconds Note: Press the Setting icon to EXIT or re-enter the password if not : Fail to Login correct : Successful Login 5. Editing parameters VALUE of current selected parameter DECREMENT INCREMENT PREVIOUS NEXT available value available value PREVIOUS current selected NEXT...
-
Page 14: User Level Control Parameters
User Level Control Parameters FUNCTION RANGE FACTORY DESCRIPTIONS SETTINGS P01 Control Sequence 0: Heating only (RDF800… only) 1: Cooling only 2-pipe = 1 2: Manual changeover 4-pipe = 4 3: Auto changeover 4: Heating and Cooling P02 User Operating Mode 1: COMF >... -
Page 15: Installer Level Control Parameters
P13 Electric Heater in ON: Enabled Cooling Mode OFF: Disabled (RDF800… only) P14 Keylock Function 0: Unlock 1: Total lock 2: Setpoint P15 Fan Stage in Deadzone 0: Fan OFF (Comfort Mode) 1: Fan speed 1 Heat / Cool (RDF800… only) - Page 16 ALARMS & SERVICE REMINDERS (IF ANY) 1. Touch icon 2. Press to view Bus Power Supply Ext. Alarms 1 & 2 Clean Filter PRIORITY ALARM/SERVICE DISPLAY ERROR CODE TYPE Bus Power Supply 5000 Fault Device Address Error 6001 Condensation 4930 Ext Fault Input 1 9001 Ext Fault Input 2...
- Page 17 BLANK PAGE CE1B3174.1xx, V1.0...
- Page 18 BLANK PAGE CE1B3174.1xx, V1.0...
- Page 19 RDD810 RDF800 L, N AC 230 V L, N Y1, Y2 Q1, Q2, Q3 (NC) (NO) X1, X2 X1, X2 – CE+, CE- CE+, CE- CE1B3174.1xx, V1.0...
- Page 20 (12 / 24 CE1B3174.1xx, V1.0...
- Page 21 NONE “ON CE1B3174.1xx, V1.0...
- Page 22 2PEH 2P3P RDD810KN CE1B3174.1xx, V1.0...
- Page 23 CE1B3174.1xx, V1.0...
- Page 24 P38 X1 P39 X1 P40 X2 P41 X2 CE1B3174.1xx, V1.0...
- Page 25 CE1B3174.1xx, V1.0...
- Page 26 CE1B3174.1xx, V1.0...
- Page 27 CE1B3174.1xx, V1.0...
- Page 28 (P01=2) CE1B3174.1xx, V1.0...
- Page 29 4. 3 CE1B3174.1xx, V1.0...
- Page 30 RDF800… > > > P04 C -3…3 K 0: --- 5…40 C 21 C 5…40 C 5…40 C 35 C OFF 5...WcoolEco 15 °C WcoolEco = 40°C max OFF WheatEco...40°C 30 °C RDF800…) WheatEco = 5°C min CE1B3174.1xx, V1.0...
- Page 31 RDF800…) RDF800… 0 --- X1 = 3 X2 = 1 RDF800… RDD810… X1, X2 P39:X1=NO P41:X2=NO OFF: CE1B3174.1xx, V1.0...
- Page 32 5000 6001 4930 9001 9002 3911 + / - CE1B3174.1xx, V1.0...
- Page 33 BLANK PAGE CE1B3174.1xx, V1.0...
- Page 34 BLANK PAGE CE1B3174.1xx, V1.0...
- Page 35 RDD810… Heating Riscaldamento Calefacción Heizung Isitma Chauffage CE1B3174.1xx, V1.0...
- Page 36 RDF800… 2-pipe, 3 position output 2-tubi, uscita 3-punti 2-tubos, salida a 3 puntos 2-Rohr, 3-Punkt-Ausgang 2-borulu, 3-konumlu çikis 2 tubes, sortie 3pts OFF ON OFF CE1B3174.1xx, V1.0...
- Page 37 RDF800… 4-pipe fan coil Fan coil 4 tubi Fancoil a 4 tubos 4-Rohr Ventilator-konvektor 4 borulu fan coil Ventiloconvecteur 4 tubes OFF OFF ON CE1B3174.1xx, V1.0...
- Page 38 RDF800… 2-pipe & el. heater 2 tubi con batteria elettrica 2 tubos & batería eléctrica 2-Rohr & Elektroheizer 2 borulu & elk. Is 2 tubes & batterie électrique ON ON OFF CE1B3174.1xx, V1.0...
- Page 39 RDF800… 2-pipe fan coil Fan coil 2 tubi Fancoil a dos tubos 2-Rohr Ventilator-konvektor 2 borulu fan coil Ventiloconvecteur 2 tubes ON OFF OFF CE1B3174.1xx, V1.0...
- Page 40 P40 = 1 P38 = 3 CE1B3174.1xx, V1.0...
- Page 41 RDF800KN/NF, RDD810KN/NF CE1B3174.1xx, V1.0...
- Page 42 RDF800KN CE1B3174.1xx, V1.0...
- Page 43 BLANK PAGE CE1B3174.1xx, V1.0...
- Page 44 RDF800… RDD810… Touch Room Thermostats Installation Instructions Installationsanleitung Instructions d’installation Istruzioni di montaggio Instrucciones de montaje Kurulum talimatlari CE1B3174.1xx, V1.0...
