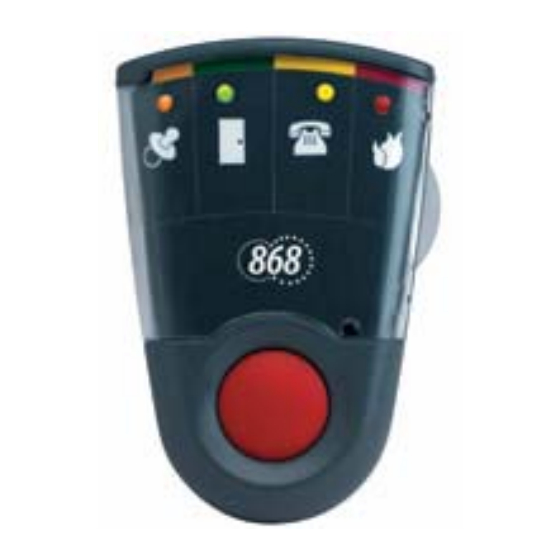

Bellman Visit 868 Pager, BE1470
Bellman Visit 868 Pager, BE1470 (GB)
Thank you for choosing products from Bellman & Symfon.
The Bellman Visit 868 System consists of a number of radio transmitters and receivers. The transmitters
detect different events in the surrounding area and transmit a radio signal to the receivers. The receivers
pick up this signal and provide indications using light, sound and/or vibration.
The transmitter determines what type of light, sound or vibration should be displayed so that the reason for
the indication is evident.
Read through the entire user manual first and then start to install the system.
Refer to the illustration of the Bellman Visit 868 System on the inside of the cover.

Getting started

Unpacking, installing and testing the unit
1. Open the battery cover (7). Fit one battery, either an AAA or rechargeable AAA type battery and close the battery cover.
2. A Bellman Visit 868 transmitter is required to test the radio reception. Press the test button on the Bellman Visit 868
Transmitter. The Bellman Visit 868 Pager will emit a light signal and will vibrate.
3. Use the clip to attach the Bellman Visit 868 Pager to an article of clothing close to the body (9). For extra security, the
enclosed safety cord can be tied into the hole on the clip and secured to an article of clothing.
When using rechargeable NiMh-batteries, the Bellman Visit 868 Pager can also be connected to the BE1260 Bellman Visit
Charger (separate product). This charges the unit and allows up to two BE1270 Bellman Bed-shakers (accessory) to be
connected via the charger. Charging of the BE1260 Bellman Visit Charger (separate product) is controlled by the pager and
takes up to 8 hours. During charging the LED on the charger will light up green but go out when charging is finished. If the
Pager remains in the charger after charging is finished, the LED on the charger will blink green now and then to indicate that
the battery is being trickle charged.
Please note! WHEN USING the Bellman Visit Charger ONLY USE RECHARGEABLE NiMH BATTERIES.
Non-rechargeable batteries will start to leak if re-charged! The acid in the batteries will damage the electronics in the Bellman
Visit 868 Pager, BE1470 and the resulting damage will not be covered by any guarantee.

Function

General
The BE1470 Bellman Visit 868 Pager is a receiver within the Bellman Visit 868 system for indoor use, which attracts the
attention of the user using light and vibrations.
It is activated via radio signals from any transmitter within the Bellman Visit 868 System.
When using rechargeable NiMh batteries, the Bellman Visit 868 Pager can be connected to the BE1260 Bellman Visit
Charger (separate product) to which two BE1270 Bellman Bed-shakers (accessory) can also be connected. This combination
makes for better economy due to the rechargeable battery and better functionality due to the alarm call options with the Bed
Shaker.
