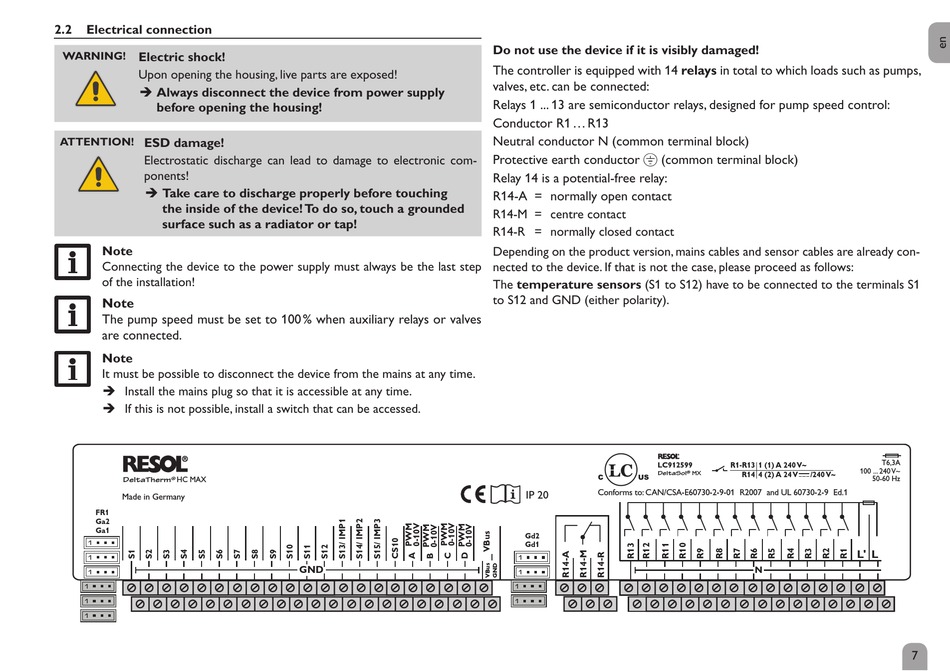

2.2

Electrical connection

WARNING! Electric shock!
Upon opening the housing, live parts are exposed!
Î Always disconnect the device from power supply
before opening the housing!
ATTENTION! ESD damage!
Electrostatic discharge can lead to damage to electronic com-
ponents!
Î Take care to discharge properly before touching
the inside of the device! To do so, touch a grounded
surface such as a radiator or tap!
Note
Connecting the device to the power supply must always be the last step
of the installation!
Note
The pump speed must be set to 100 % when auxiliary relays or valves
are connected.
Note
It must be possible to disconnect the device from the mains at any time.
Î Install the mains plug so that it is accessible at any time.
Î If this is not possible, install a switch that can be accessed.
DeltaTherm ® HC MAX
Made in Germany
FR1
Ga2
Ga1
GND
Do not use the device if it is visibly damaged!
The controller is equipped with 14 relays in total to which loads such as pumps,
valves, etc. can be connected:
Relays 1 ... 13 are semiconductor relays, designed for pump speed control:
Conductor R1 ... R13
Neutral conductor N (common terminal block)
Protective earth conductor ⏚ (common terminal block)
Relay 14 is a potential-free relay:
R14-A = normally open contact
R14-M = centre contact
R14-R = normally closed contact
Depending on the product version, mains cables and sensor cables are already con-
nected to the device. If that is not the case, please proceed as follows:
The temperature sensors (S1 to S12) have to be connected to the terminals S1
to S12 and GND (either polarity).
DeltaSol
IP 20
Gd2
Gd1
R1-R13 1 (1) A 240 V~
100 ... 240 V~
® MX
R14 4 (2) A 24 V /240 V~
L' L
N
T6,3A
50-60 Hz
